MR-8HD/CD Owner’s Manual (Using effects)
During recording, you can apply external effects to a sound source connected to an input con-
nector in the [
INPUT A ] channel.

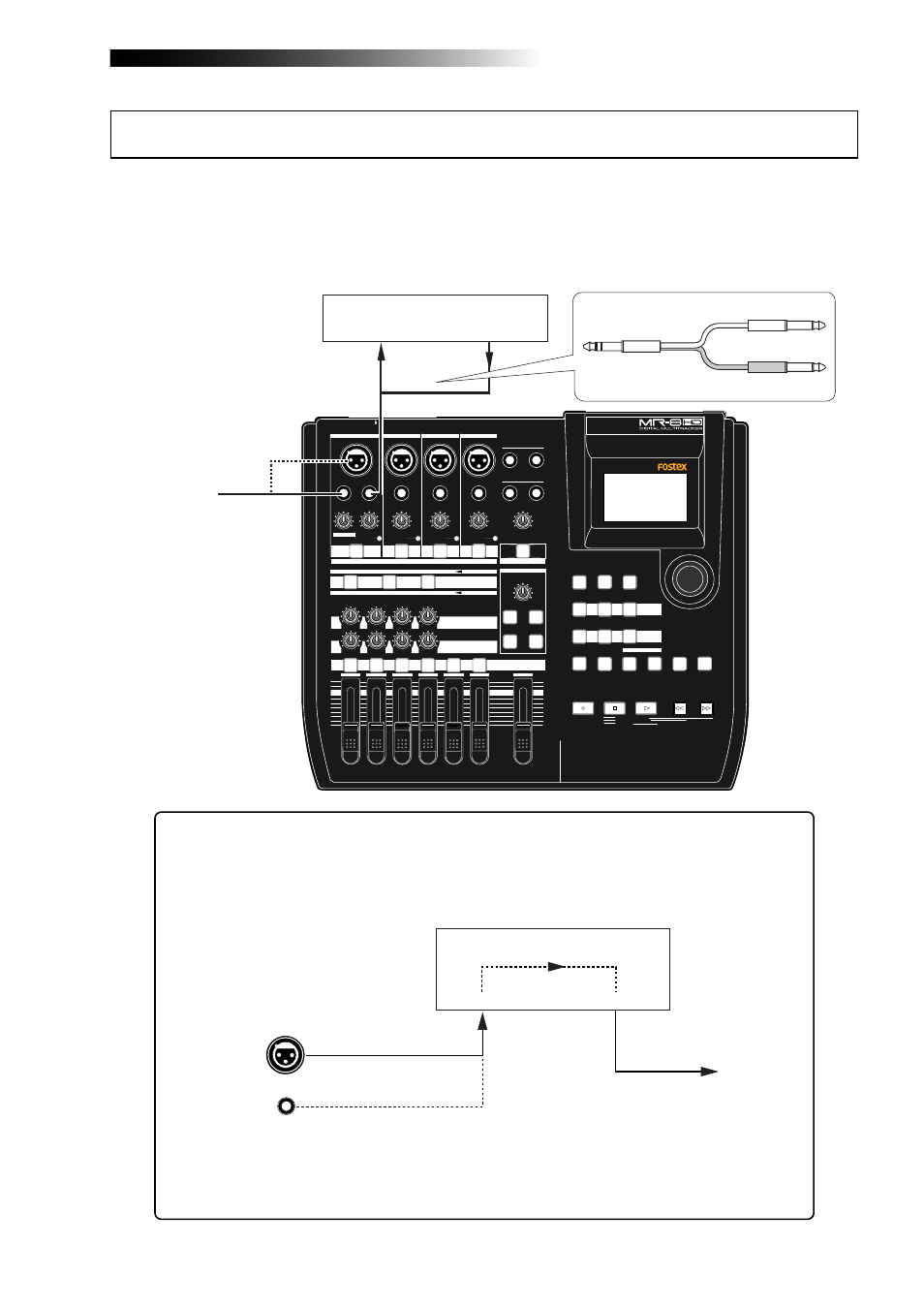

The [ INPUT A ] channel has the [ INSERT ] connector (phone jack). You can connects an external
effect unit (typically, a compressor/limiter) to this connector using a Y-cable, as shown below.
MIN MAX
10 0
L R
10 0
L R
10 0
L R R L
MIN MAX LINE MIC LINE MIC LINE MIC LINE MIC
REC SELECT
0 10
1 2 3 4 5/6 MASTER
MAX MAX
MIN MIN
7/8
LOCATE REC END
A-B PLAY LOCATE ABS ZERO
PLAY STOP RECORD REWIND F FWD
GUIDE RHYTHM CONTRAST
1-8 >SONG NEW 1-6 > 7/8 1-4 > 5/6 STEREO WAV FILE
BOUNCE
POWERFUL
MASTERING
B / OUT A / IN
LOCATE
STORE PLAY MODE AUTO PUNCH
NATURAL BRIGHT
TIME BASE SELECT
UNDO/REDO
7/8 >
MENU / ENTER
SIMULATION DYNAMIC CONDENSER TUBE MIC
PAN
EFFECT
REVERB / DELAY TIME
HALL ROOM
PLATE DELAY
PHONES VOL
L
STEREO OUT
R
2
PHONES
1
MAX MIN
BAL BAL BAL
TRIM
UNBAL
PEAK
TRIM
UNBAL
PEAK
TRIM
UNBAL
PEAK PEAK
DISTORTION
GUITAR
/GUITAR
INPUT A SELECT
INSERT
BAL
UNBAL
TRIM
INPUT A INPUT B INPUT C INPUT D
ON/
OFF
POWER
ABC1 DEF2 GHI3
JKL4 MNO5
PQR6 STU7 VWX8 YZ9 +-_0 DELETE
TO STEREO BUSS
EFFECT SEND
ON/
OFF ON/
OFF ON/
OFF
60'S COMBO US METAL BRIT STACK AMP SIMULATION
INPUT A
EFFECTOR (COMP/LIMITER) etc.
Input Output
Sound source
INPUT A
EFFECTOR
Input Output
The source (dry) signal fed to the [ INPUT A ] channel is sent to the external effect
unit connected to the [ INSERT ] connector and the wet (effect) signal returns to
the [ INPUT A ] channel. Thus, you can apply effects to the " INPUT A " signal by
connecting an external effect unit.
See the manual of your effect unit for details about how to use it.
A Y-cable is not supplied with the MR-8HD/CD, therefore, purchase an appro-
priate Y-cable available in the market.
Sound
source
Dry (original) sound
Wet (effect) sound
Applying external effects
