ample. Slide the chip guard upwards until it
engages or push the machine down as far as
possible.
We recommend lowering the chip guard be-
fore starting work to improve the effi ciency
of the extraction system. Push the lever [5.1]
towards the handle to do this.

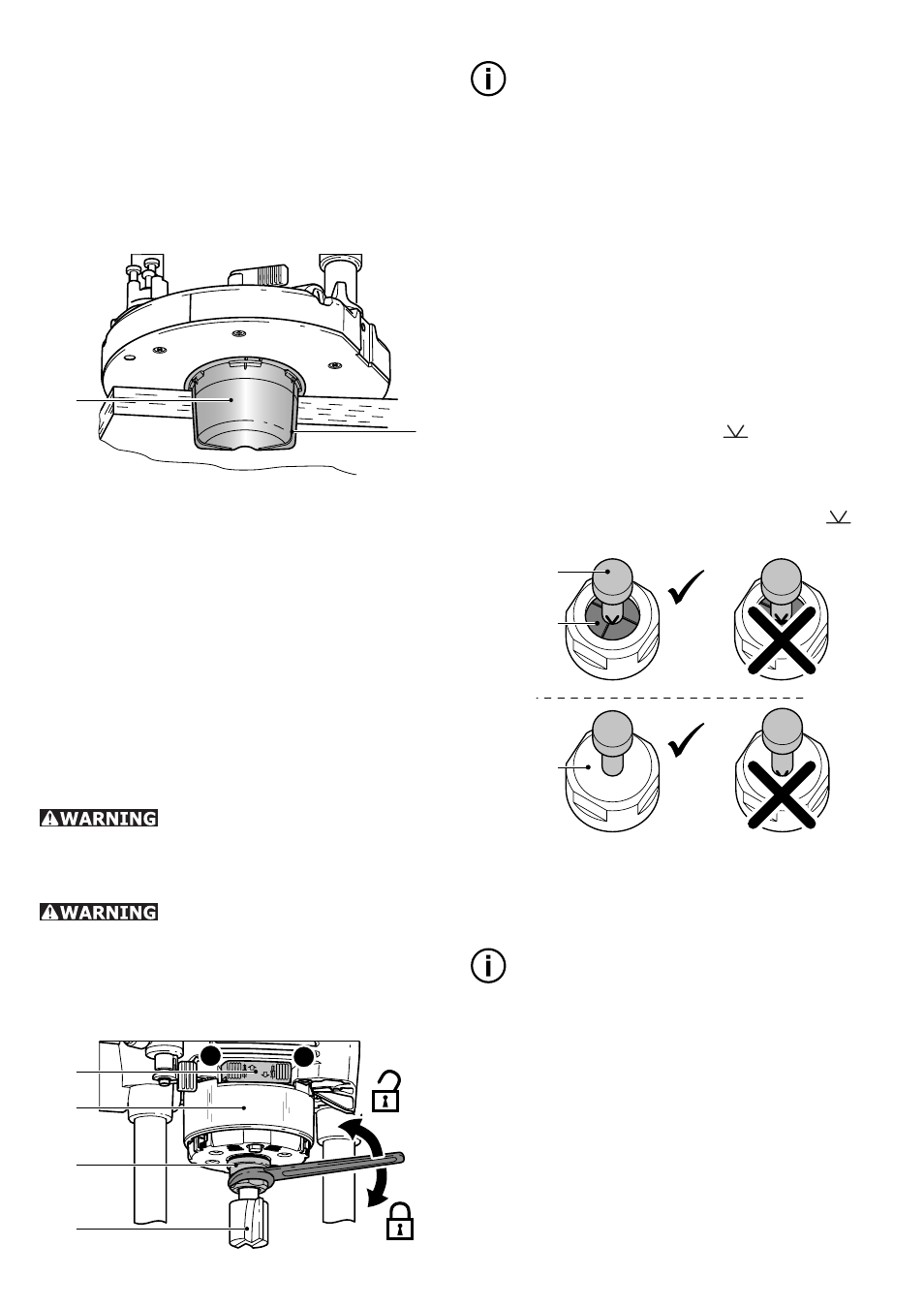

KSF-OF chip defl ector
6.2
6.1
The chip defl ector KSF-OF [6.1] indirectly in-
creases the effi ciency of the extraction system
during edge routing. The maximum possible
routing diameter is 78 mm.
The defl ector is fi tted in a similar way to the
copying ring (see "Copy routing").
The hood can be cut off along the grooves
[6.2] using a hacksaw and can thus be re-
duced in size. The chip defl ector can then be
used for interior radiuses up to a minimum
radius of 52 mm.
Milling cutters
Do not exceed the maximum
speed specifi ed on the tool and/or keep
to the speed range. Cracked or distorted
cutters must not be used.
The routing tool may be hot
after use and has sharp edges. Allow the
tool to cool before changing. Wear protective
gloves when changing tools.
We recommend turning the machine on its
side to change the tool.
7.1
7.2
7.3
7.4
A B
f
Note:
Switch off the machine before pressing the
rocker for the spindle lock [7.1]
a) Removing the tool
Slide the chip guard [7.2] upwards until it
engages, if necessary.
Press the rocker [7.1] for the spindle lock
to side A.
Unscrew the locking nut [7.3] using an
open-end wrench (size 24) until you are
able to remove the tool.
b) Inserting the tool
Insert the routing tool [7.4/7a.1] into the
open clamping collet as far as possible, but
at least up to the mark on the shank
[7a.2]. If the collet is not visible because
it is blocked by the union nut [7a.3], the
milling tool must be insertes into the collet
at least far enough that the marker no
longer overlaps with the union nut.
7a.2
7a.3
7a.1
Press the rocker [7.1] for the spindle lock
to side B.
Tighten the locking nut [7.3] using an open-
end wrench (size 24).
Note:
The rocker only blocks the motor spindle in
one direction of rotation at any one time.
Therefore when the locking nut is undone
or tightened, the wrench does not need to
be offset but can be moved back and forth
like a ratchet.
f
–
–
–
–
–
–
f
