8
1.2 Monitor Unit
The monitor unit can be installed on a desktop or flush mounted in a panel. Install it
on the chart table or near the steering place, referring to the outline drawing.
When selecting a mounting location for the monitor unit, keep the following in mind:
• Keep the unit out of direct sunlight.
• The temperature and humidity should be moderate and stable.
(Operating temperature range: -15°C to +55°C)
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field generating equipment such as
motor, generator.
• For maintenance and checking purposes, leave sufficient space at the sides and
rear of the unit and leave slack in cables. Refer to the outline drawing.
• A magnetic compass will be affected if the unit is placed too close to it. Observe
the following compass safe distances to prevent disturbance to the magnetic
compass:
Standard compass: 0.45 meters
Steering compass: 0.3 meters

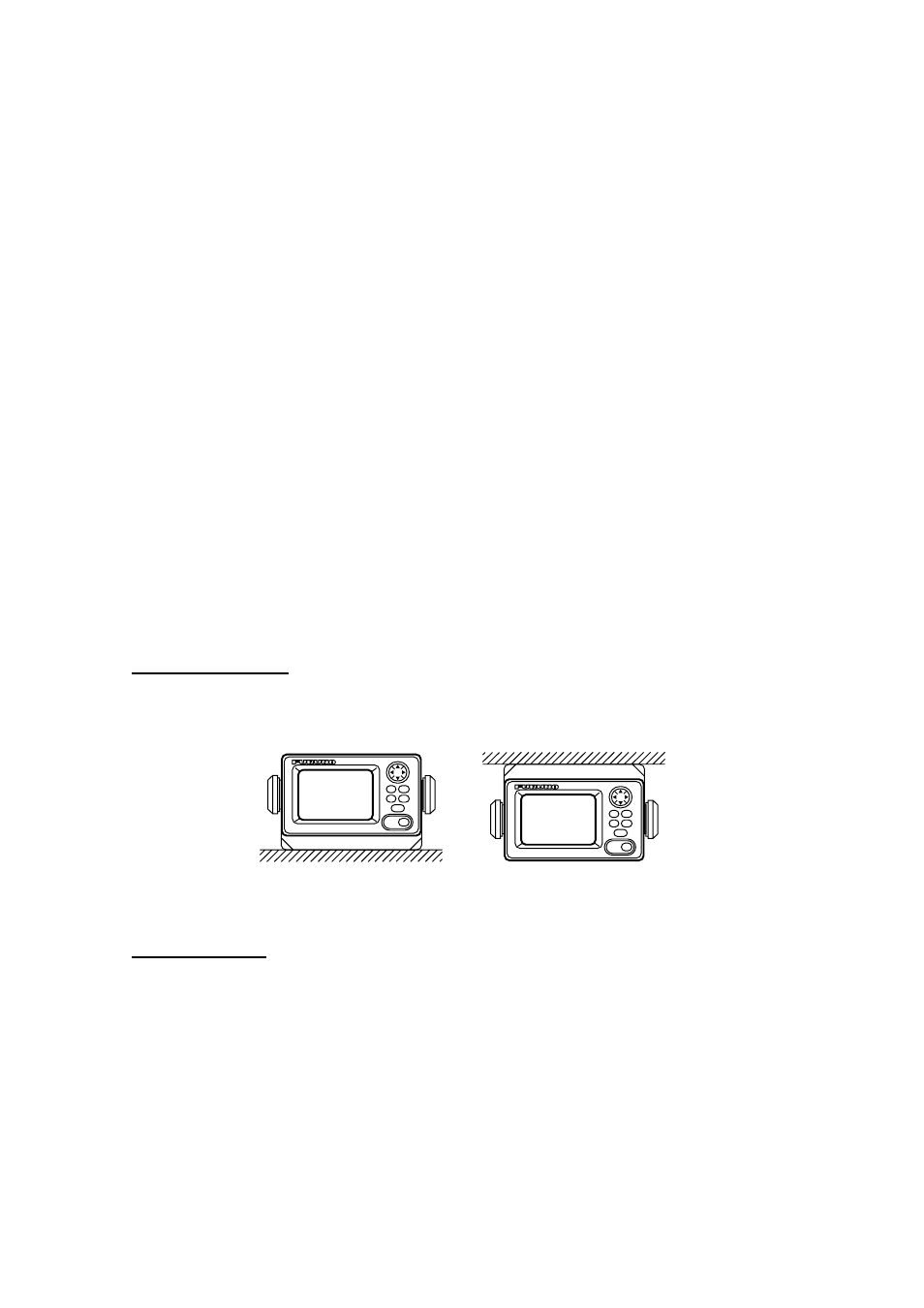

Desktop mounting
1. Fasten the hanger with four self-tapping screws (5x20).
2. Fasten the monitor unit to the hanger with two knobs.
Tabletop Overhead
Flush mounting
There are two types of flush mount kits, F type and S type. For details, see the
outline diagrams at the back of this manual.
