15

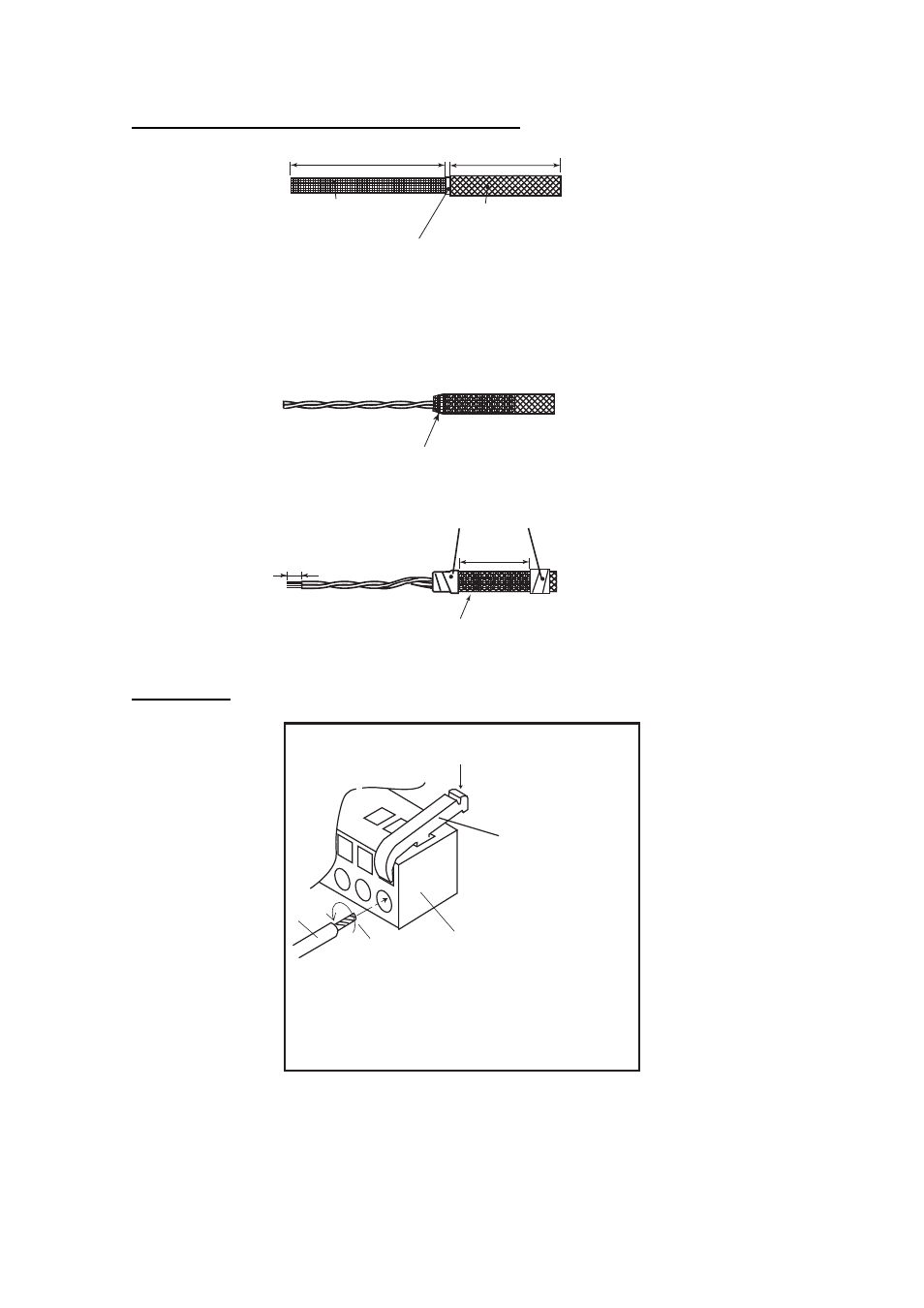

Cable connection at transponder
Fabrication of cables TTYCS-4 and TTYCS-1Q
L
6
Remove paint
by 50 mm.
Vinyl tape
Shield
45
50
Cut vinyl sheath.
Expose core and fold back
shield onto cable.
Lay in clamp
where paint
was removed.
L: Depends on equipment connected.
Measure at the transponder.
Connection
Procedures
1. Twist the cores.
2. Press the terminal opener downward.
3. Insert the wire to hole.
4. Remove the terminal opener.
5. Pull the wire to confirm that it is secure.
Terminal opener
Wiring for WAGO connector
WAGO connector
Wire
Twist
Press downward.
