9

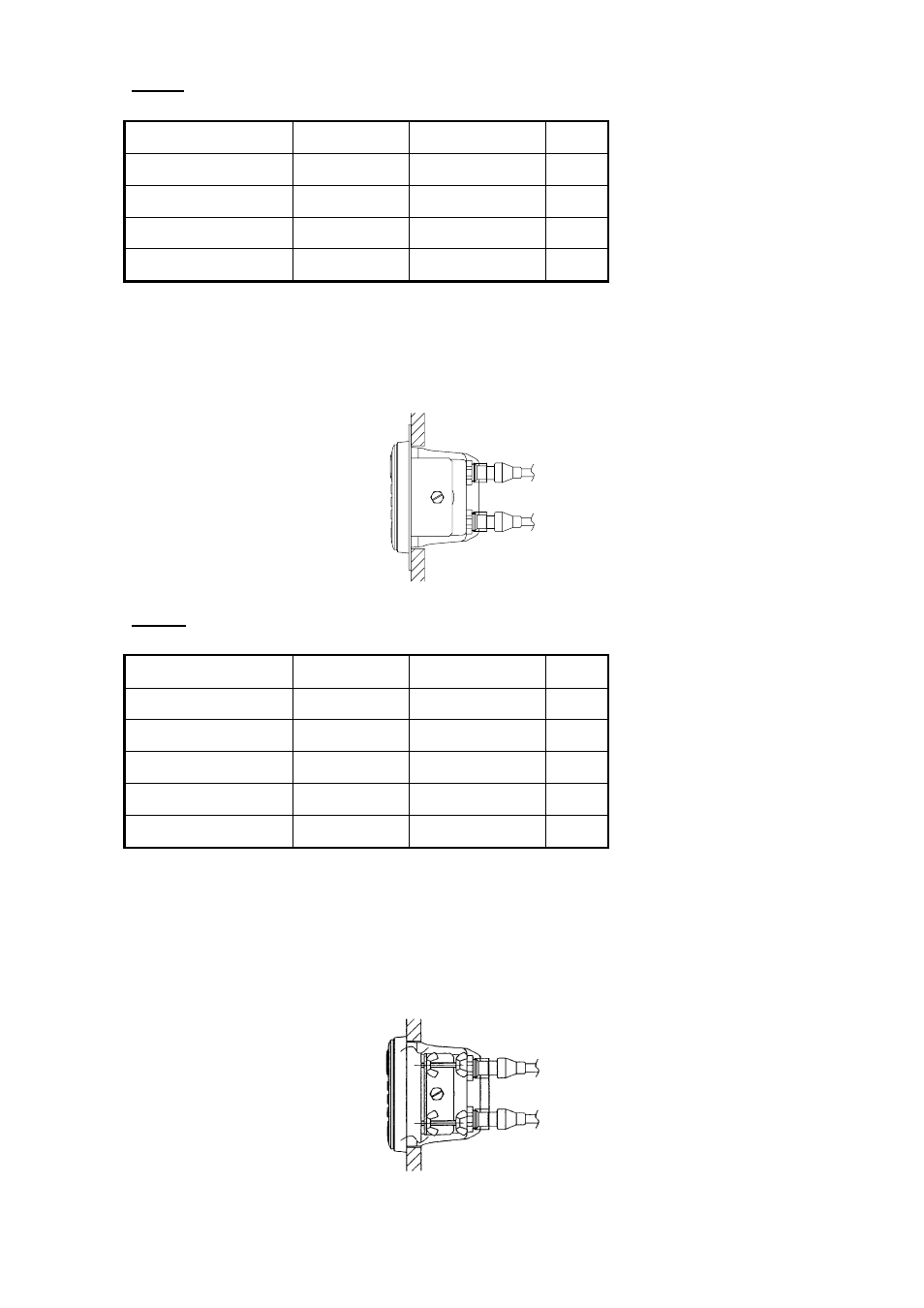

F type
Use the optional flush mount kit OP20-29.
Name Type Code No. Qty
Cosmetic panel 20-016-1051 100-251-370-10 1
Self-tapping screw 5x20 000-162-609-10 4
Hexagon-head bolt M6x12 000-162-897-10 2
Spring washer M6 000-158-855-10 2
1. Prepare a cutout in the mounting location whose dimensions are 183 (W) x 92
(H) mm.
2. Attach the cosmetic panel (20-016-1051) to the unit with two hex head bolts
(M6x12) and two spring washers (M6).
3. Fix the unit to the mounting location with four self-tapping screws (5x20).
S type
Use the optional flush mount kit OP20-17.
.Name Type Code No. Qty
Fixing plate 20-007-2401 100-183-190-10 2
Hexagon-head bolt M6x12 000-162-897-10 2
Wing bolt M4x30 000-804-799 4
Wing nut M4 000-863-306 4
Spring washer M6 000-158-855-10 2
1. Prepare a cutout in the mounting location whose dimensions are 167 (W) x 92
(H) mm.
2. Insert the unit to the cutout.
3. Attach two fixing plates (20-007-2401) to the unit with two hex bolts (M6x12)
and two spring washers (M6).
4. Screw four wing bolts (M4x30) to wing nuts (M4).
5. Fasten the unit with four wing bolts and nuts.
