C120-E361-04EN

1-11

1.3 RCI Setup

Remarks: Up to 32 RCIs including the RCI main unit can be connected. Use the

repeater function of the external power controller to extend the cable length

used and to increase the number of connected RCI device. Note that the

maximum RCI cable length is 150 meters.

Remarks: The external power controller is included in the number of RCI device

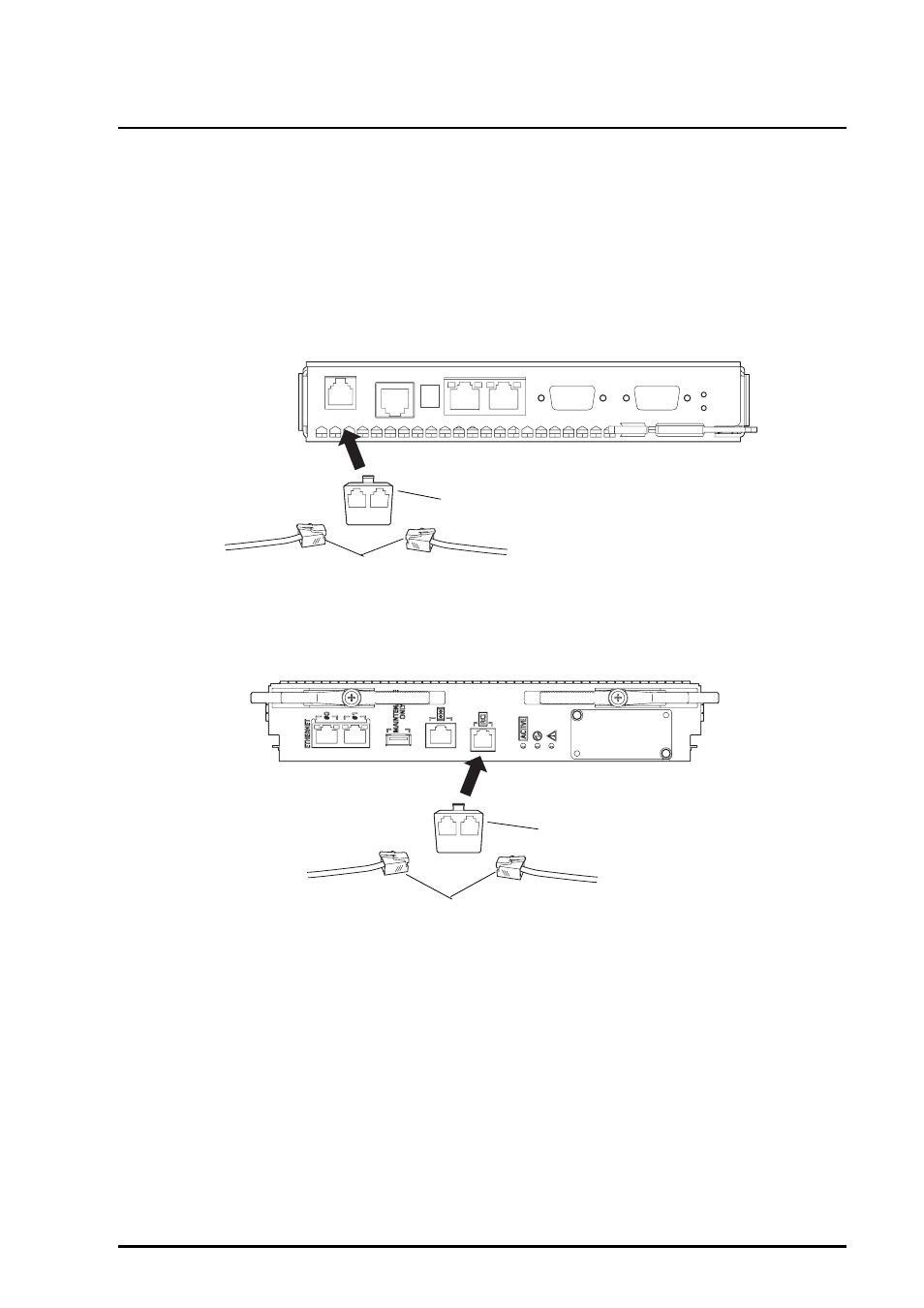

Figure 1.9 RCI branching connector connection of a midrange server

Figure 1.10 RCI branching connector connection of a high-end server

Connect the RCI terminating resistor to the branching connector that is at the end

of the RCI connection.

(1)

(2)

(1)

(2)
