8

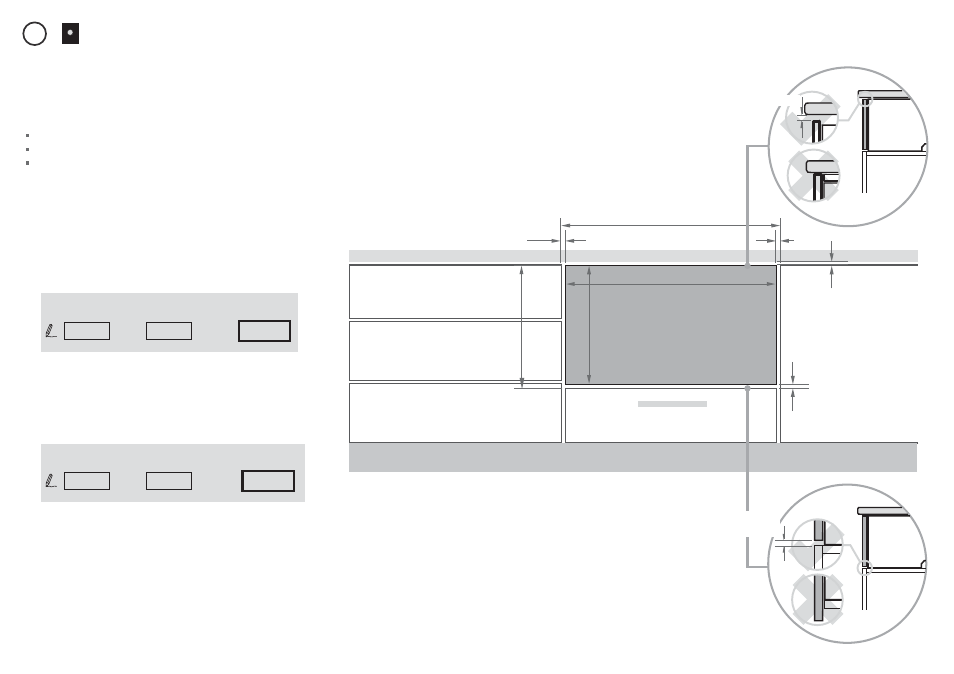

The following calculations assume the top of the panel is aligned
with the top of the adjacent cabinetry:
WIDTH OF THE PANEL
Measure A (the width between adjacent door/drawer fronts)
and write it in the fi rst box below, then complete the equation.
HEIGHT OF THE PANEL
Measure B and write it in the fi rst box below, then complete
the equation.
A
B
clearance to
adjacent cabinet
front (min. 2 mm)
ventilation gap
(min. 2 mm)
WIDTH OF PANEL
(min. 855 mm)
HEIGHT OF PANEL
- 2 x
-
=
=
FRONT PANEL SPECIFICATIONS
16 -20 mm panel thickness
Adequately sealed to withstand moisture (50 O C @ 80% RH)
Maximum weight of panel: 9 kg
INTEGRATED MODELS WITH REMOTE (NZ AU) ONLY - CUSTOM FRONT PANEL CALCULATIONS 6a
Note: when the top of the dishwasher has to be lower than the adjacent
cabinetry, the panel can be increased in height.
min. 2mm ventilation
gap with external venting
kit installed
min. 2mm ventilation gap with
external venting kit installed
WIDTH OF PANEL
HEIGHT
OF PANEL
A
B
min. 2mm min. 2mm
min. 2mm
min. 2mm
