22 ADJUST PANEL HEIGHT TO ALIGN THE CABINETRY GAPS

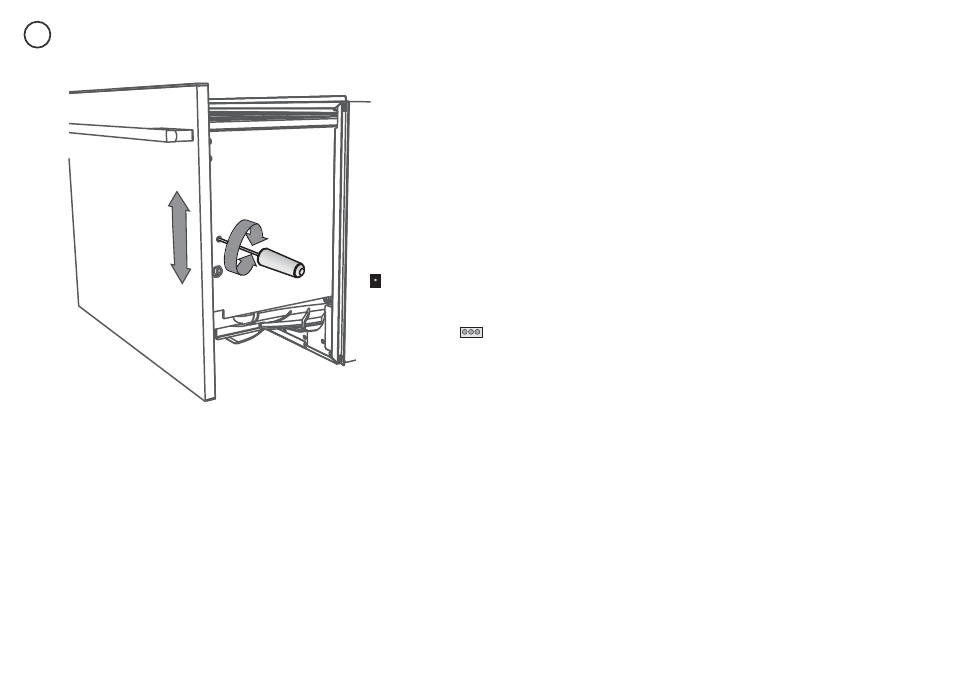

Insert an appropriately sized Philips screwdriver into
the hole above the door pin and rotate the panel up or
down to align the gaps in your cabinetry.
Repeat on the other side if necessary.
The panel has a maximum travel of 2 mm up or down.
Important!
Integrated models with remote control:
Ensure that you maintain a minimum of 2 mm ventilation gap
below the panel.
Designer models and Integrated models with badge:
Ensure that you maintain a minimum of 8 mm ventilation gap
below the panel.
+ or - 2 mm
