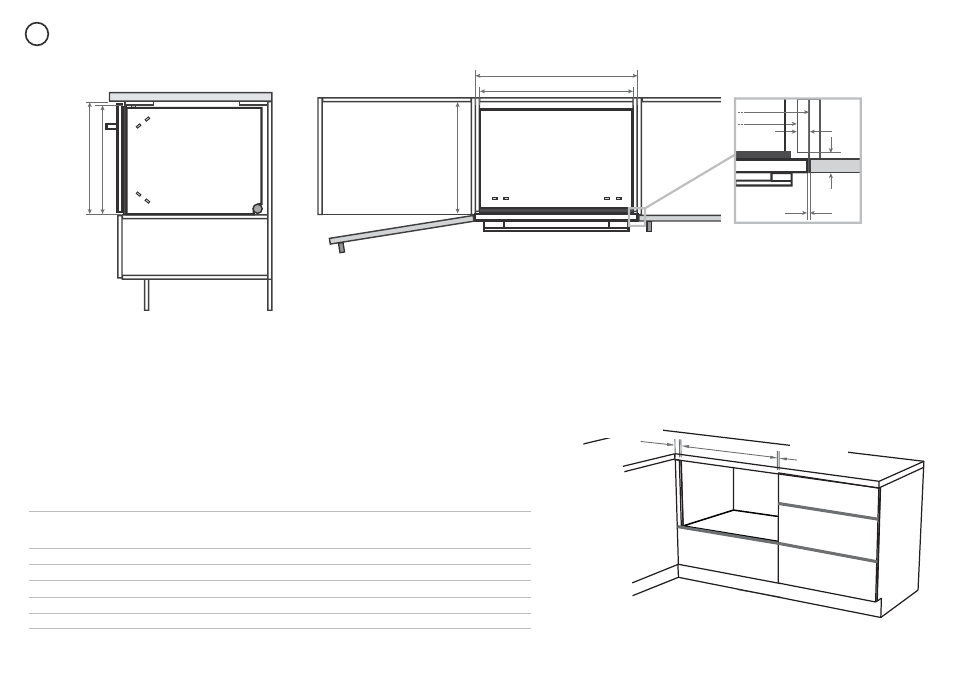

7 5 CABINETRY DIMENSIONS
Plan
Side L M P
O
N
18 mm
20 mm
2 mm
O
N
Minimum clearances from adjacent cabinetry
Cabinetry dimensions mm
Desig
ner
In
te
grate
d
Remote contr
ol
In
te
grate
d
Badge c
ontr
ol
L
height of cavity
(from support surface to underside
of benchtop) 480 480* 480*
M inside height of cavity 460 min. 460 min. 460
N inside width of cavity 864 864 864
O overall width of cabinetry 900 900 900
P inside depth of cavity min. 560 min. 560 min. 560
*Recommended
min. 13 mm
clearance from a
corner cupboard
min. 2 mm
clearance
to adjacent
cupboard door
