INTEGRATED MODELS WITH REMOTE (NZ AU) ONLY - INSTALLING THE FRONT PANEL
3
1
1
2

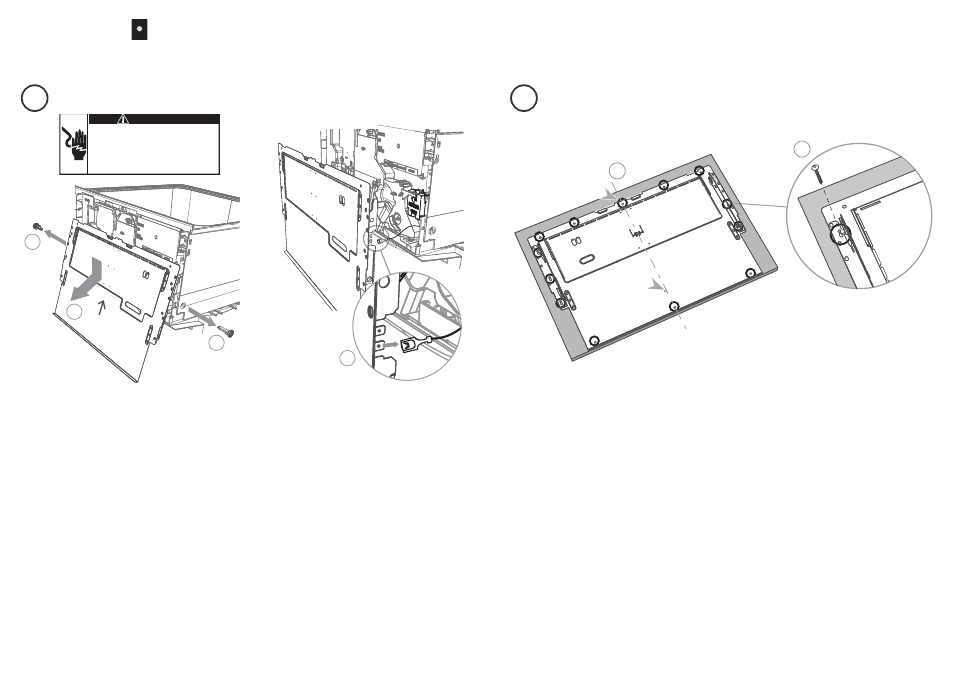

REMOVE BRACKET FROM PRODUCT ATTACH PANEL TO PANEL BRACKET 15a 16a
Important!
Use all 14 screws provided as shown.
Align bottom of panel
with bottom of bracket
1
2
16 mm
x14
Electrical Shock Hazard
Before continuing, ensure that the product is
disconnected from the power supply.
Failure to follow this warning may result in
electrical shock, injury or fire.
WARNING!
