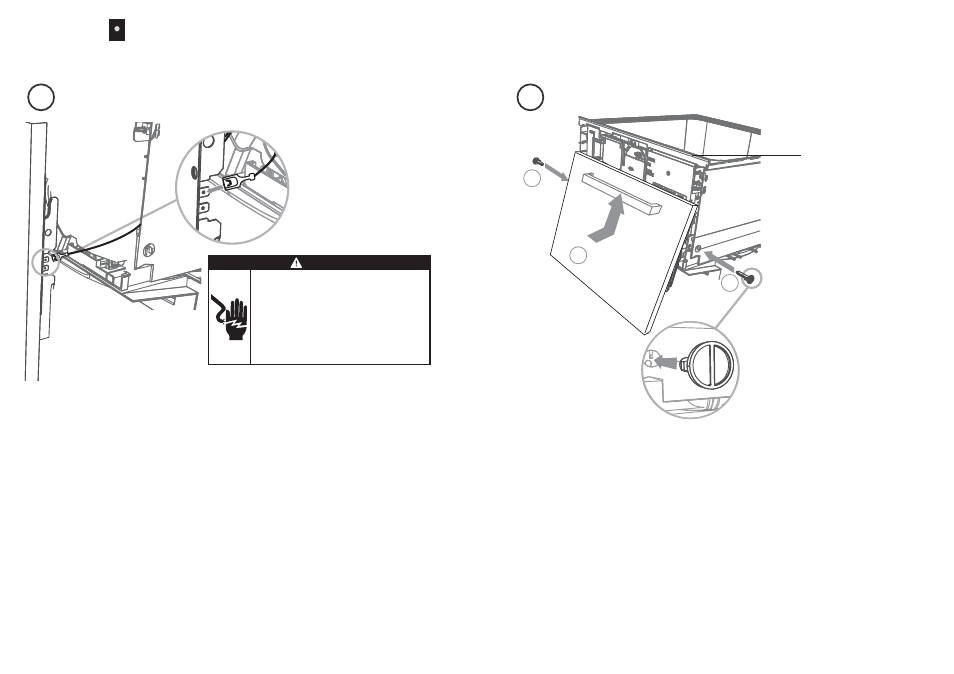

INTEGRATED MODELS WITH REMOTE (NZ AU) ONLY - INSTALLING THE FRONT PANEL
2
2
1
Important!
Ensure the rubber seal
between the drawer
and panel is kept in
place.
ATTACH PANEL TO PRODUCT EARTH THE PANEL
When refitting the
door pins,
ensure they are
orientated as shown.
17a 18a
WARNING!
To earth the panel bracket, connect the earth
wire from the product to one of the tabs.
Any custom metal component (e.g. handle)
that extends past the rubber seal must be
earthed too.
Failure to follow these warnings may result
in electrical shock, injury or fi re.
Electrical Shock Hazard
