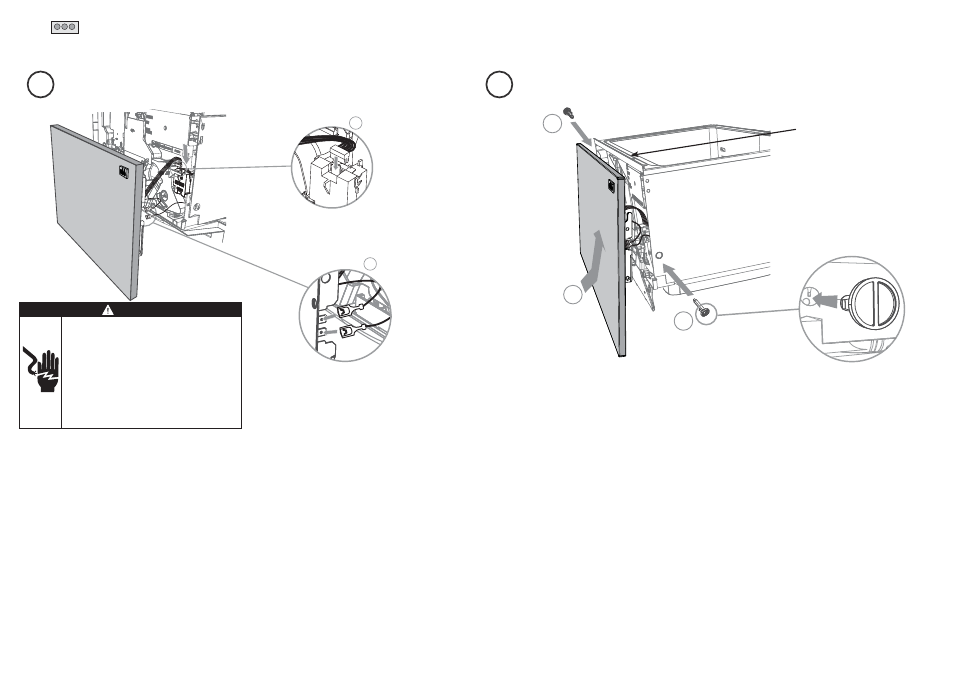

REATTACH BADGE & EARTH THE PANEL ATTACH PANEL TO PRODUCT 19b 20b
WARNING!
1
2
Electrical Shock Hazard
Connect the integrated badge earth wire to one of
the two tabs provided on the panel bracket.
To earth the panel bracket, connect the
earth wire from the product to the other tab.
Failure to follow these warnings may result in
electrical shock, injury or fire.
1
2
2
Important!
Ensure the rubber seal
between the drawer and
panel is kept in place.
Push the panel
in then up to
locate.
INTEGRATED MODELS WITH BADGE (GB IE) ONLY - INSTALLING THE FRONT PANEL & BADGE CONTROLS
When refitting the
door pins, ensure they are
orientated as shown.
WARNING! WARNING!
Connect the integrated badge earth wire to
one of the two tabs provided on the panel
bracket. To earth the panel bracket, connect
the earth wire from the product to the other
tab. Any custom metal component (e.g. han-
dle) that extends past the rubber seal must
be earthed too.
Failure to follow these warnings may result
in electrical shock, injury or fi re.
Electrical Shock Hazard
