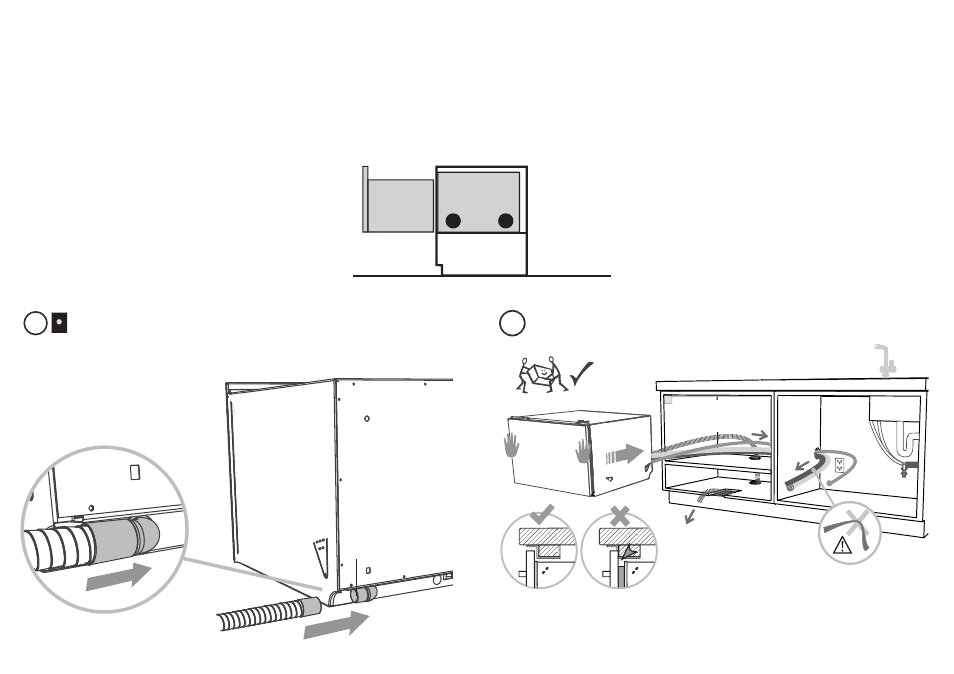

10b 9b INTEGRATED MODELS WITH REMOTE (NZ AU) ONLY -
ATTACH VENTING HOSE
PULL THROUGH HOSES & MOVE INTO THE CAVITY
Fitted Elbow
Check that the fitted elbow is
rotated left or right (depending
on the direction of the routing),
then ensure the venting hose is
securely attached to it.
ALTERNATIVE METHOD (b) - SECURE BY DRAWER REMOVAL
As you push product in, pull through hoses and
cord, ensuring they don’t get kinked or twisted.
Important!
If product cannot be pushed in far enough, pull
out again and rearrange hoses and cord. Do not
use excessive force, as doing so may squash the
hoses and lead to incorrect operation.
Important!
Ensure correct chassis position. In order
for product to function, cabinetry must
not block the drawer front from closing
hard against the chassis.
vent either
through
same cabinet
or adjacent
cabinet as per
step 7b or 7c
Vent Hose
(Integrated models
with remote (NZAU)
only)
