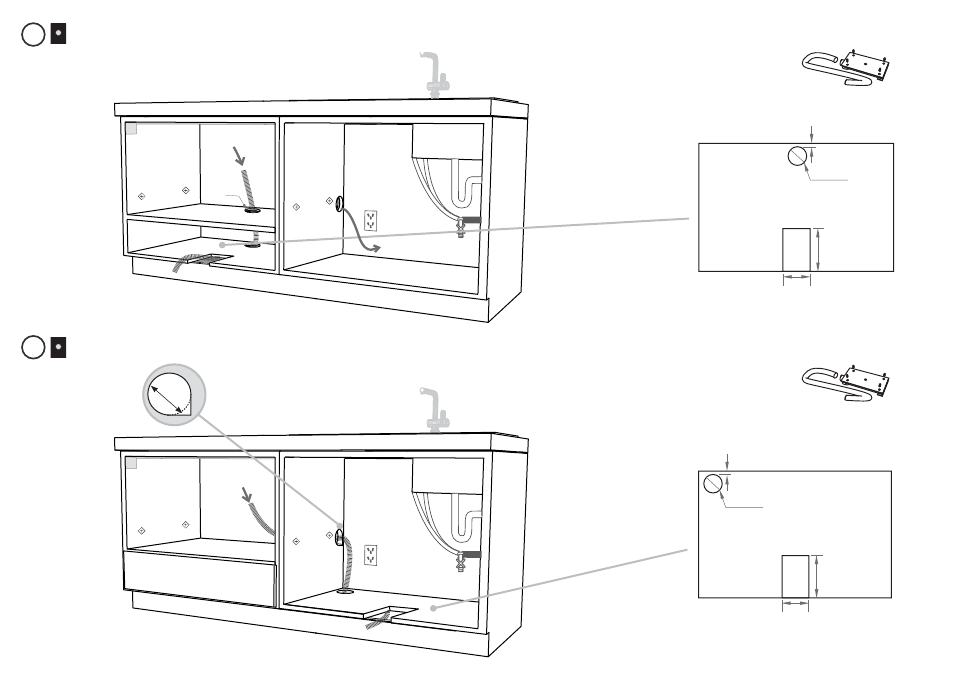

INTEGRATED MODELS WITH REMOTE (NZ AU) ONLY - PREPARATION FOR EXTERNAL VENTING THROUGH SAME CABINET
INTEGRATED MODELS WITH REMOTE (NZ AU) ONLY - PREPARATION FOR EXTERNAL VENTING THROUGH ADJACENT CABINET
ø 60 mm
ø 60 mm
max. 5 mm
max. 5 mm
220 mm
220 mm
100 mm
100 mm
ø60mm
Services can be located
either side of dishwasher
VENT HOSE
VENT HOSE
& SERVICES
SERVICES
Services can be located
either side of dishwasher
Shelf cutouts
Shelf cutouts
The ø60 mm services hole should
be enlarged to accomodate the
extra venting hose by
cutting out some material from
the bottom corner.
External Venting kit (1)
External Venting kit (1)
