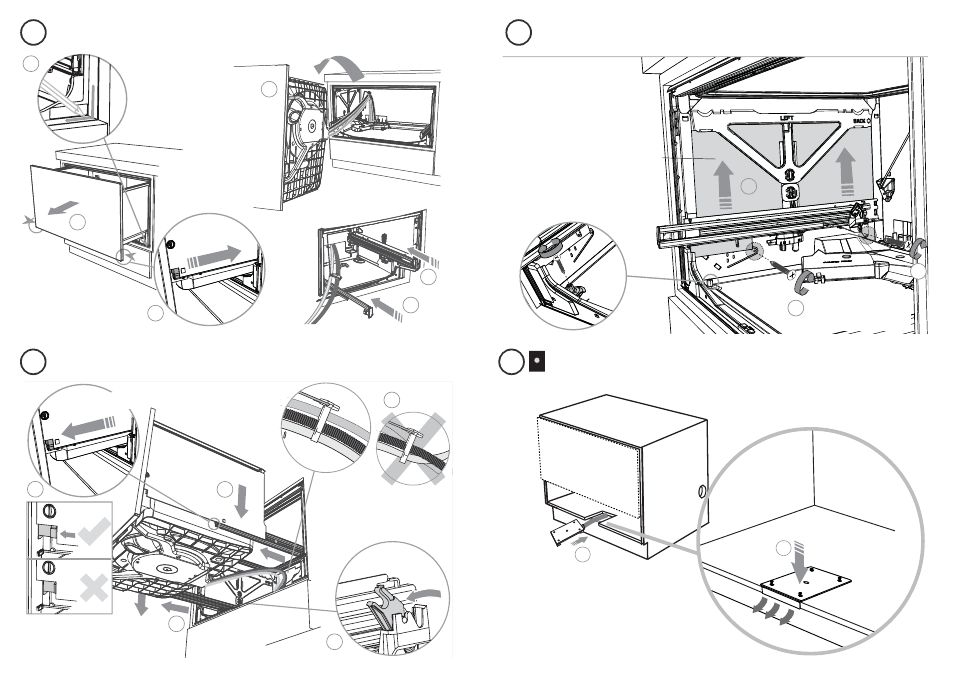

REMOVE THE DRAWER SECURE THE DRAWER TO THE CABINETRY
REFIT THE DRAWER ONTO THE RUNNERS INTEGRATED MODELS WITH REMOTE (NZ AU) ONLY -
SECURE THE EXTERNAL VENT
2
1
After routing the vent hose
through and out the hole
cutout, attach and secure the
vent by tightening the four
screws provided.
Airflow
To prevent
kinked hoses,
we recommend
rotating the drawer
anti-clockwise and
resting it on its side
after removal.
Press the release tabs
in on either side and
push back to release
drawer from runners
Push drawer runners back in.
Product may
move. Mark
chassis position
on cavity
5
5
1
2
3
4
100 mm
1
2
2
The product has three pairs
of fixing points:
Ensure the sound insulation
is repositioned correctly.
a pair of fixing holes either
side on the bottom
(use 38 mm fixing screws &
washers)
two pairs of formed
brackets on either side
of the chassis
(use 16 mm screws)
Before refitting the drawer,
ensure the hoses are not
twisted and the latches at
the rear of each drawer
runner are facing forward.
1
4
2
3
5
Ensure the drawer is
now rotated
clockwise back.
Pull fo
rward the r
elease tabs
on both sides 100
mm
Ensure the release tabs on
both sides are reset fully.
