Soft keys
The function of the five soft keys changes according to the operation. Their labels for their
current functions are shown on the screen to the left of the keys. To hide or show the soft
keys, press the HIDE/SHOW key. Each press of the key shows preset soft keys, user
function keys or turns off navigation information (at the top of the screen).
SOFT
KEYS
Display unit

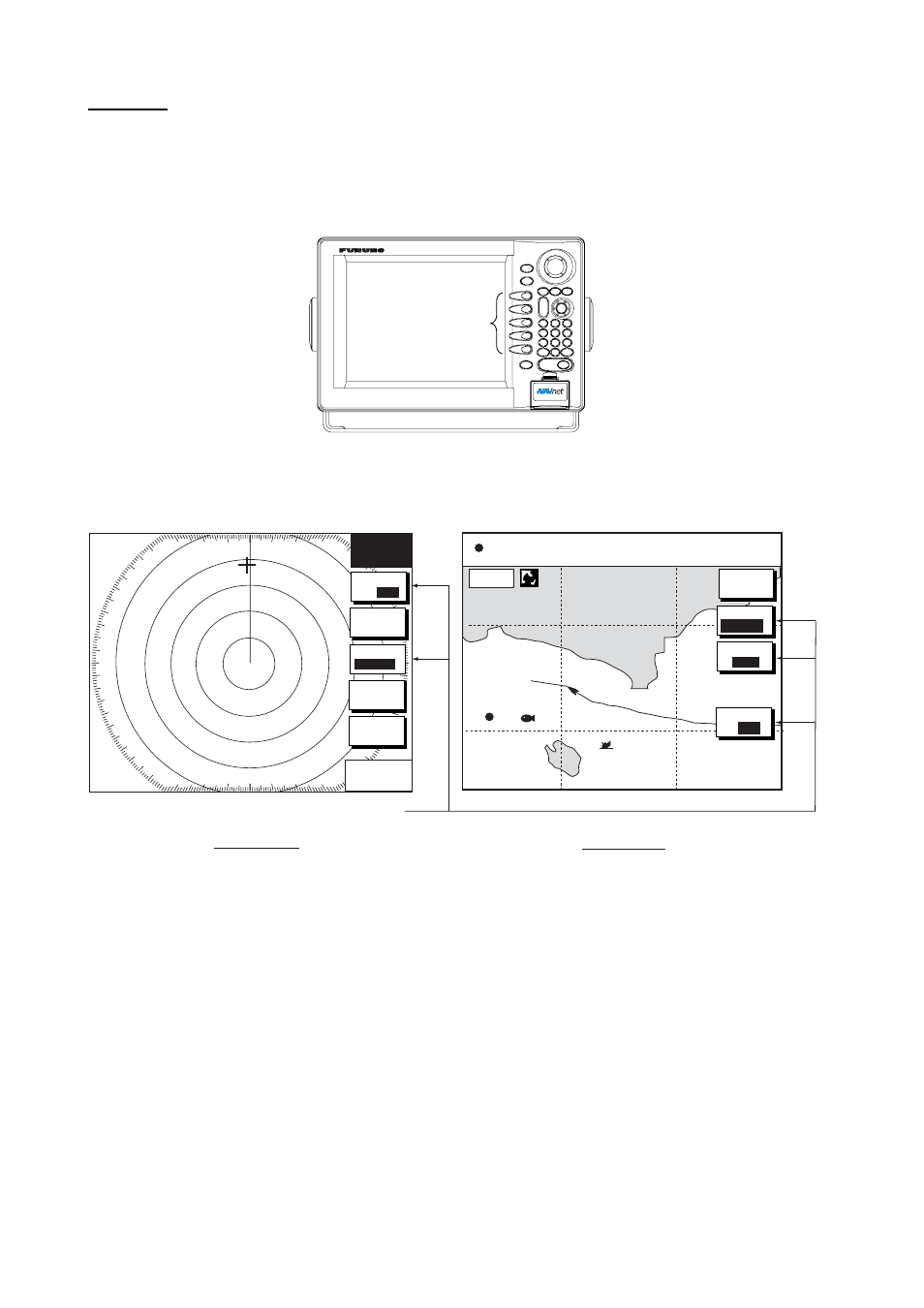

Some soft keys show the current setting of a soft key in reverse video as shown below.
BRIDGE
FISH WP-002
34 ° 22. 3456'N 359.9 ° M TRIP NU
080 ° 22. 3456'E 19.9 kt 99.9 nm
MARK
ENTRY
MODE
NTH UP
NAV
POS
Current option shown in reverse video
Radar Display Plotter Display
16.0nm
D. BOX
ON/
OFF
359.9 ˚R
11.70
nm
+
319. 9
°
M
12/
H-UP
3nm
LP
TRAIL
RETURN
TRAIL
ON /
OFF
TRAIL
TIME
TRAIL
COLOR
GRAD
SINGLE
Radar and plotter displays
