Chapter 13
Unbalance
Introduction
Unbalance displays phase relations between voltages and currents. Measuring results are
based upon the fundamental frequency component (60 or 50 Hz). In a 3-phase power
system, the phase shift between voltages and between currents should be close to 120
°.
Unbalance mode offers a measurement table, a related Trend display, and a Phasor
display.
Table

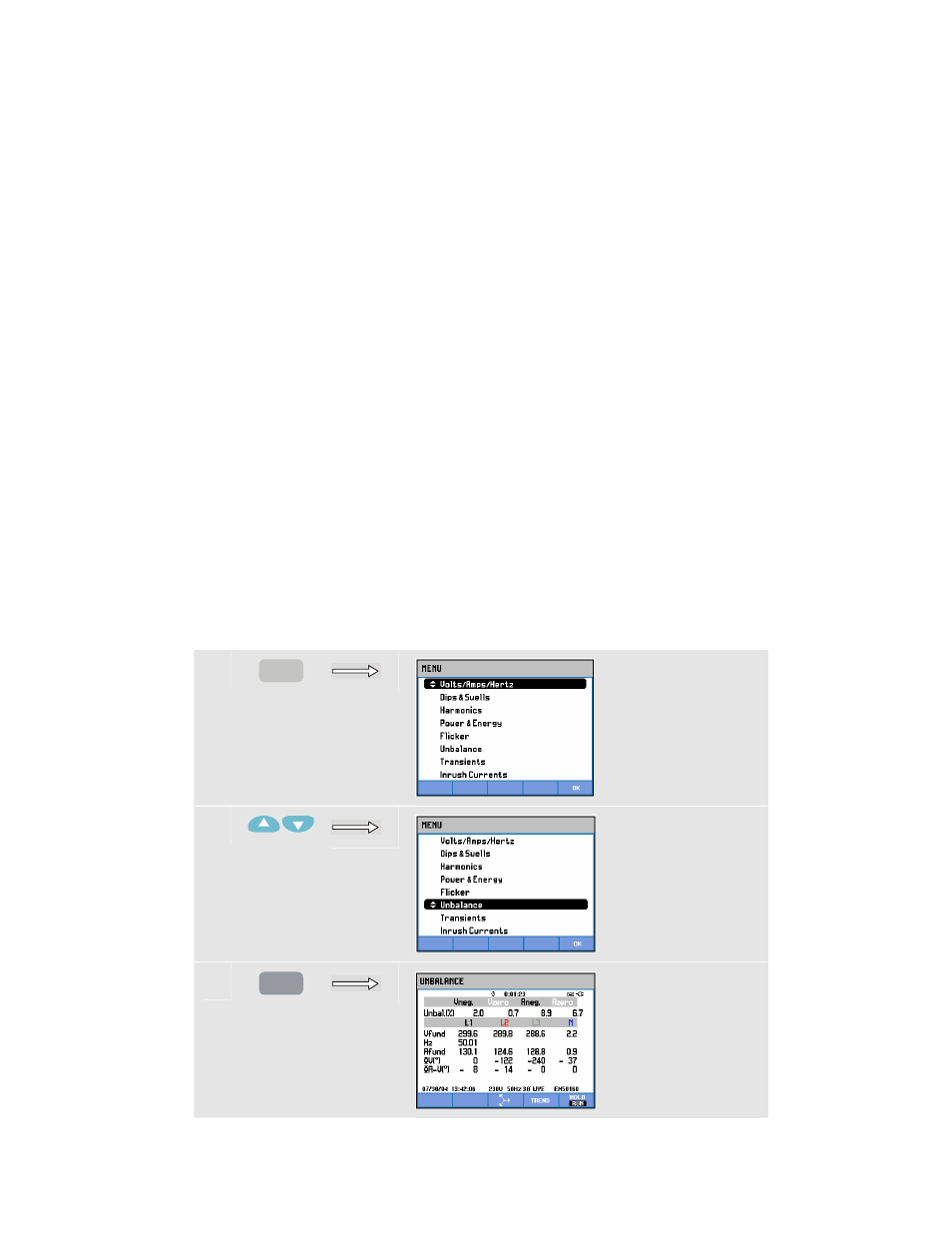

To access the Unbalance table screen:
c
MENU
d
e
ENTER
