Power Quality Monitoring
Events Table
16
16-5
Events Table

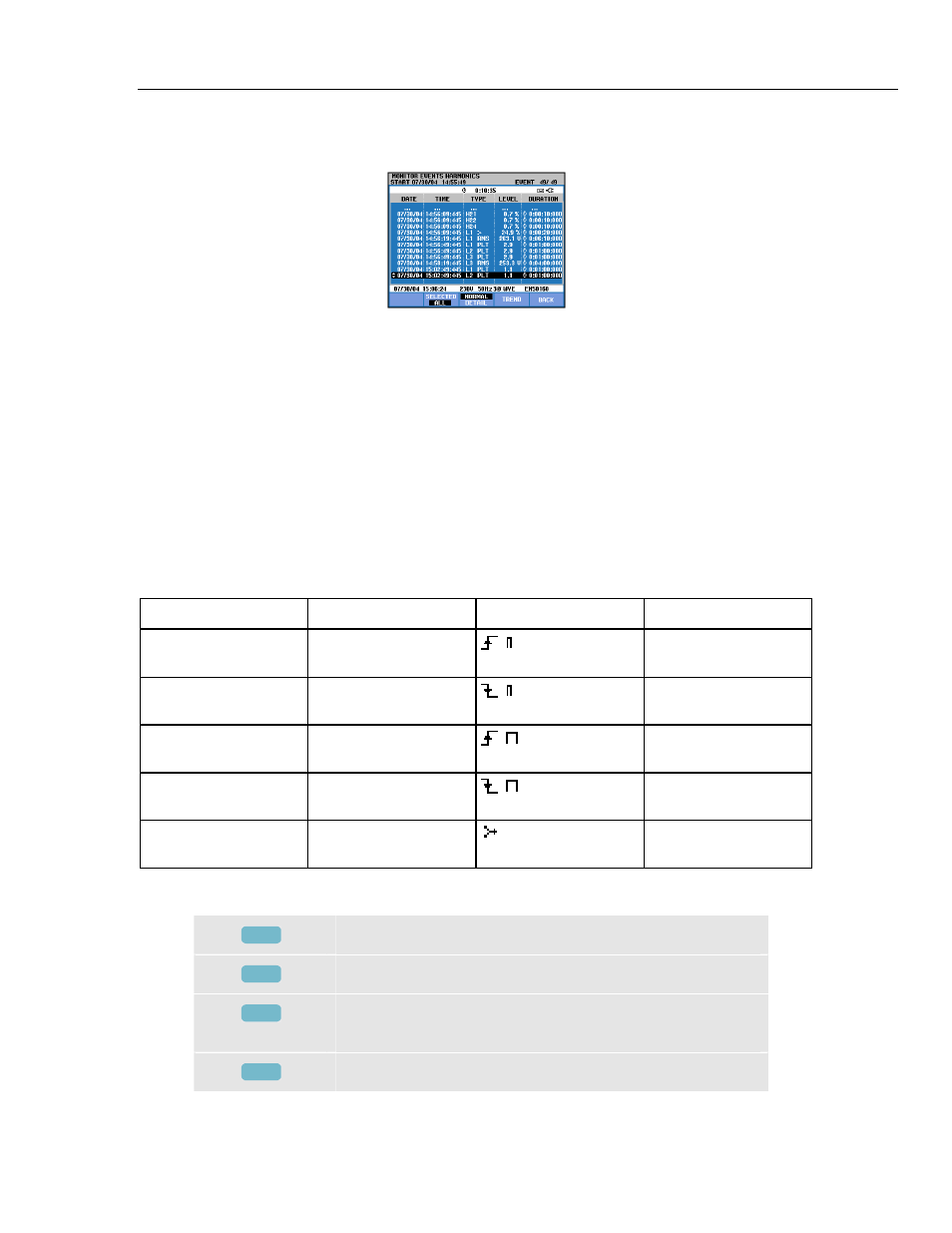

Figure 16-2. Events Table
The events table shows the events that occurred during the measurement with date/time
of start, phase, and duration. The amount of information in the table can be selected with
the Function keys F2 and F3:
• Selected gives a table with events as selected: Only V rms, Harmonics, Flicker,
Dips/Interruptions/Rapid Voltage Changes/Swells, or Unbalance/Frequency.
All gives a table with all events. This allows you to see cause and effect of events.
• Normal lists the major event characteristics: start date/time, duration, event type, and
magnitude.
Detail gives information on threshold crossings for each phase of an event.
The following Abbreviations and Symbols are used in the tables:
Abbreviation Meaning Symbol Meaning
CHG Rapid Voltage Change High value of 100 % limit
has been violated
DIP Voltage Dip Low value of 100 % limit
has been violated
INT Voltage Interruption High value of x % limit
has been violated
SWL Voltage Swell Low value of x % limit
has been violated
Hx Number of the harmonic
that violated its limits Unbalance event
Available function keys:
F2 Switch between Selected events or All events.
F3 Switch between Normal and Detailed events table.
F4 Access to Trend screen. Two ways to access Trend are
explained below.
F5 Return to next higher menu.
