SPARC Enterprise T5120 and T5220 Servers Overview Guide • August 2007

FIGURE 6

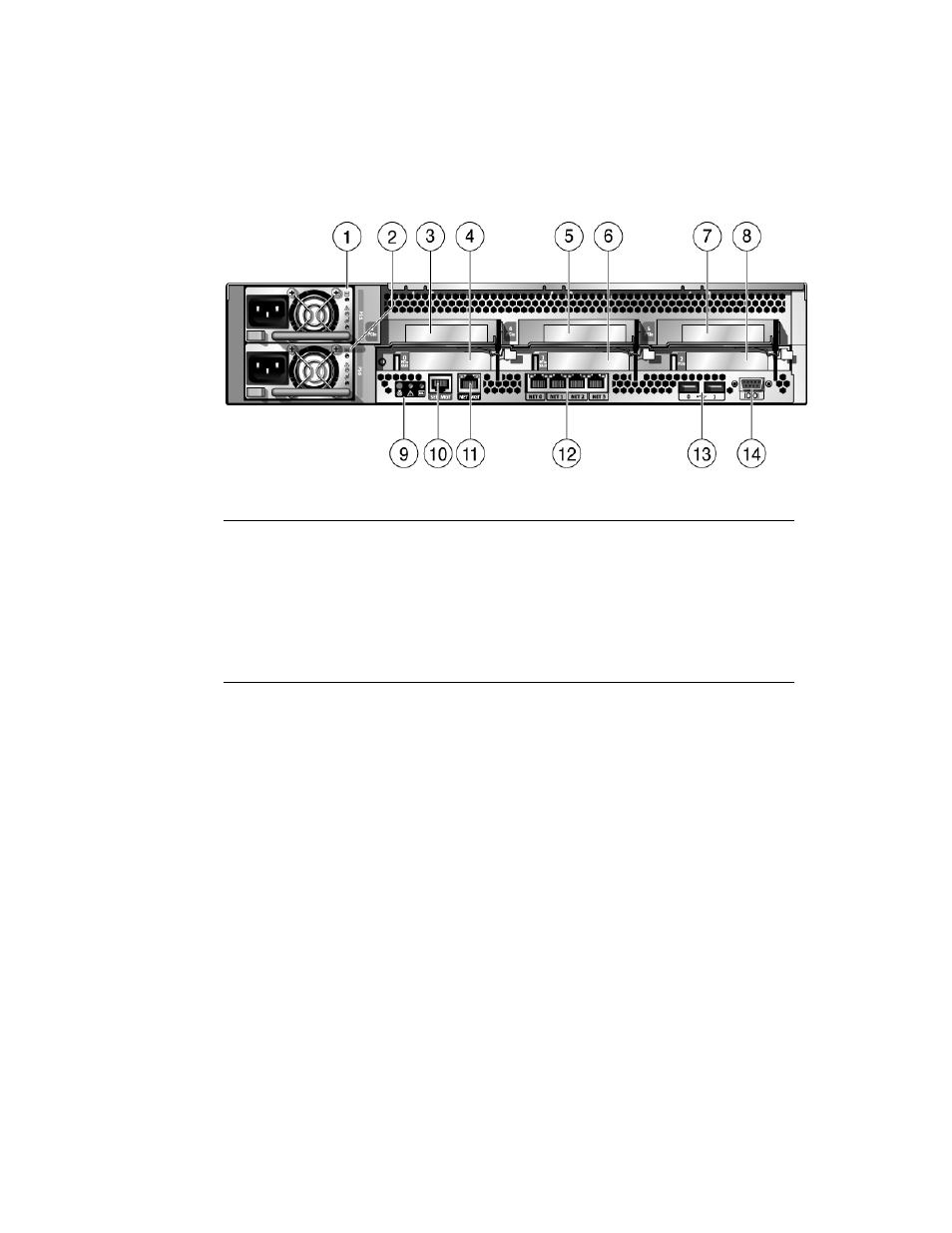

Rear of the SPARC Enterprise T5220 Server

Figure Legend

1

Power supply (PS1)

8

PCIe slot 2

2

Power supply (PS0)

9

System status indicators

3

PCIe slot 3

10

Serial System controller port (SER MGT)

4

PCIe or XAUI slot 0

11

Ethernet System controller port (NET MGT)

5

PCIe slot 4

12

10/100/1000 Ethernet ports (left to right; NET0, NET1,
NET2, NET3)

6

PCIe or XAUI slot 1

13

USB ports (left to right; 0, 1)

7

PCIe slot 5

14

Host serial port, DB9 connector (POSIX compliant, TTYA)
