Figure 5 – FUJITSU SPARC ENTERPRISE T5220 User Manual

Page 31

background image

Server Features

15

FIGURE 5

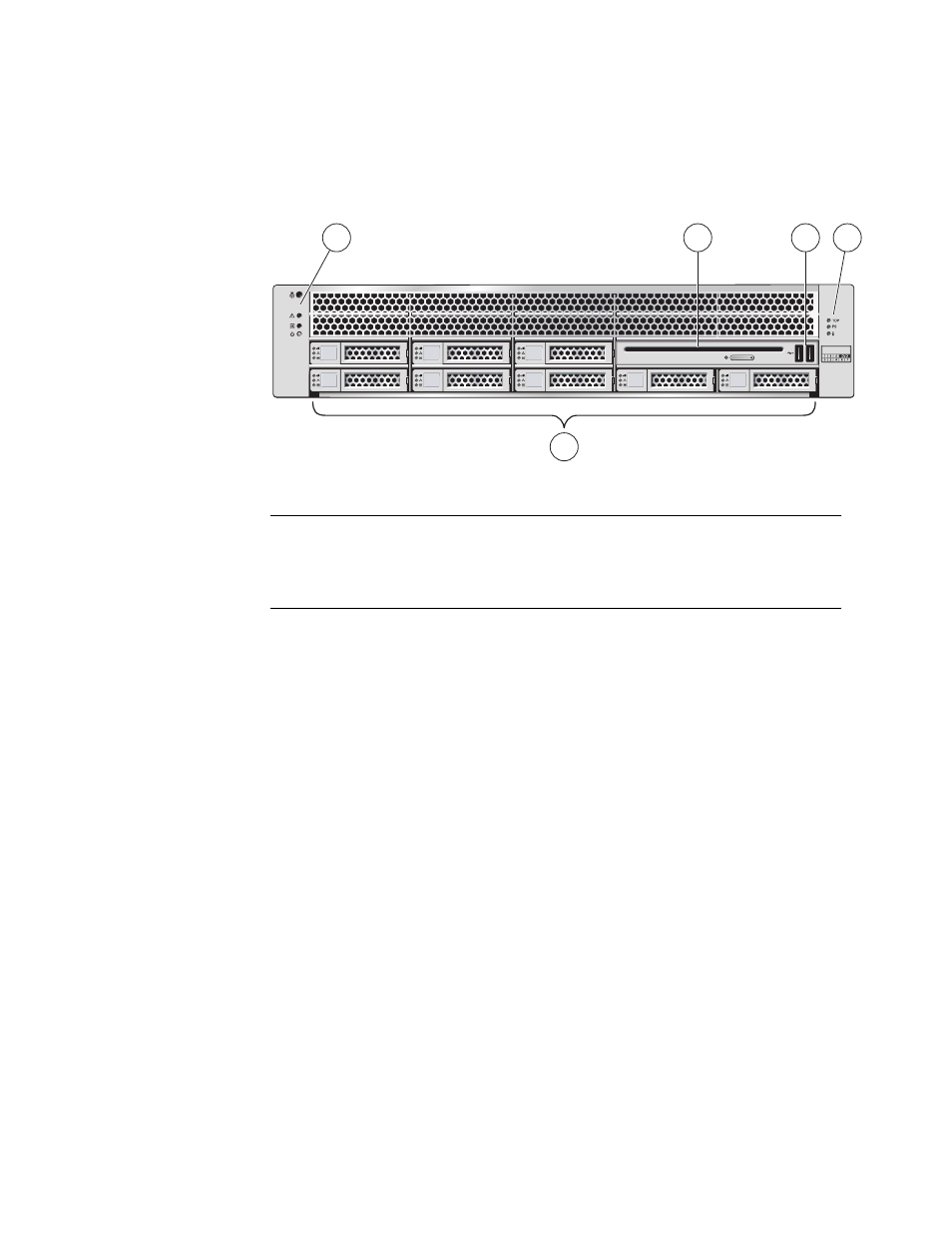

Front of the SPARC Enterprise T5220 Server

Figure Legend

1

System status indicators

4

Hard drives
(top left to right; HDD1, HDD3, HDD5
bottom left to right; HDD0, HDD2, HDD4, HDD6, HDD7)

2

DVD drive

5

Component status indicators

3

USB ports (left to right; 2, 3)

1

2

5

3

4
