Figure 4 – FUJITSU SPARC ENTERPRISE T5220 User Manual
Page 30
14
SPARC Enterprise T5120 and T5220 Servers Overview Guide • August 2007

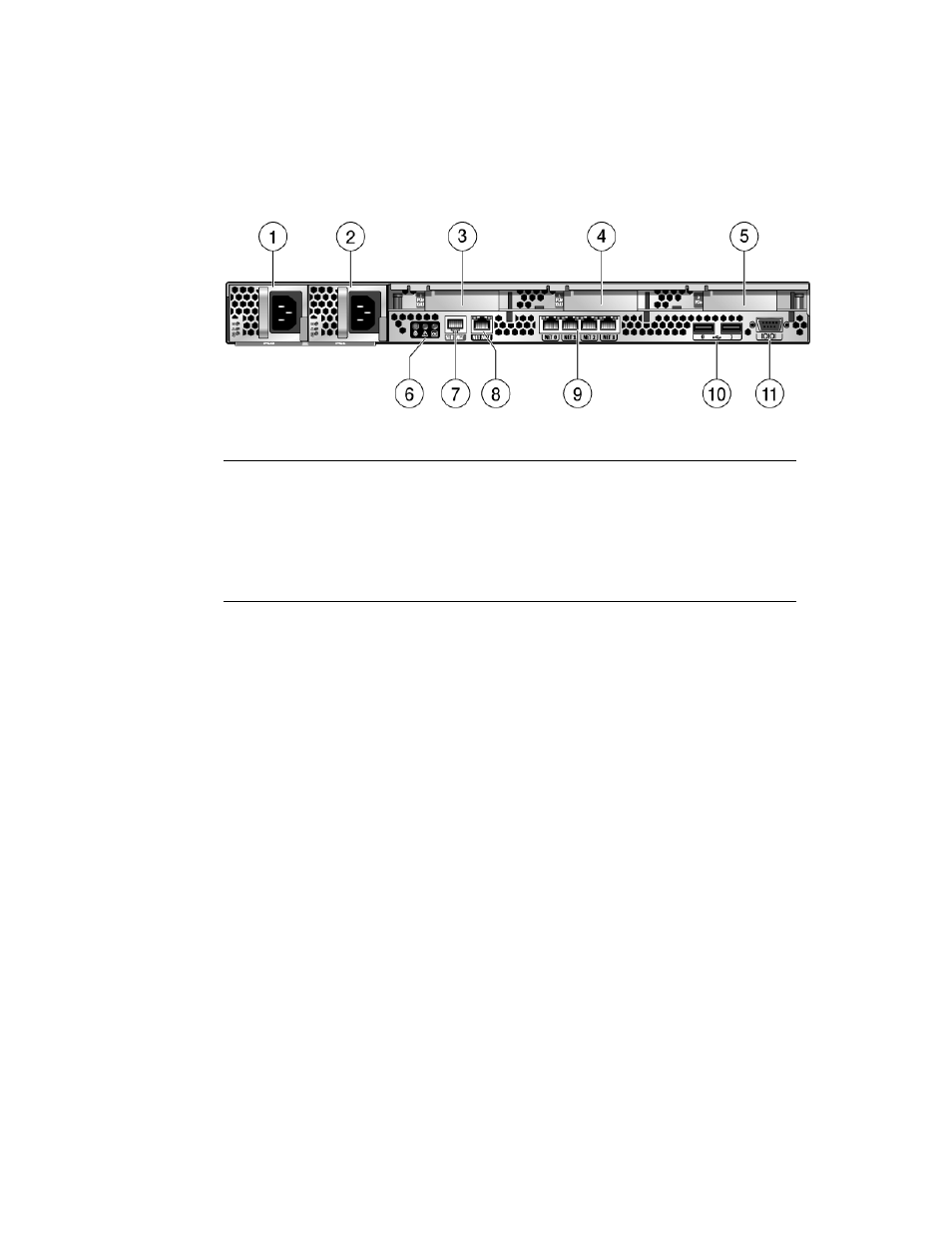

FIGURE 4
Rear of the SPARC Enterprise T5120 Server
Figure Legend
1
Power supply (PS0)
7
Serial System controller port (SER MGT)
2
Power supply (PS1)
8
Ethernet System controller port (NET MGT)
3
PCIe or XAUI slot 0
9
10/100/1000 Ethernet ports (left to right; NET0, NET1,
NET2, NET3)
4
PCIe or XAUI slot 1
10 USB ports (left to right; 0, 1)
5
PCIe slot 2
11 Host serial port, DB9 connector (POSIX compliant, TTYA)
6
System status indicators
