Solar powered motion sensor light, Model sh-7001, Features

Solar Powered
Motion Sensor Light

Model SH-7001

FeatureS

• Turns on light when motion is detected.
• Automatically turns light off.
• Photocell keeps the light off during daylight hours.
•

Battery Protection Circuitry. Unit will shut down when
battery is low. Unit will automatically resume operation
when battery is recharged to a safe level.

requireMentS

• Do not turn the light on before the battery is fully charged.

Charge the battery by keeping the switch in the OFF
position and the solar collector pointed directly at the
noon sun for 3 sunny days. If not fully charged, the unit
will not work.

• When FULLY charged, the solar light will operate a

maximum of 15 days without sunlight. Actual operating
time will vary depending upon how frequently the light
is triggered.

Light

Battery
Case

Sensor

3. Mounting Screws (2 sizes)

1. Solar Light Fixture

2. Solar Panel

Tapered Screw (3)

Round Head Screw (2)

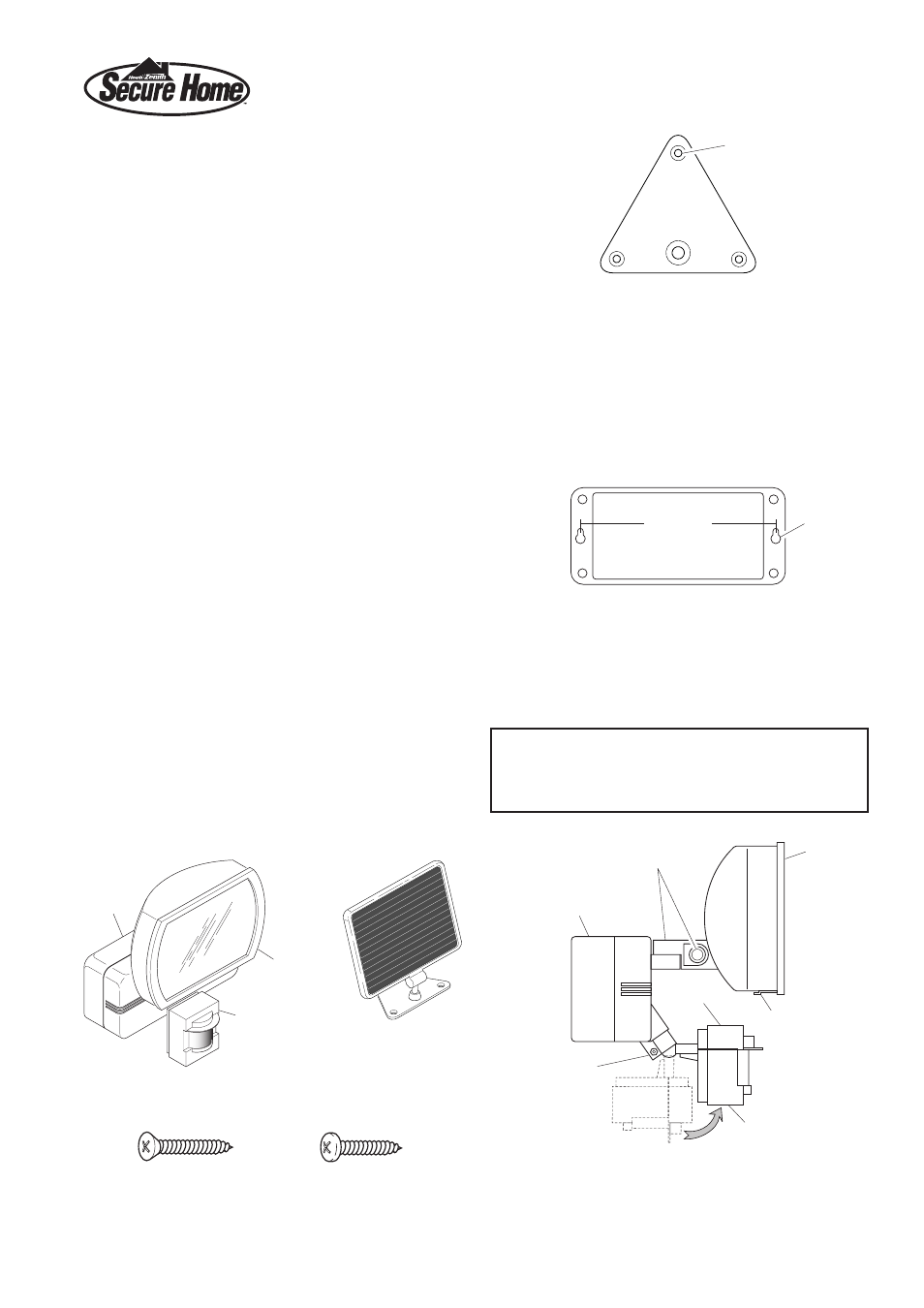

unPaCking

Be sure to remove all contents from packaging and verify
all items are present before assembling this light fixture.
This package includes the following items:

inStaLLatiOn

For best performance, mount the fixture about 8 feet (2.4
m) above the ground.

Mount solar panel base on a solid surface using
three tapered screws. Adjust the panel to point directly
at the noon sun. Avoid obstructions such as trees or
buildings that may block sun light. Allow for enough
wire to reach the case.

keep ball joint at bottom.

Note: You will want to re-aim the solar panel as the

seasons change to keep it pointed directly at the noon
sun.

Three Mounting Holes for Solar Panel Base

Mount the battery case on a solid surface using
two round-head screws and the keyholes on the
back of the case.

adjust sensor. For proper operation, the sensor
head must be rotated so that the sensor controls face
downward as shown below.

Mounting Holes (3)

Mounting
Holes (2)

4. Plug the solar panel cable into the bottom of the battery

case.

IMPORTANT: allow the battery to charge

with three days of sunshine before testing.

Controls

Light

Battery Case

Sensor Joint
Clamp

IMPORTANT: the controls must face downward to
avoid damage from rain. If controls face upward, move
sensor to the original down position, rotate 180°, then
raise to the position shown below.

Light Joint Clamps

Lense Removal
Tab

Sensor
