AllSync Plus Clock Installation
& Operation Manual
Glossary
Appendix B LED
Illumination
Appendix A
Specifications
Tr
oubleshooting
General
Operation
Installation
Intr
oduction
Installation

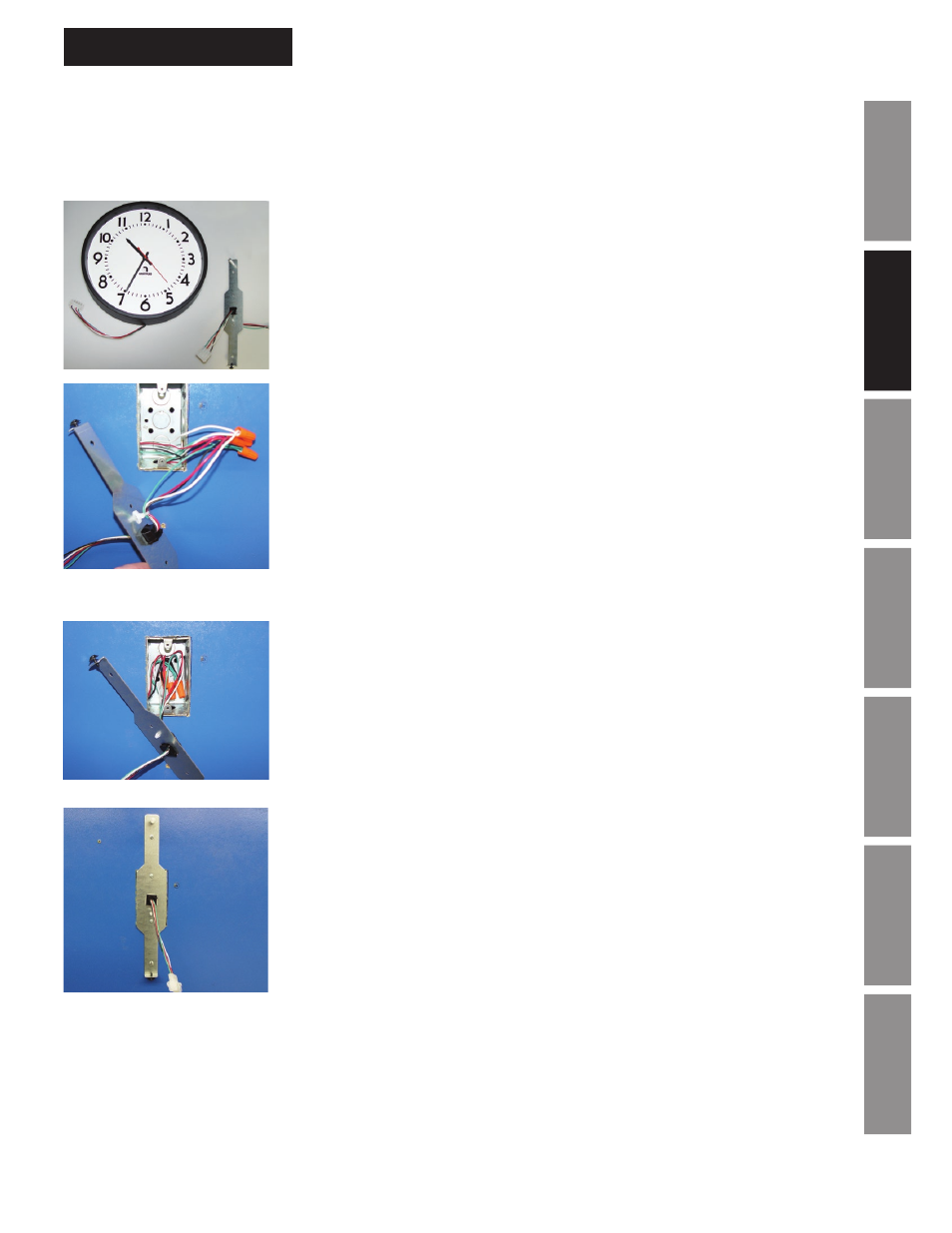

Plastic Surface Mount Clock Installation
Warning:
The AllSync Plus plastic surface mount clock should be mounted according to these instructions to meet
UL clock listing.
1. Remove the AllSync Plus clock, mounting bracket, and wiring harness
(if applicable) from the packaging.
2. Using UL approved wire nuts, make connections between flying
leads and wiring inside electrical box.
a. Black wire should be connected to hot (run) wire from the master.
b. Red wire should be connected to the correction line from the master
clock.
c. White wire should be connected to the neutral line.
d. Green wire should be connected to earth ground.
Note: All wiring connections should be made in accordance to local
and national electrical codes.
3. Bundle all wall wiring and female connector wiring inside back box
and place mounting bracket over back box opening.
4. Attach mounting bracket to back box and wall, ribbed post up.
5. Secure bracket to wall using appropriate mounting screw and anchor
for wall material. Screw and anchor are not included.
