AllSync Plus Clock Installation
& Operation Manual
Glossary
Appendix B LED
Illumination
Appendix A
Specifications
Tr
oubleshooting
General Operation
Installation
Intr
oduction
Installation

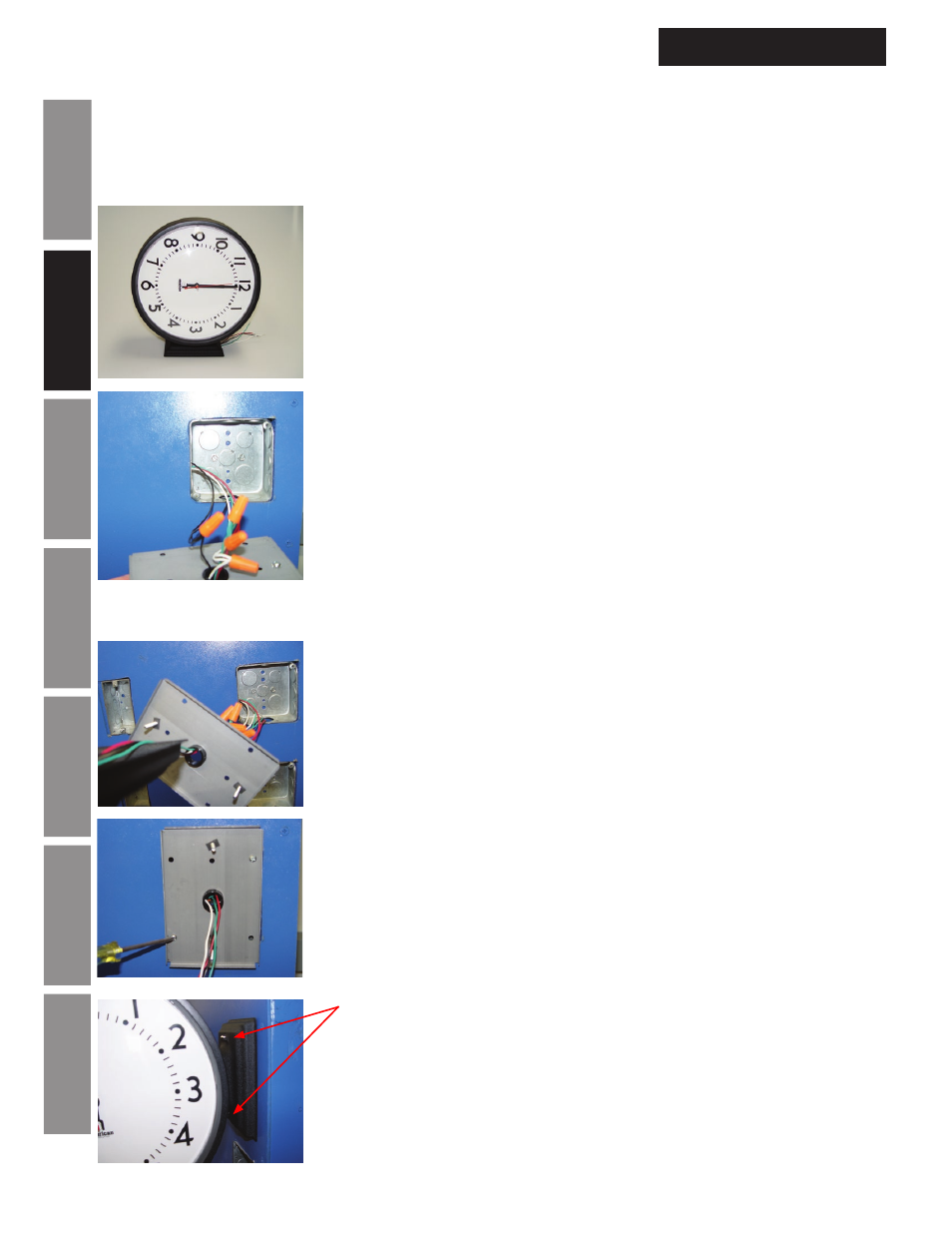

Plastic Double Dial Clock Installation
Warning:
The AllSync Plus plastic double dial clock should be mounted according to these instructions to meet UL
clock listing.
1. Remove the AllSync Plus plastic double dial clock from packaging.
2. Using UL approved wire nuts, make connections between flying leads
and wiring inside electrical box.
a. Black wire should be connected to hot (run) wire from the
master.
b. Red wire should be connected to the correction line from the
master clock.
c. White wire should be connected to the neutral line.
d. Green wire should be connected to earth ground.
Note: All wiring connections should be made in accordance to local and
national electrical codes
3. Remove box plate from double dial clock by removing acorn nuts at
base of clock.
4. Bundle wires inside electrical box.
5. Attach box plate to electrical box.
6. Connect clock to box plate using acorn nuts removed in step 3.
