TVE-400/800-1600 H.264 IP Video Encoder User Manual 3
Item Name Description
5. LAN Connect the 10M/100Mbps self-adaptive UTP Ethernet port to a
network.
6. Video In Connect up to 16 analog cameras (depending on model) to the
BNC connectors.
7. Audio In Connect an audio input to the RCA connector.
8. Audio Out Connect an audio output the RCA connector.
9. GND Connect to ground.
Connections
See Figure 2 on page 2 for information on connecting the power, camera, audio
and network cables.
Alarm connections
The TVE encoder supports the open/close relay input as the alarm input mode.
When the alarm input signal not in open/close relay signal mode, please follow
the connections shown below:

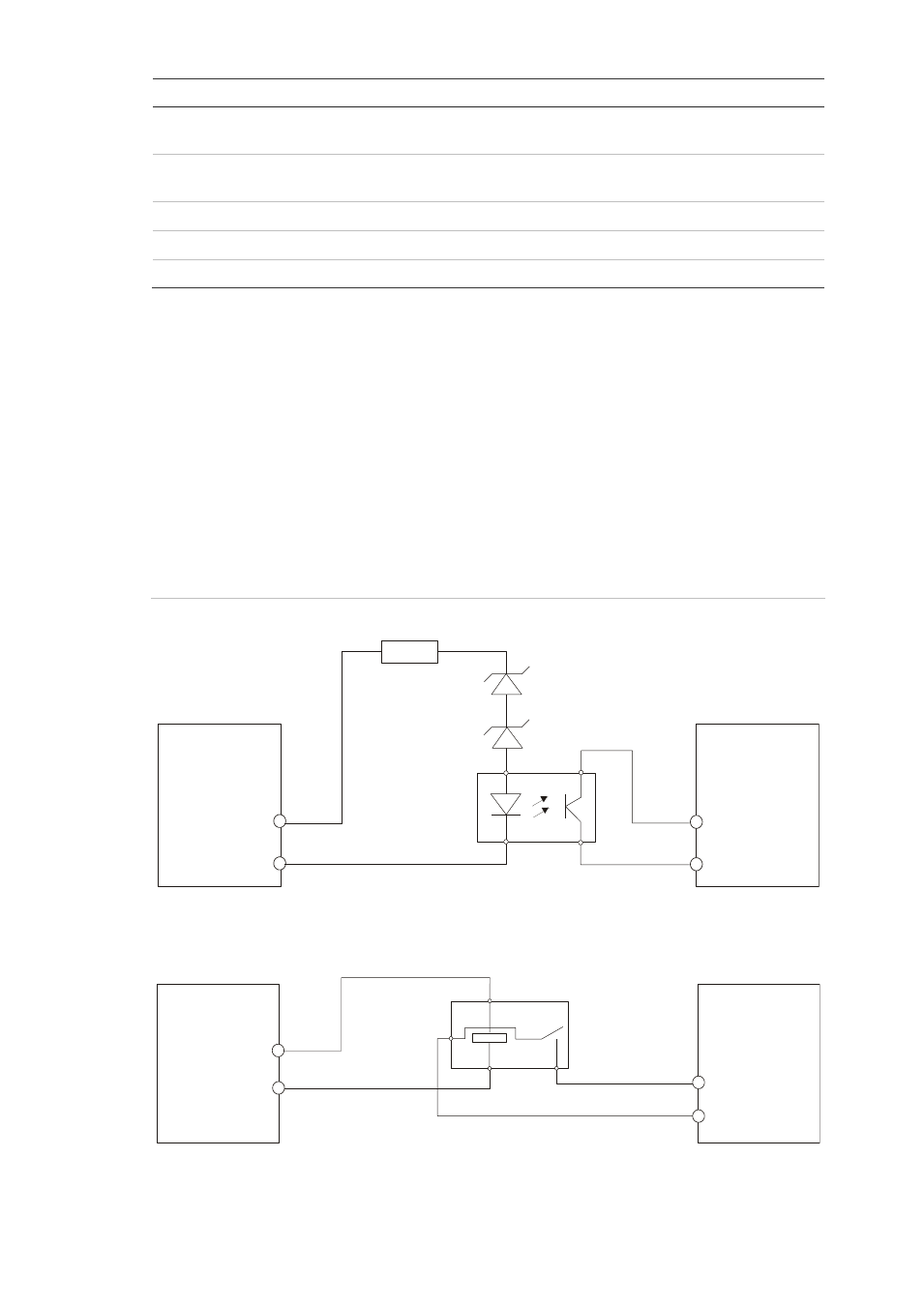

Figure 3: Alarm input connections
Alarm input connections for Emerson alarm:
100

ALM(-)
IN(n)
G
ALM(+)




TVE

Relay input V-output
Emerson alarm
10 V regulator

10 V regulator
14N34
optocoupler
Alarm input connections for normal alarm:
JQC-3FG
24 V relay
ALM(-)
ALM(+)


IN(n)
G

TVE
Relay input
V-output
Alarm

