TVE-400/800-1600 H.264 IP Video Encoder User Manual
Live view
Live view mode is the normal operating mode of the device where you watch live
images from the cameras. The encoder automatically enters into live mode once
powered up. On the viewer, you can see the current date and time, camera
name, and whether a recording is in progress.
Description of live view

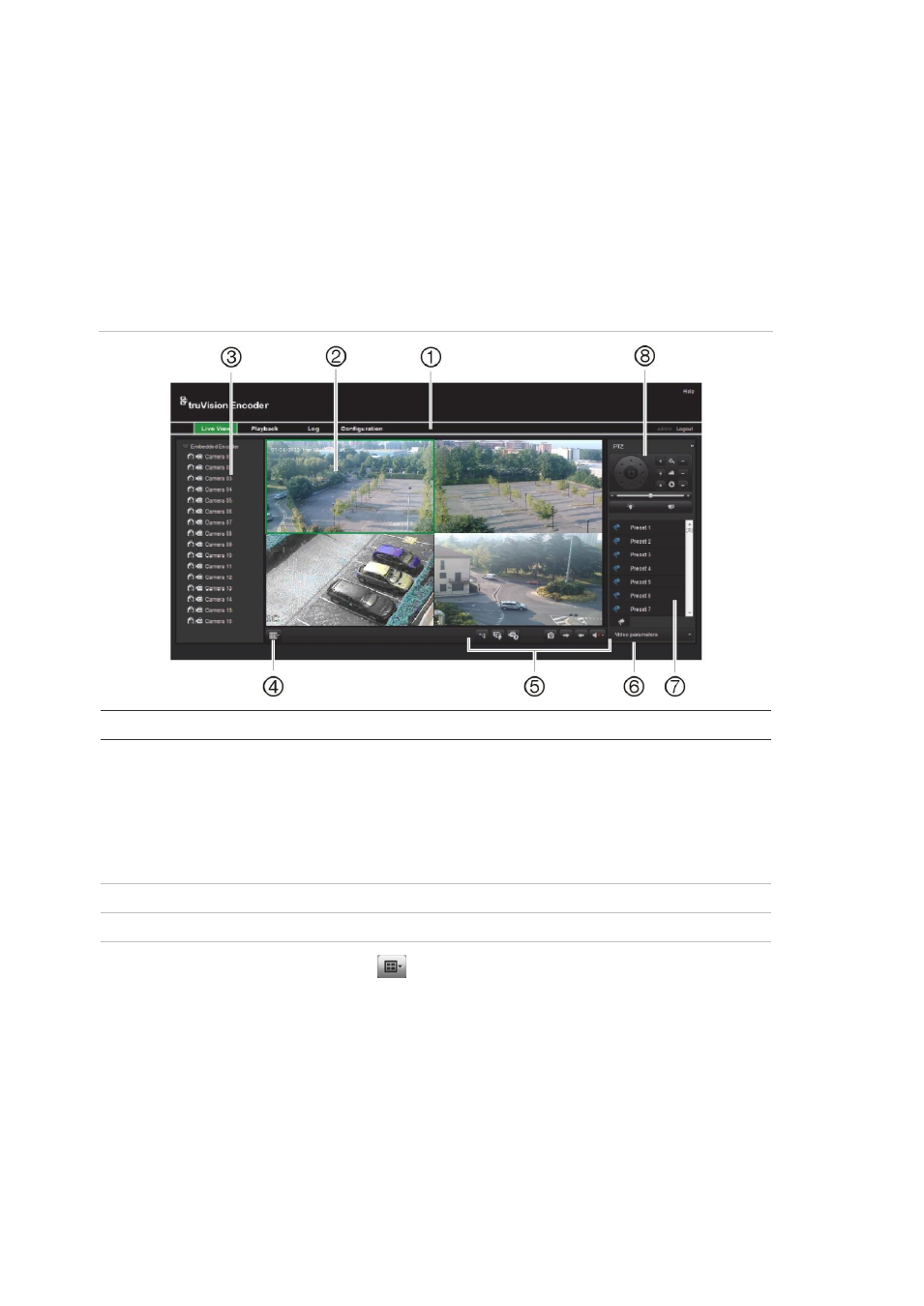

Figure 6: Live view
Item
Name
Description
1.
Menu toolbar
Lets you do the following:
•
View live video
•
Play back video
•
Search for event logs
•
Configure settings
•
Exit the interface
2.
Viewer
View live video.
3.
Device list
Display the encoder and its channels.
4.
Display format
Define how you want video to be displayed in
the viewer; full screen, 2X2, 3X3 or 4X4 (2X2
shown above).
When in multiview mode, double-click on a video
tile to get full-screen mode. Double-click again to
return to multiview mode.
