PUMP SET-UP
A submersible electric water pump is used to supply water to the polishing wheels as coolant and
lubricant. The pump has a flow control adjustment on one side and should be adjusted for maximum
water intake (fig 23). It is recommended that a 5 gallon bucket be used as a water reservoir into which
the submersible pump should be placed. The level of the reservoir water should be monitored so that
water pump always remains fully submerged.

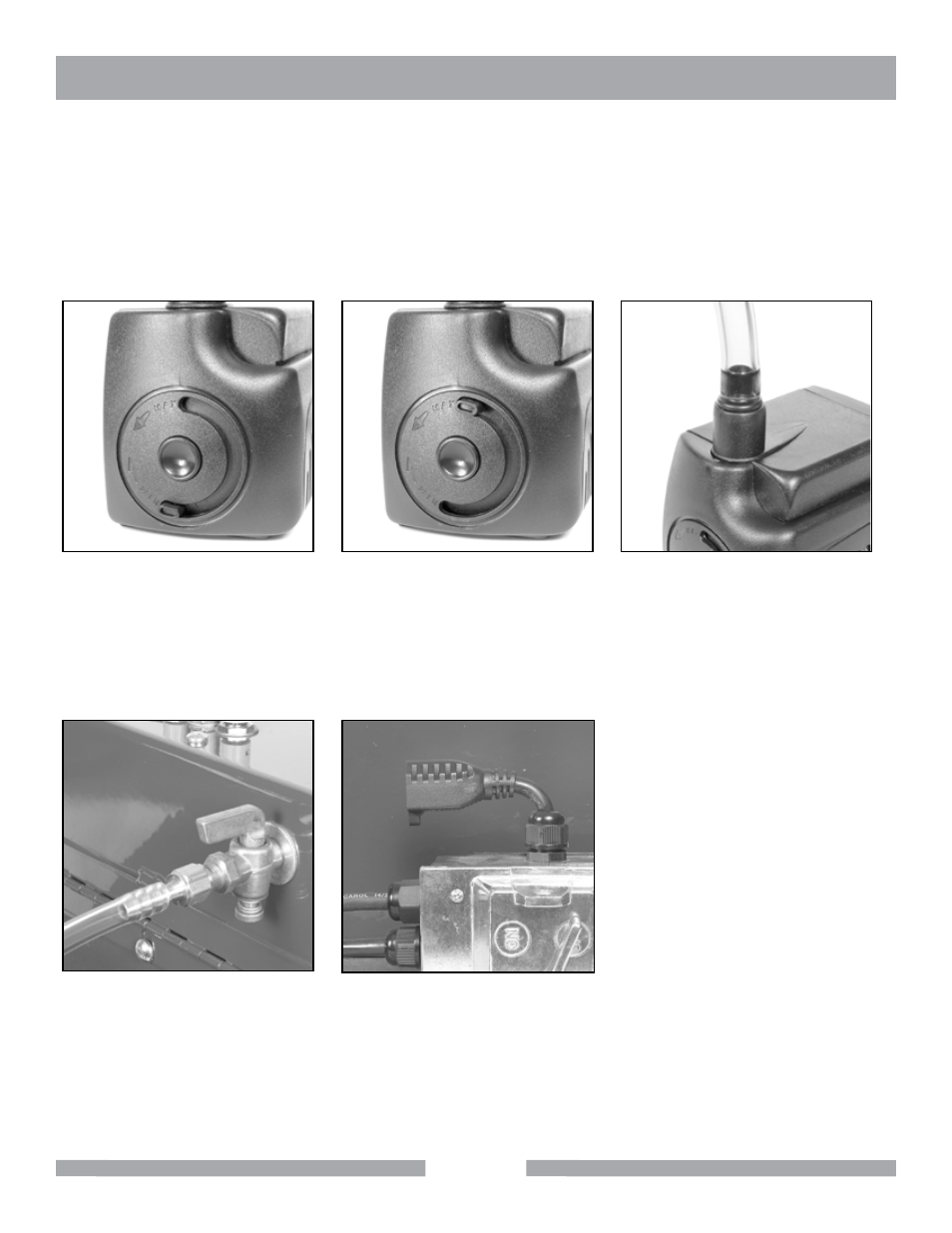

Fig 22 - Pump inlet adjustment set to
minimum flow
Fig 23 - Pump inlet adjustment set to
maximum flow
Fig 24 - Water pump hose attached to
pump outlet
Connect the pump to the brass ON/OFF barbed lever valve at the rear of the hood with the included
1/4" ID water hose. Insert one end of the 1/4" ID water hose over the water pump outlet (fig 24) and the
other end over the barbed end of the water control lever valve inlet (fig 25).
Fig 25 - Water control inlet valve with
valve in the open position
Fig 26 - Electrical outlet for water
pump
The pump can be plugged into the female receptacle plug accessory attached to the main switch box
(fig 26) when using the Cab Combo Workshop. Power to run the pump will occur once the switch box
lever is placed in the ON position. The pump should be operated in maximum flow setting. This will
allow sufficient water to reach the brass valve inlet on the rear of the hood to provide water to each of
the three needle valve knob controlled water tubes to each of the three work stations.
