PRE-START
Remove the belt guard and check to see that the belt is properly tensioned. Finger tip pressure on the
belt (halfway between the motor and drive shaft pulleys) should show approximately 1/2" of belt de-
flection (fig 14). If the belt requires adjustment, loosen the motor mounting bolts and move the motor
slightly toward the saw to decrease belt tension or away from the saw to increase belt tension. Tighten
the motor mount bolt and recheck the belt tension. When the belt is properly tensioned, check that all
motor mount bolts are securely tightened and replace the belt guard.
Check all 4 motor mount bolts (fig 15), motor arbor pully setscrew (fig 16), blade/wheel shaft pully
setscrew (fig 17), belt guard mounting nuts and saw table mounting machine screws to make sure they
are tight.

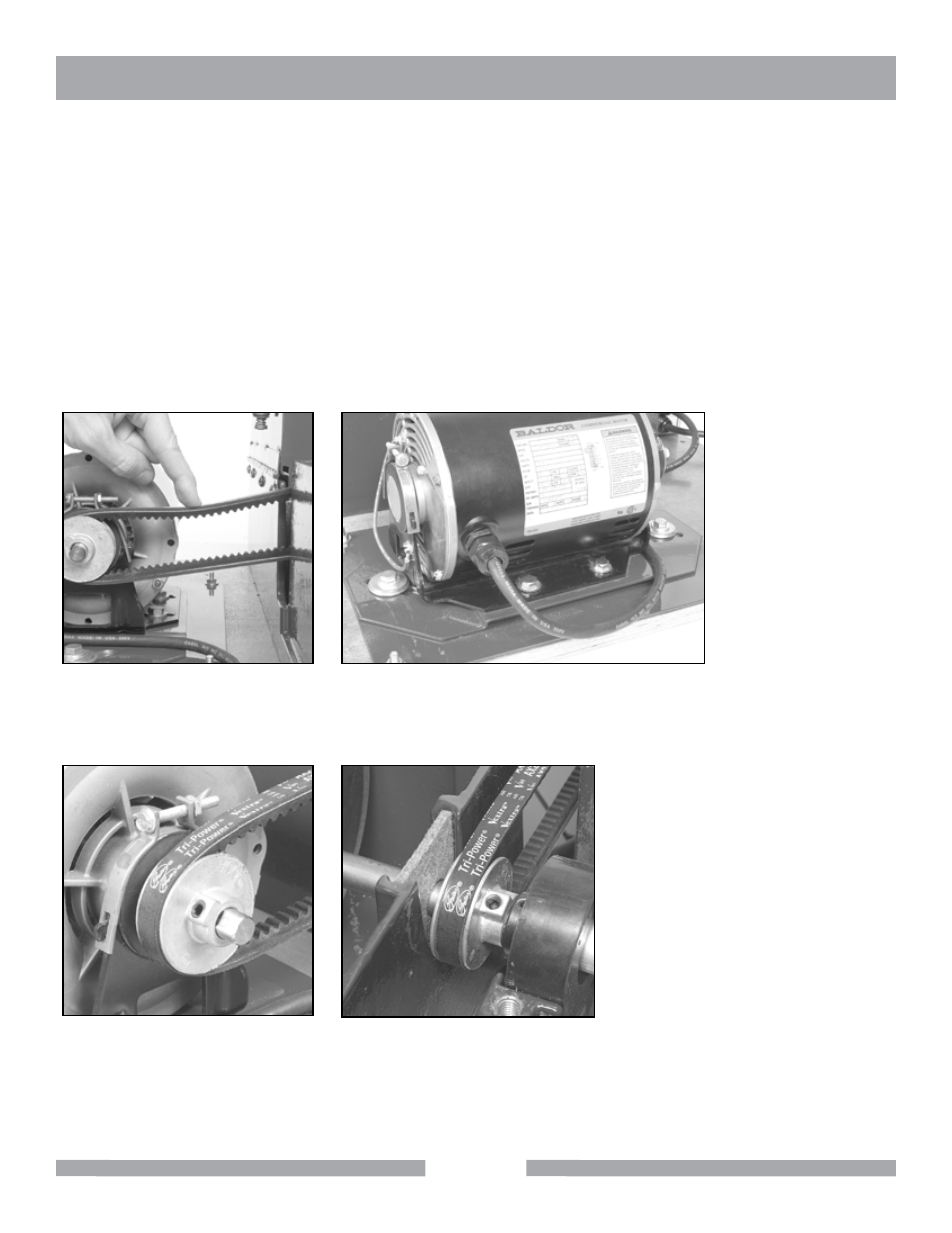

Fig 14 - Checking belt deflection Fig 15 - Motor mount bolts (one on either side of the
motor and two under the rear of the motor)
Fig 16 - Motor arbor pulley Fig 17 - Blade/wheel shaft pulley
