IMPORTANT!

Note all previous settings as it will be necessary

to reset your PC after the Network Receiver is configured

4. Click on the Specify an IP Address option button and

enter

192.168.1.199

as the IP address and

255.255.255.0

the subnet mask

5. Click

and follow the prompts

NOTE

It may be necessary to reboot your PC after making the

above changes.

6. Using a standard CAT5 cable (not included), connect

directly from the Ethernet port on the PC to an empty port

on a standard hub. The Ethernet port will be located on

the back or side of your PC, and is the connection to your

building network. Using another standard CAT5 cable

(not included), connect from the RJ45 connector on the

front of the Network Receiver (labeled RJ45) to an empty

port on the hub (Figure 12).

Hub

RJ-45 to RJ-45 cable

(Not supplied)

IP Receiver

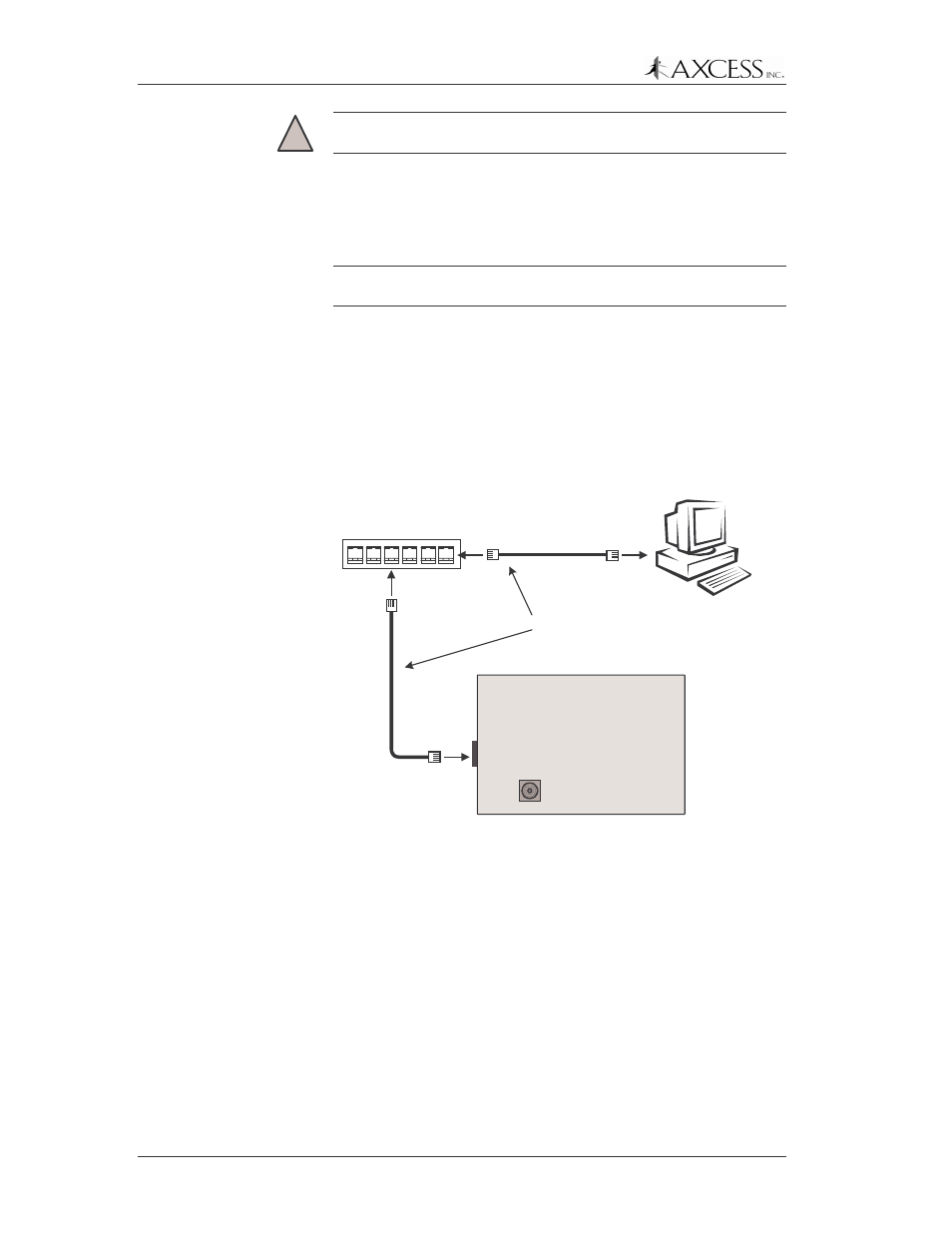

Figure 12 Connecting to the network via a Hub

7. Continue as described in items 7 through 13 under

instructions for using a Crossover cable to connect to the

network.
