Viewing Configuration Settings
To view the current configuration settings of the Receiver, type: 38 c
An example of how the receiver will respond:
04 Serial Activators
127|33|34|106
04 Wiegand Activators
127|33|34|106

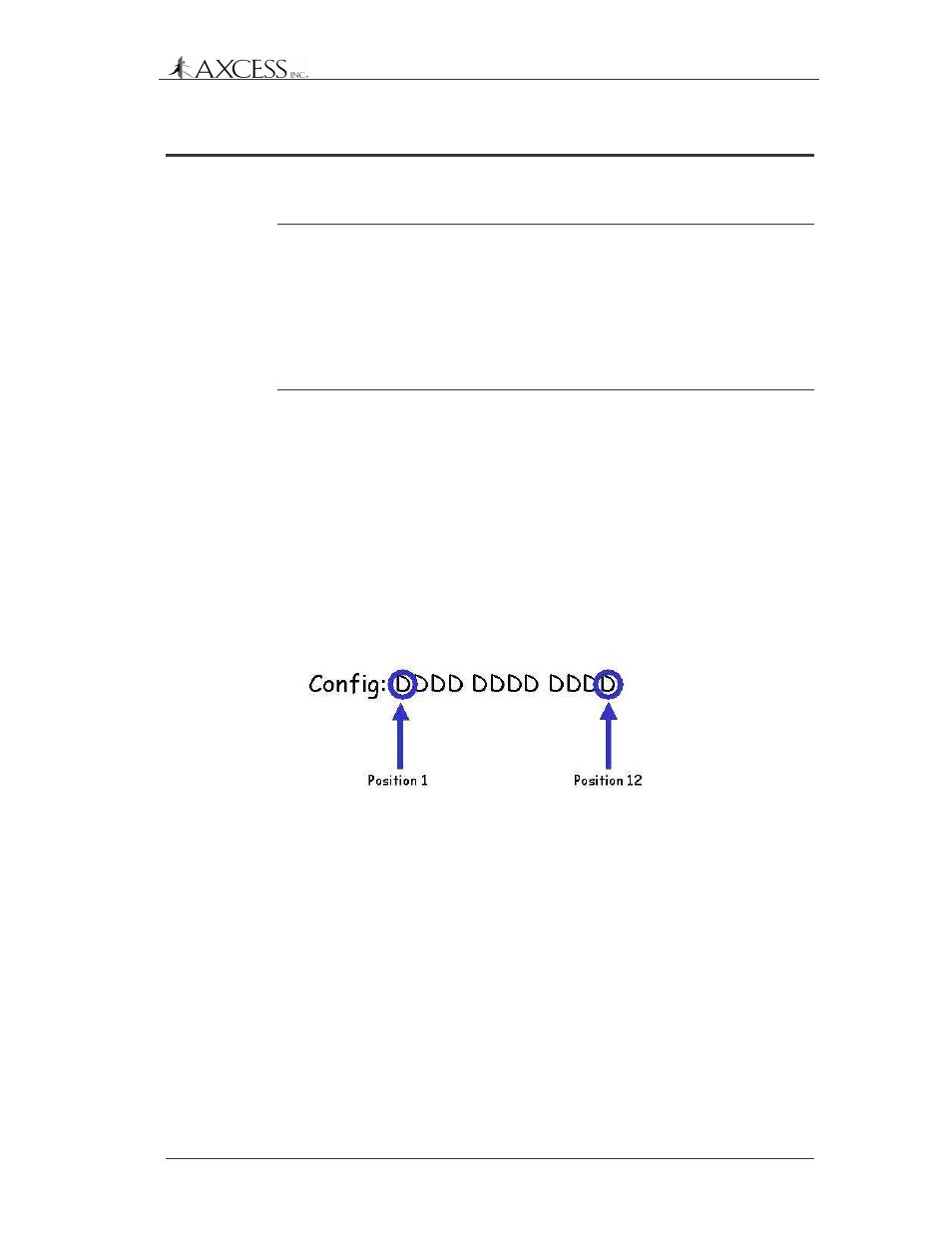

Config: DDDD DDDD DD*D D=005 E=005 I=001 L=125 T=013 W=127
Serial Activators
Lists the Activator ID’s which are passed out the RS-32 and TCP/IP
ports when the Serial list is enabled (by default this list is enabled).
Wiegand Activators
Lists the Activator ID’s which are passed out the Weigand port when
the Wiegand list is enabled (by default this list is disabled).
Config
Current settings on the receiver unit. Each D or * represents one
setting on receiver. D = Default * = Changed setting)
Default Settings
1. Wiegand data output on alarm, when enabled any alarm read
from a tag (Activator ID 000 ) will cause the tag information to be
output the Wiegand port. Default OFF “12c”
2. TTL output 1 on alarm, when enabled any alarm read from a tag
(Activator ID 000 ) will cause TTL 1 to be triggered. Default OFF
“13c”
3. TTL output 2 on alarm, when enabled any alarm read from a tag
(Activator ID 000 ) will cause TTL 2 to be triggered. Default OFF
“14c”
4. Wiegand data output, allows the user to disable or enable the
Wiegand output. Default ON “15c”
