Transportation, Storage
Transport and Storage conditions
The system must be protected against mechanical impact,
vibrations, dust deposits and corrosive ambient air during
transportation and storage. It is also important to ensure that the
relative humidity does not exceed 80%.
The appliance must be completely emptied before storing and
transportation.
In case of repair the device has to be cleaned and free from any
materials which may constitute a health hazard.
Unpacking
Please unpack the system components carefully and check for
any damage. When you unpack the equipment, check for any
damages which may have occurred during transportation.
In the case of any damage a fact report must be sent immediately
(post, rail or forwarder).
If you require servicing, return the appliance in its original
packaging. Storage packaging is not suffi cient. Please also use
suitable transport packaging.
Scope of delivery
• IKA
® C1 Calorimeter
• Power supply unit
• Operating instructions
• Inflow conduit
• Return conduit
• Discharge hose
• Round cable clamp
• Connection tube
• Venting hose
• Mains cable
• 5 O-ring FPM 11,0 x 2,0
• 2 O-ring FPM 6,0 x 2,0
• 2 O-ring FPM 15,0 x 2,0
• 5 O-ring FPM 10,0 x 2,5

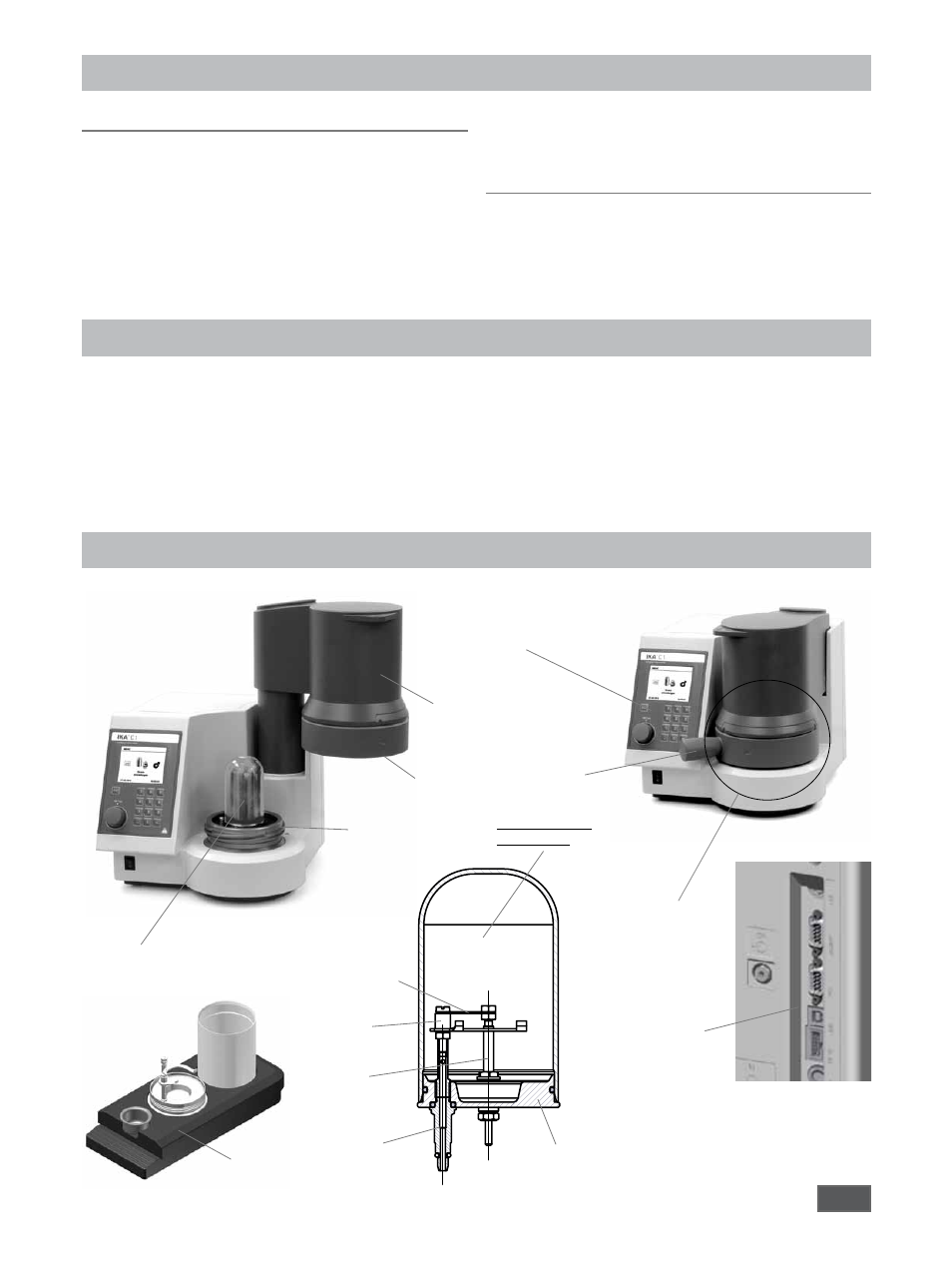

Description of the system components
Interfaces on
rear of the unit
Controller unit with
display, Multifunctional
element and keybord
Inner vessel (IB)
Manual,
pivotable lift
A
A
A-A
Base
Ignition wire
Ground electrode
Ignition
electrode
Crucible
holder
Sectional view
inner vessel
Measuring cell as
a pressure vessel
Rotary
handle Threaded nut
Threaded base
• 5 O-ring FPM 8,0 x 2,5
• 5 O-ring FPM 4,0 x 1,5
• 1 O-ring FPM 3,1 x 1,6
• 5 O-ring FPM 3,0 x 1,5
• 5 O-ring FPM 48,0 x 2,0
• 1 Quad-Ring NBR 92,0 x 4,5
• 3 Quad-ring NBR 6,07 x 1,78 • C1.103 ignition wire
• C1.104 water bath additive
• C723 Benzoic acid
• 2 Double open ended spanner DIN 3110
• 1 Double open ended spanner DIN 895
• 4 base
• O-ring-grease Molykote 55
• Handle
