Route microphone signals from the microphone to the
ICs as a differential pair, ensuring that the positive and
negative signals follow the same path as closely as pos-
sible with equal trace length. When using single-ended
microphones or other single-ended audio sources,
ground the negative microphone input as close as pos-
sible to the audio source and then treat the positive and
negative traces as differential pairs.
An evaluation kit (EV kit) is available to provide an exam-
ple layout for the IC. The EV kit allows quick setup of the
IC and includes easy-to-use software allowing all internal
registers to be controlled.
WLP Applications Information
For the latest application details on WLP construction,
dimensions, tape carrier information, PCB techniques,
bump-pad layout, and recommended reflow tempera-
ture profile, as well as the latest information on reliability
testing results, refer to the Application Note 1891: Wafer-
Level Packaging (WLP) and Its Applications. Figure 43
shows the dimensions of the WLP balls used on the
MAX98088.

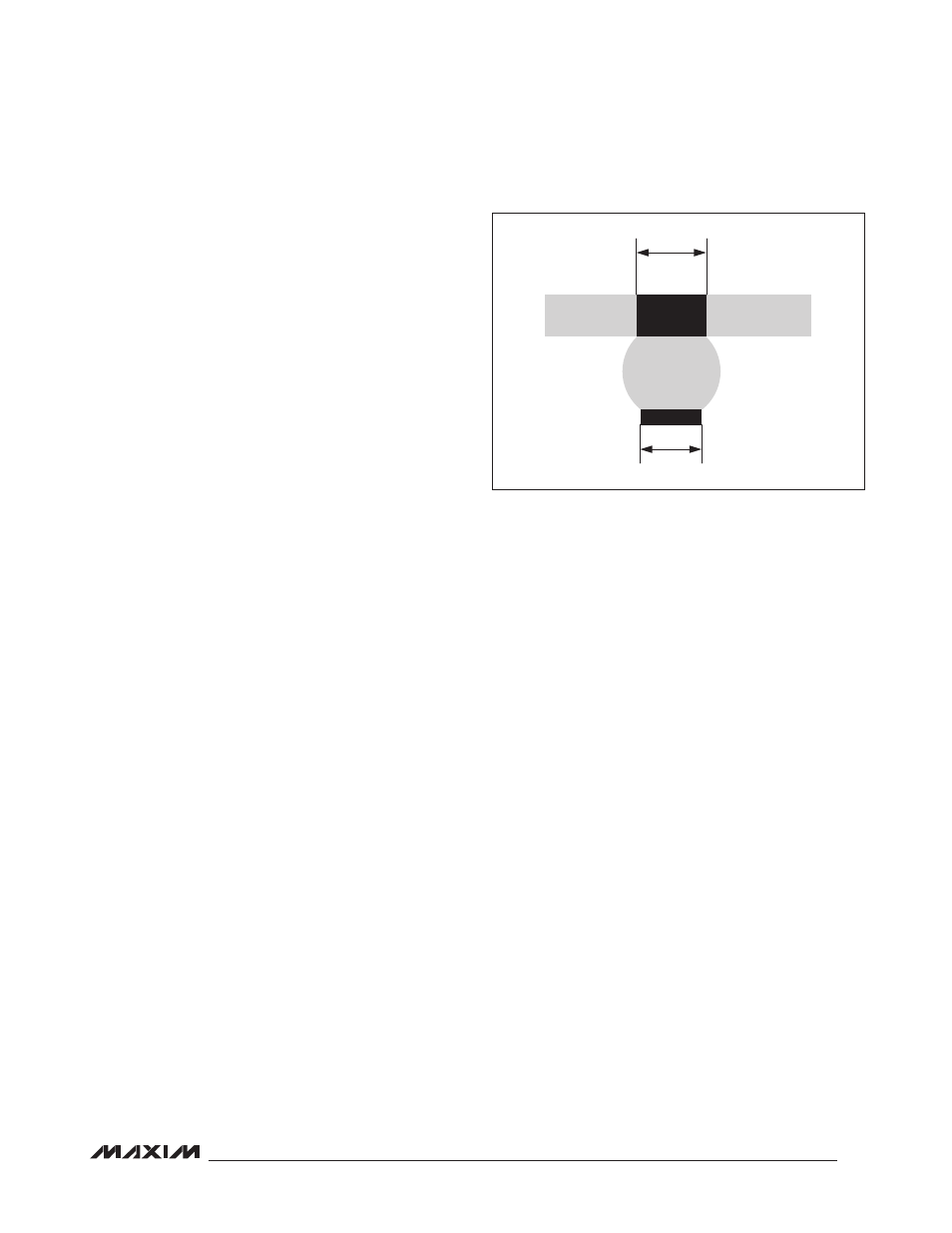

Figure 43. WLP Ball Dimensions
0.24mm
0.21mm
