Connecting Your Local Network 3-5
EtherWave
To add the Netopia Router to your EtherWave daisy chain, use a
10Base-T cable with RJ-45 connectors. The router can be connected
to your EtherWave network at any point in the daisy chain.

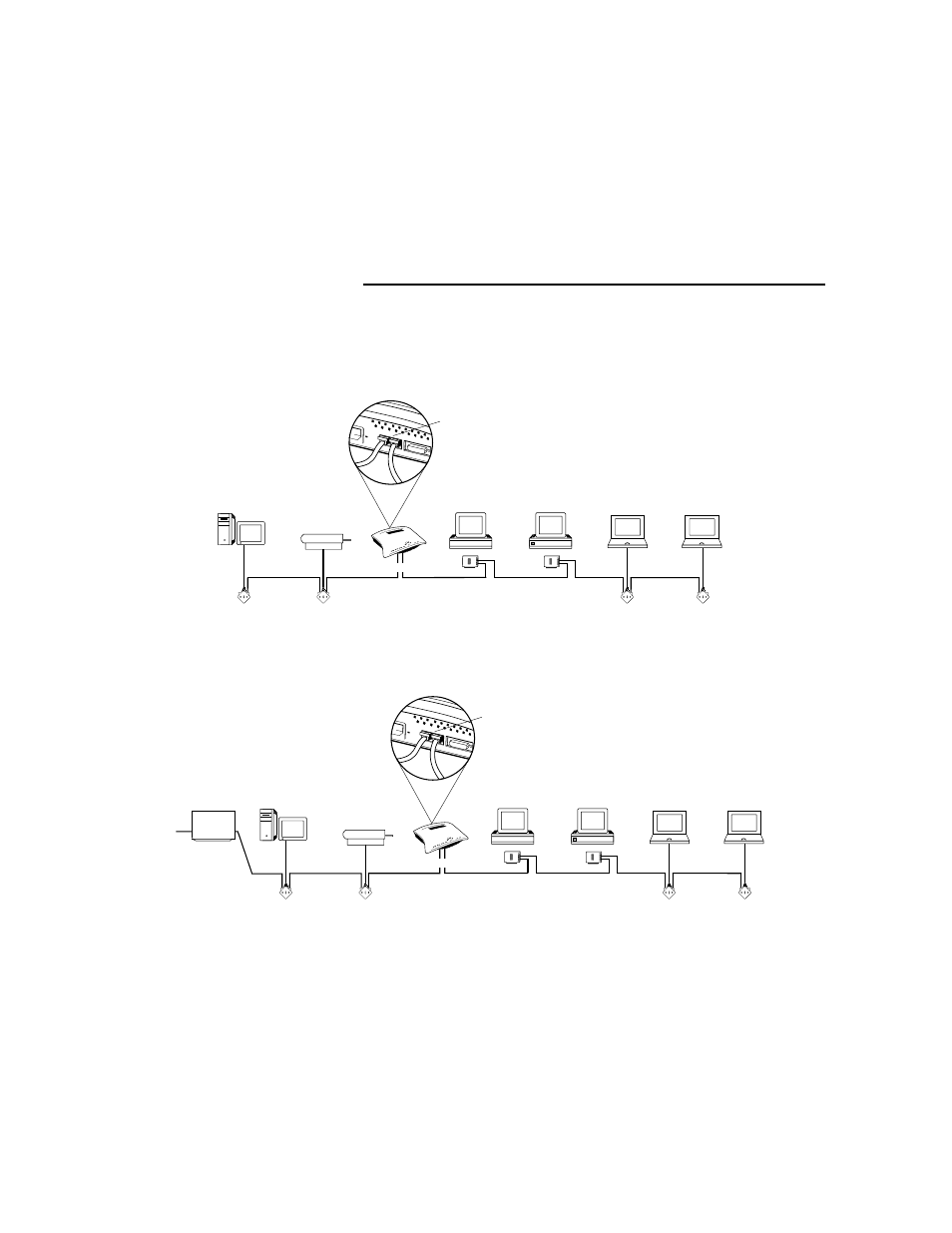

The Netopia Router in the middle of an EtherWave daisy chain
The Netopia Router in the middle of an EtherWave daisy chain that’s part of a
larger network
EtherWave
EtherWave
Mac/PB
Adapter
EtherWave
AAUI Transceiver
EtherWave
ISA Card
EtherWave
NuBus Card
EtherWave
Printer Adapter
LaserWriter PC Macintosh Macintosh PC PowerBook
EtherWave
Transceiver
Netopia SRC SRC
EtherWave
EtherWave
Mac/PB
Adapter
EtherWave
AAUI Transceiver
EtherWave
ISA Card
EtherWave
NuBus Card
EtherWave
Printer Adapter
LaserWriter PC Macintosh Macintosh PC PowerBook
EtherWave
Transceiver
Netopia SRC SRC
10Base-T
HUB
