Single RS/6000 SP and Single SP Switch Router
175
page 175 and Table 17 on page 175. The netmask for all interfaces is
255.255.255.0.

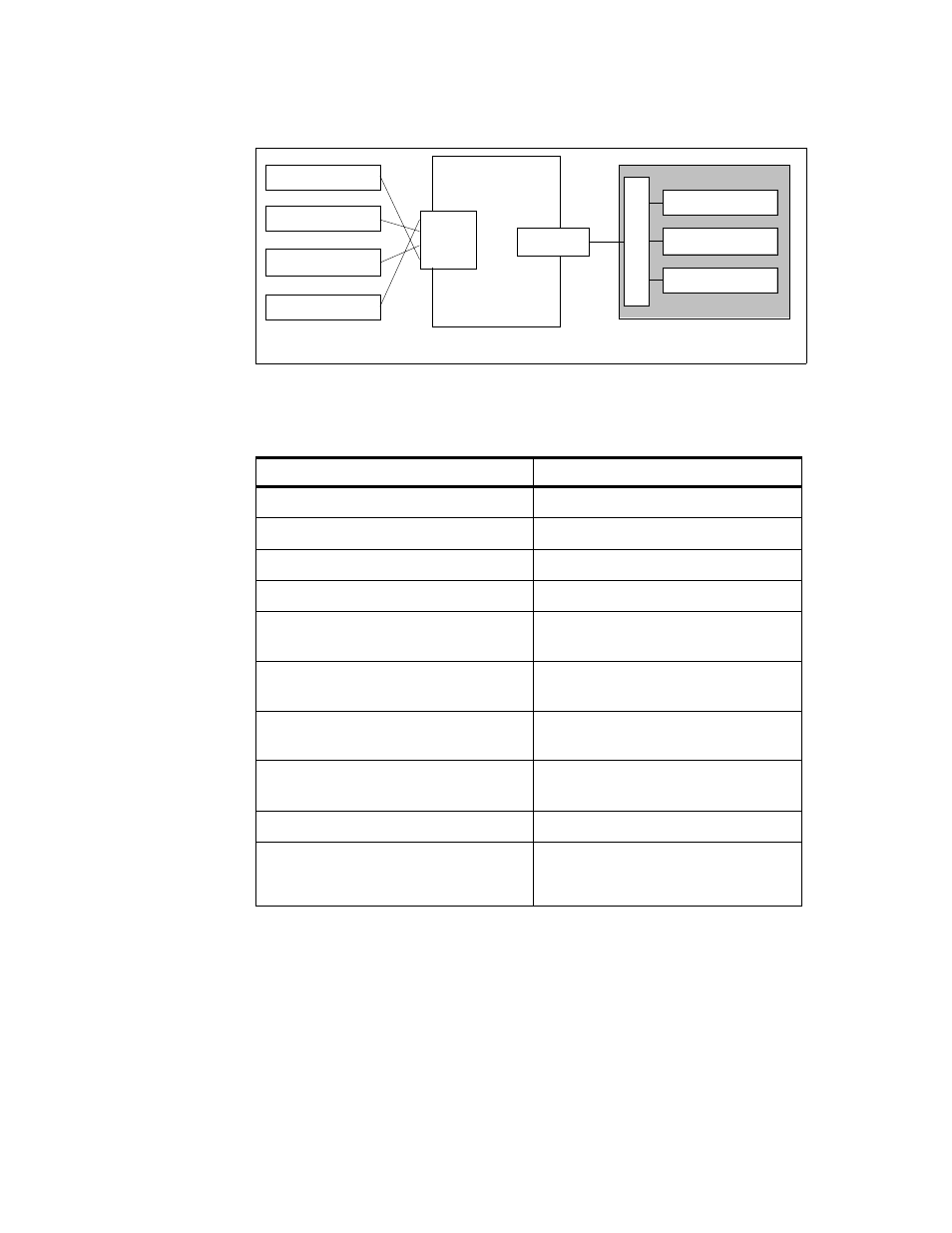

Figure 56. SP Switch - FDDI Connection
Table 17 shows the IP addresses used in our configuration.
Table 17. Configuration of SP Switch - FDDI Connection
Adapter
IP Address
FDDI interface in node 9
10.5.1.9
FDDI interface in node 10
10.3.1.10
FDDI interface in node 11
10.4.1.11
FDDI interface in node 12
10.2.1.12
SP Switch Router FDDI media card
(port A0)
10.2.1.15
SP Switch Router FDDI media card
(port A1)
10.3.1.16
SP Switch Router FDDI media card
(port B0)
10.4.1.17
SP Switch Router FDDI media card
(port B1)
10.5.1.18
SP Switch Router Adapter card 1
192.168.14.4
SP processor nodes in SP21
192.168.14.1 - 192.168.14.15
(See
Appendix A, “Laboratory Hardware and
Software Configuration” on page 233.)
node 11
SP node
SP Sw
it
c
h
GRF 1600
SP node
FDDI
A 0
B 1
B 0
A 1
SP21
node 12
node 10
node 9
S P S witch Router
A dapter c ard 1
SP node
