DataSafe NAS User’s Manual
118

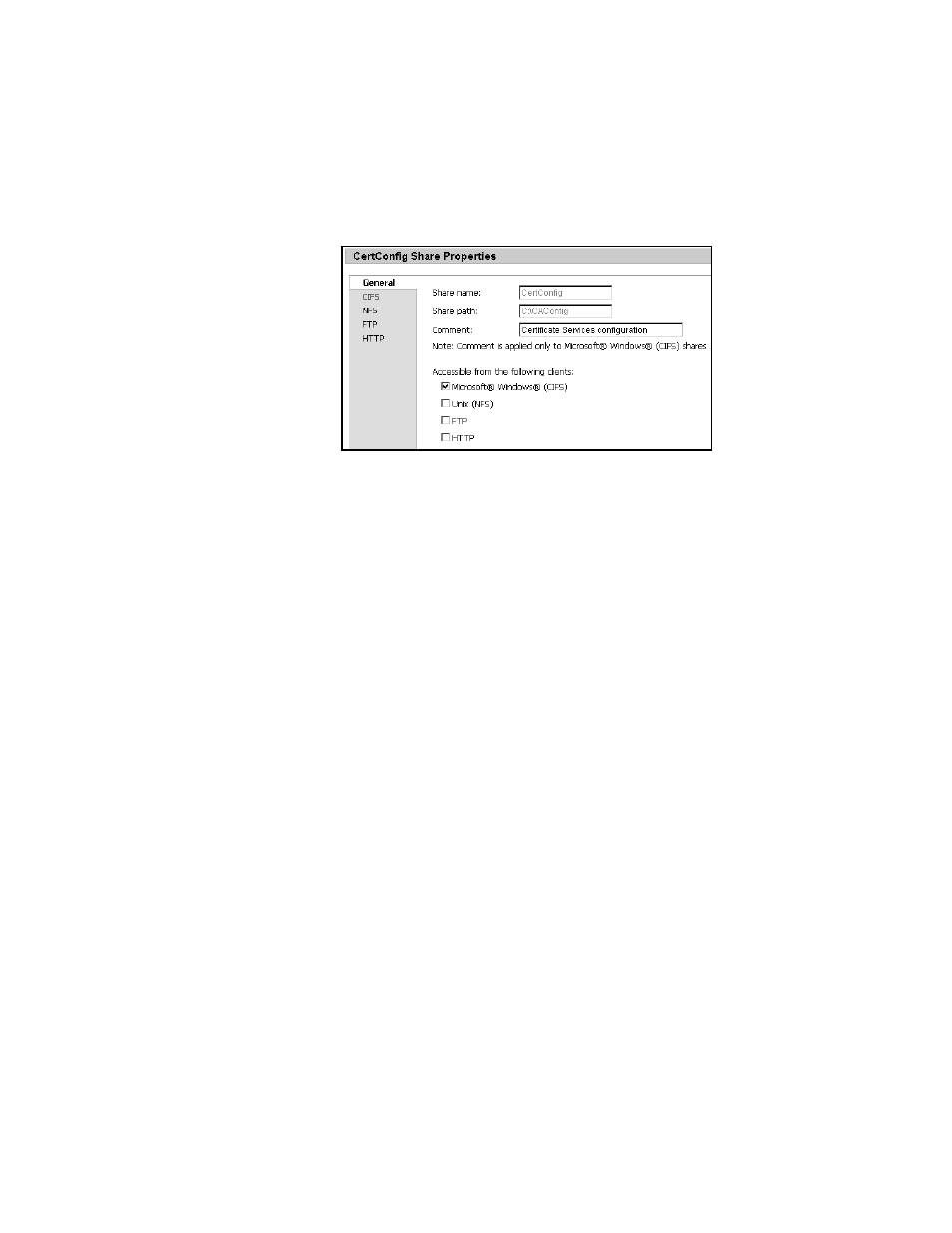

Figure 51 Share Properties
5. Uncheck the protocol(s) to remove from the share.
6. Click
OK
to confirm the deletion, or click
Cancel
to keep the share.
Modifying Windows or UNIX Share
Properties
Use the
Shared Folders
window to view and modify
share properties.
To modify Windows or UNIX share properties
1. On the primary menu bar, click
Folders and
Shares.
2. Select
Windows and UNIX Shares.
3. In the
Object Selection
table in the
Shared
Folders
page (Figure 49 on page 115), select the
share for which the properties will be modified.
4. In the
Tasks
list, click
Properties
.
