SCOM-100, User guide
27
7. Monitoring capabilities
7.1 Monitoring commands
The following command invokes a response about device state and active I/O
information:
5100
A typical response SMS is:
UNIT:My SCOM-100
MODE:MONITOR
Door contact (DI 0,1):OFF
Several commands are available for monitoring the actual device configuration, I/O
status and device status. See 9.1.6 command summary for more information on
monitoring commands.
7.2 Connecting a PC
The SCOM-100 device can be connected to a PC via the device’s serial port and
special serial cable.
7.2.1 Using the Hyperterminal for configuration

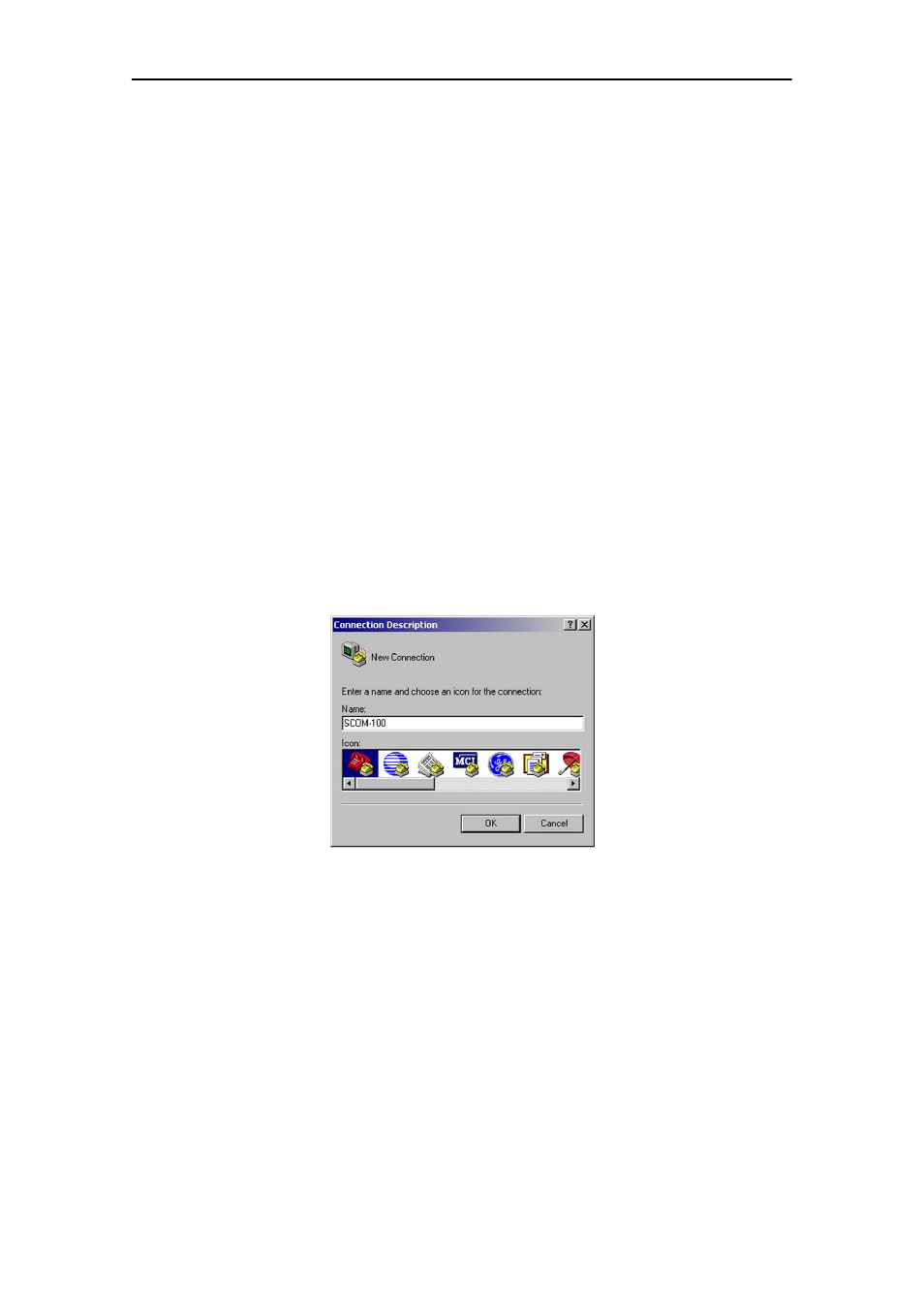

Connect the SCOM-100 unit to a PC. Open the HyperTerminal and set up a new
session.
Press OK to create a new connection.
