SMART 216 / 232 IP
9
9. Connecting the system

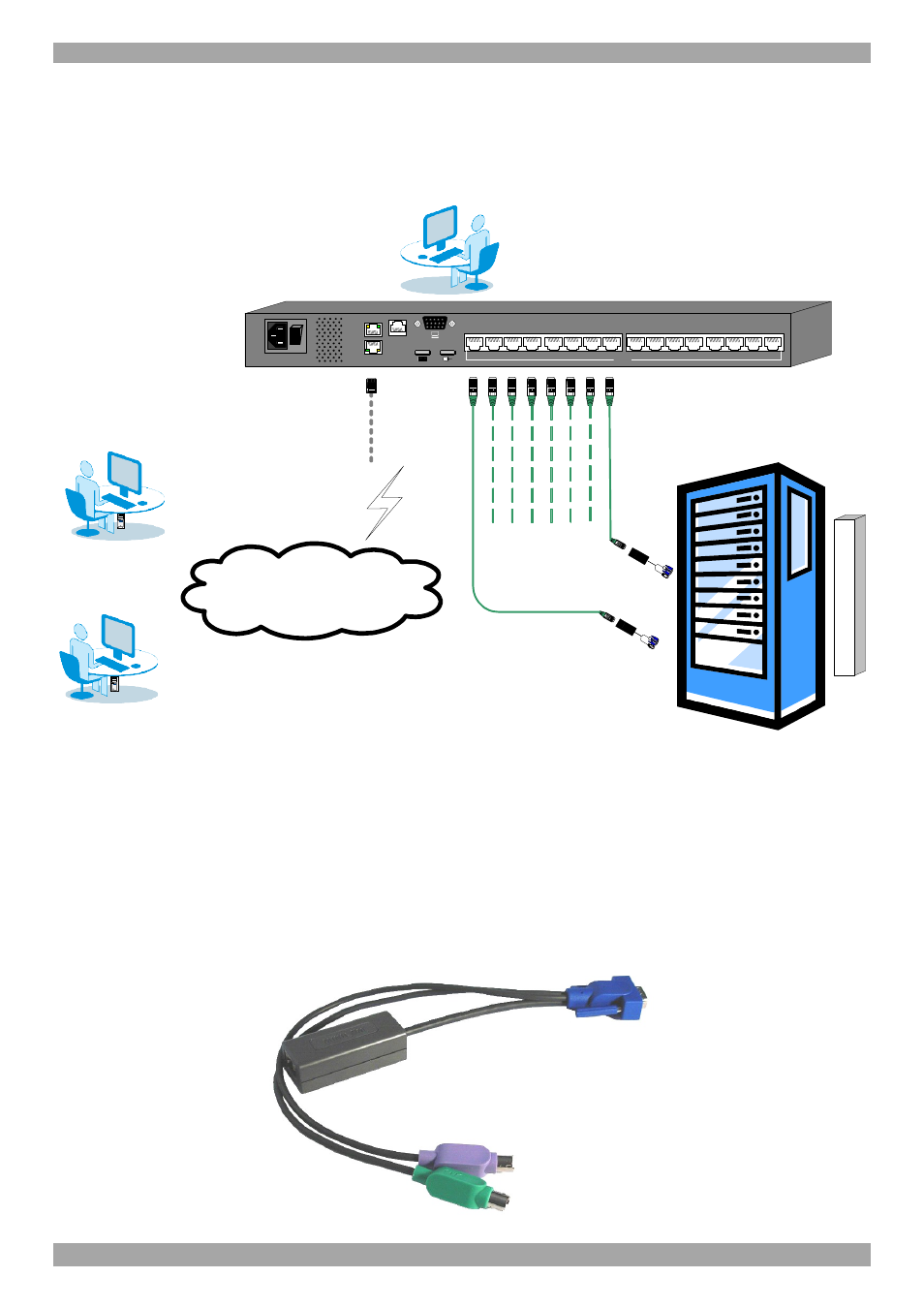

Figure 6 illustrates the Smart 216 / 232 IP system overview.
User 2 over IP
Internet / VPN / LAN
To servers
To LAN port
ROCs
POWER
100-240 VAC 50/60 Hz
I
0
1
2
3
4
5
6
7
8
LOCAL USER
LAN
SERIAL 1
10
11
12
13
14
15
16
9
SERIAL 2
SERVER
User 1 over IP
Local User
PDU
Figure 6 Smart 216 / 232 IP system overview
9.1 The ROCs
Each computer/ server is directly connected to the Smart 216 / 232 IP via the
appropriate RoC using CAT5 cable in a star configuration. No external power is
needed at the remote ROCs. The ROCs draw their power from the computer’s
keyboard port (ROC PS/2) or from the USB port (ROC USB). The figures below
illustrate the ROC PS/2 and ROC USB.
To computer’s
keyboard port
To computer’s
mouse port
To computer’s
Video card
Figure 7 ROC PS/2
