HP BladeSystem c3000 Enclosure – Rack

HP BladeSystem c3000 Enclosure – Tower

Power supply bay numbering

Power supply bay numbering

Power Supplies & Fans must be placed in the following bays

Power Supplies & Fans must be placed in the following bays

Power Supplies & Fans must be placed in the following bays
Number of Fans

Number of Fans

Fan Bays Used

2,4,5, 6

all bays filled

Number of Power Supplies

Number of Power Supplies (for PS Redundant or non-redundant
mode)

Power Supply Bays Used

1 & 2

1, 2, & 3

1, 2, 3, 4

1 through 5

All bays

Number of Power Supplies

Number of Power Supplies (For AC Redundant mode)

Place Power Supplies in bays:

1 & 4

1, 2, 4, & 5

all bays filled

NOTE:

NOTE: With four fans, the enclosure will support only 4 half-Height Server blades in the bottom half of the enclosure device bays.
With six fans, all 8 server bays may be filled.
NOTE:

NOTE:

NOTE: For correct operation, fans and server blades must be installed in the correct bays. The Onboard Administrator will ensure
that fans and blades are correctly placed before allowing systems to power on.

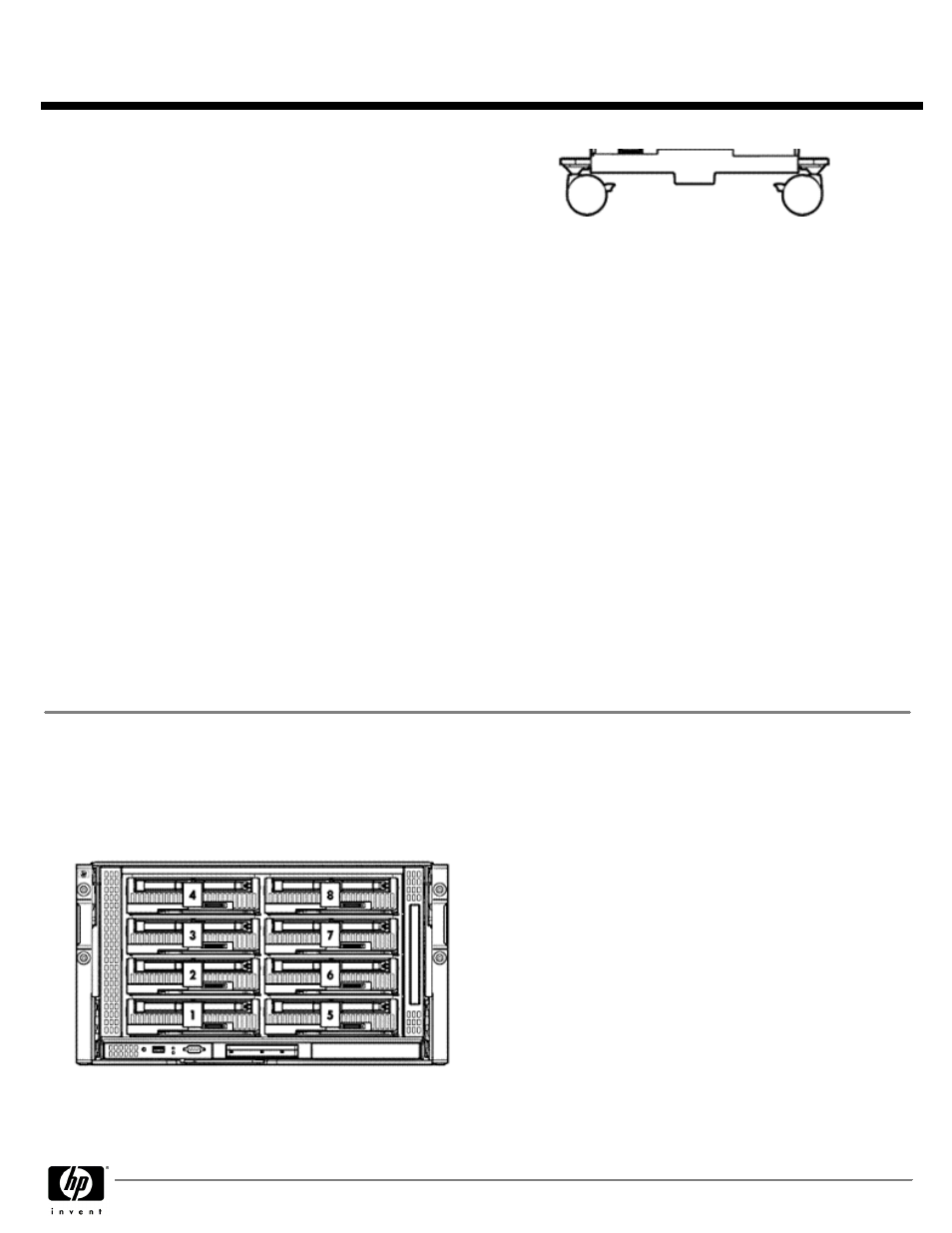

Half-height server blade bay numbering
