Installing the Fibre Channel to SCSI Router for the
NonStop NS-Series Server

M8201R Fibre Channel to SCSI Router Installation and User’s Guide — 529971-005

3 -3

Installation

3. Connect one end of the fiber cable to the small form-factor pluggable (SFP) on the

unit. See

Figure 3-3

for the location.

4. Attach the power cord to the AC power receptacle on the Fibre Channel to SCSI

router. See

Figure 3-3

for the location. Then plug the other end into an AC power

outlet.

Note. The router does not have protection against lightning surges. Customers in high risk
areas should use external surge protection rated for use in their location and be able to handle
the power demand of the router.

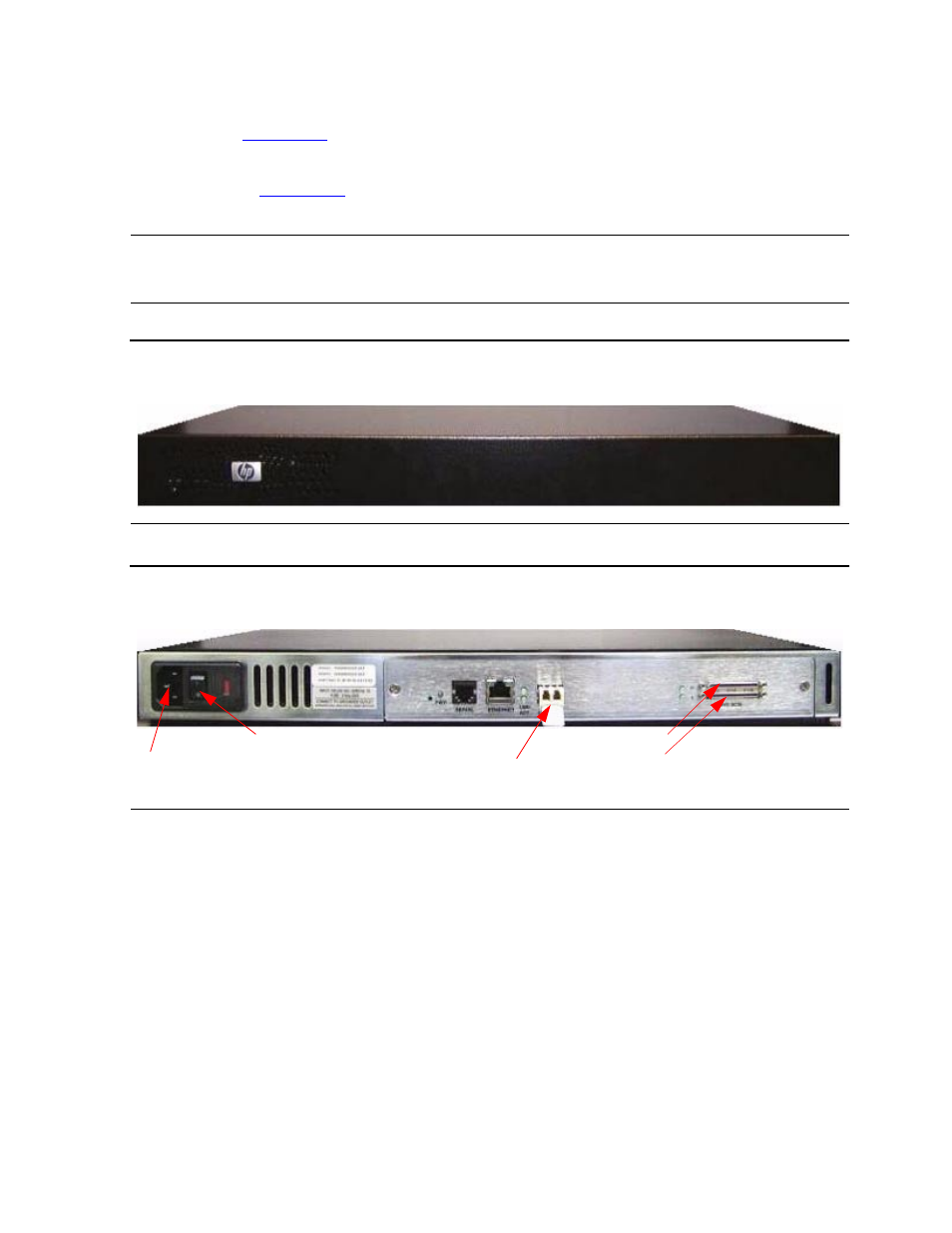

Figure 3-2. Front View of the Fibre Channel to SCSI Router

Figure 3-3. Rear View of the Fibre Channel to SCSI Router

Port 0
Port 1

Small Form-Factor
Pluggable (SFP)

Receptacle

AC Power

Power
Switch
