Getting Started
M8201R Fibre Channel to SCSI Router Installation and User’s Guide — 529971-005
2 -5
Installation Procedure With Ear Brackets
8. If you are mounting the Fibre Channel to SCSI router in the rack with the ports
facing inside the rack (shown in Figure 2-4 on page 2-6) or with the ports facing
outside the rack (shown in Figure 2-5 on page 2-7), attach the front of the mounting
brackets to the rack using two of the #M6x12 Phillips screws for the front of each
ear bracket. Tighten the screws securely.

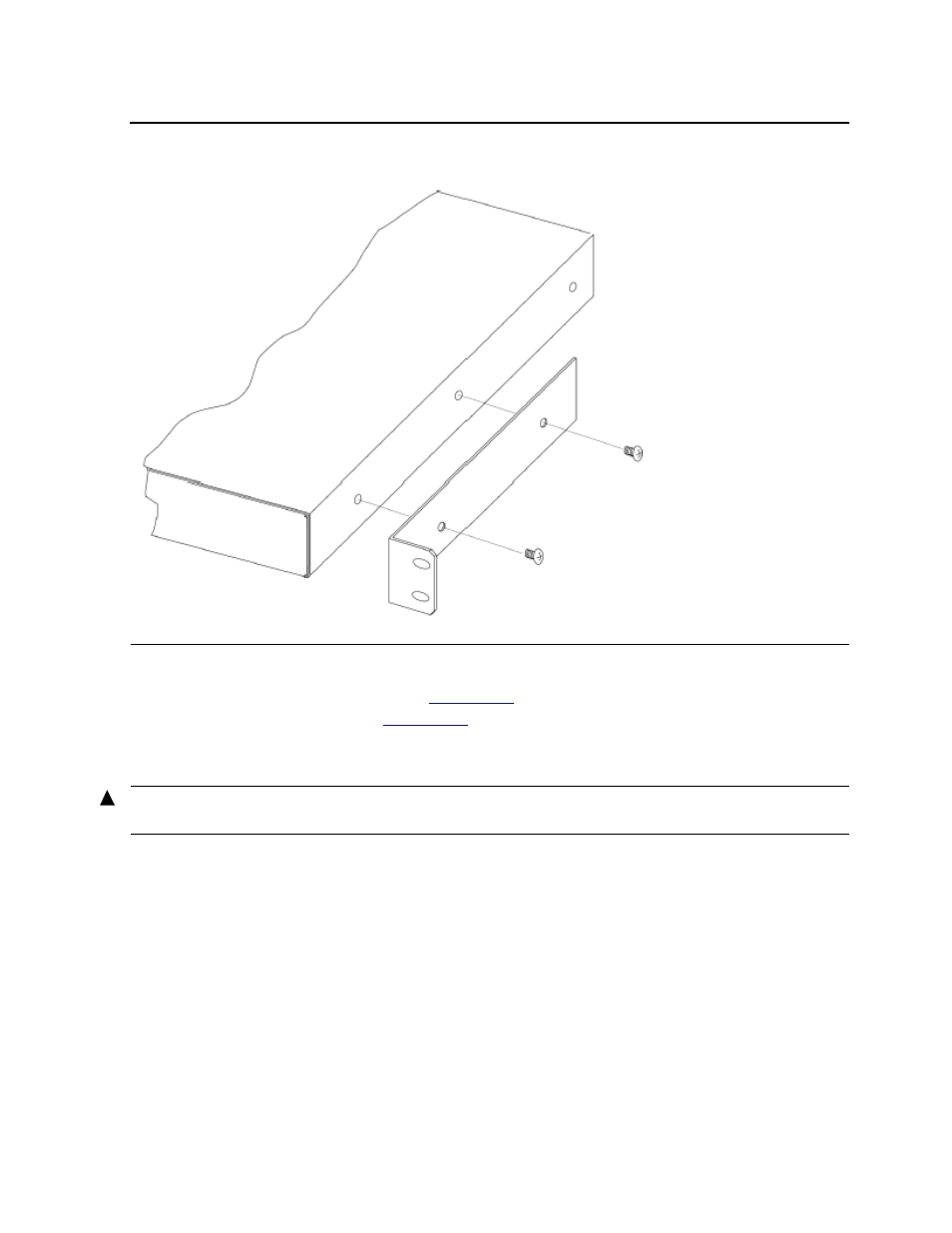

Figure 2-3. Attaching Ear Brackets
WARNING. To reduce injury or equipment damage, the mounting brackets must be level. If the
brackets are not level, the Fibre Channel to SCSI router cannot be installed correctly.
