16
CONNECTING EXTERNAL VIDEO SOURCES

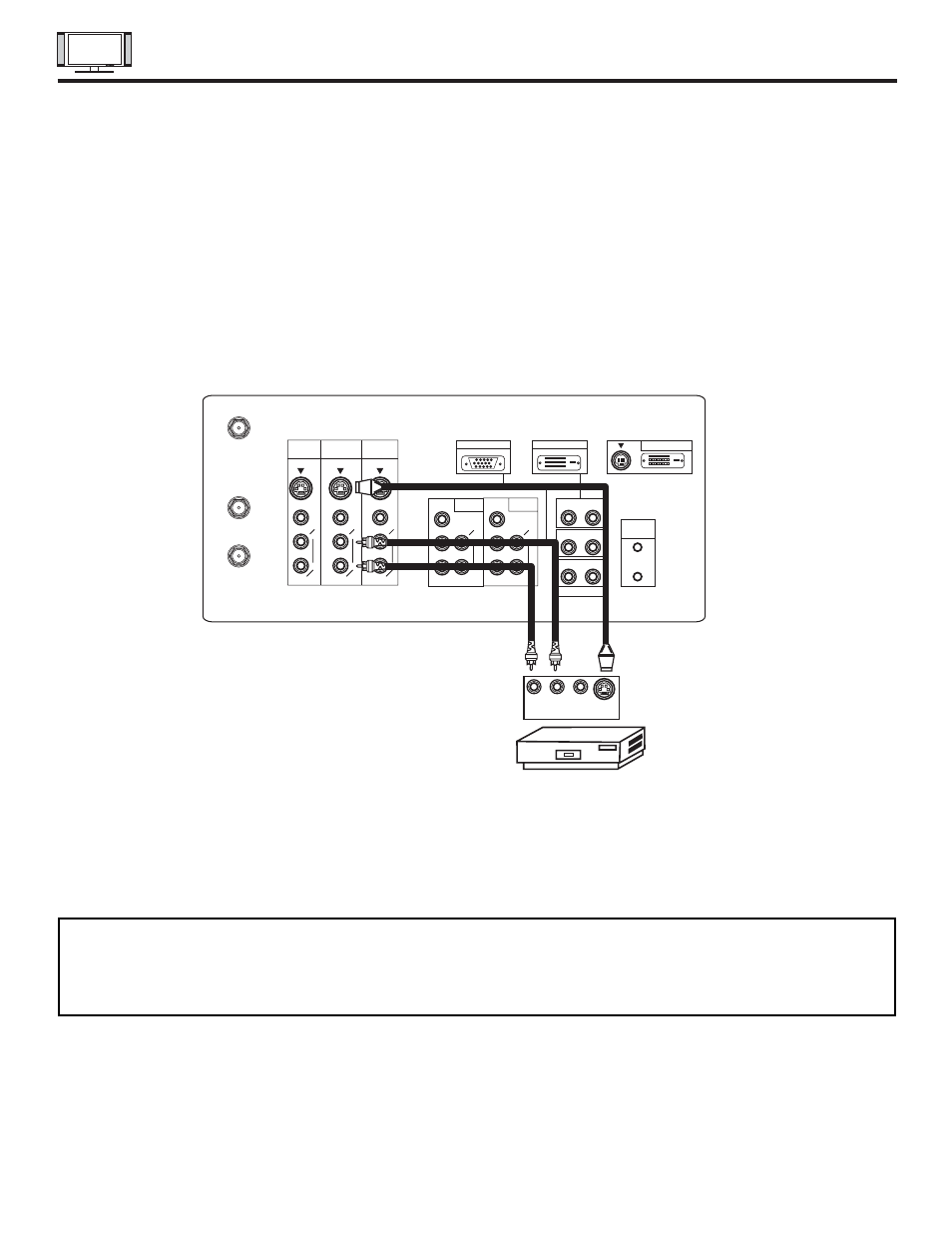

CONNECTING S-VIDEO VCR OR LASERDISC PLAYER
1.
Connect the cable from the S-VIDEO OUT of the S-VHS VCR or the laserdisc player to the INPUT (S-VIDEO) jack, as shown
on the AVC Center below.
2. Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT (AUDIO/R) jack.
3. Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT (AUDIO/L) jack.
4. Press the VID3~VID5 button to view the program from the VCR or laserdisc player. The VIDEO label disappears automatically
after approximately four seconds.
5. Press the ANT button to return to the previous channel.
NOTES: 1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is
played back will be abnormal if the connection is loose.
2. A single VCR can be used for VCR #1 and VCR #2, but note that a VCR cannot record its own video or line output.
(INPUT: 4 in example on page 22) Refer to your VCR operating guide for more information on line input-output
connections.
S-VIDEO R L V
AUDIO
(MONO)
L
R
S-VIDEO
VIDEO
AUDIO
(MONO)
L
R
S-VIDEO
VIDEO
P B
P R
P B
P R
R L
R L
R L
ANALOG INPUT
RGB 1
DIGITAL INPUT
ANT A
TO
CONVERTER
ANT B
AUDIO
(MONO)
L
R
S-VIDEO
VIDEO
MONITOR
OUT
INPUT 4 INPUT 3
Y/VIDEO
AUDIO
L
R
(MONO)
INPUT 2
AUDIO
L
R
(MONO)
INPUT 1 AUDIO
AUDIO
AUDIO
AUDIO OUT
Y
IR
BLASTER
RGB 2 TO MONITOR
Rear Panel of AVC Center
Hitachi Model or
Similar Model
VCR or Laserdisc Player
OUTPUT
Back of VCR or
Laserdisc Player
