Huffy M731321 - Manual (Page 24)

24 ID# M731321 11/05
31
32
36
20
30
36
38
40
A
B
C
D
E
36
36
40
38

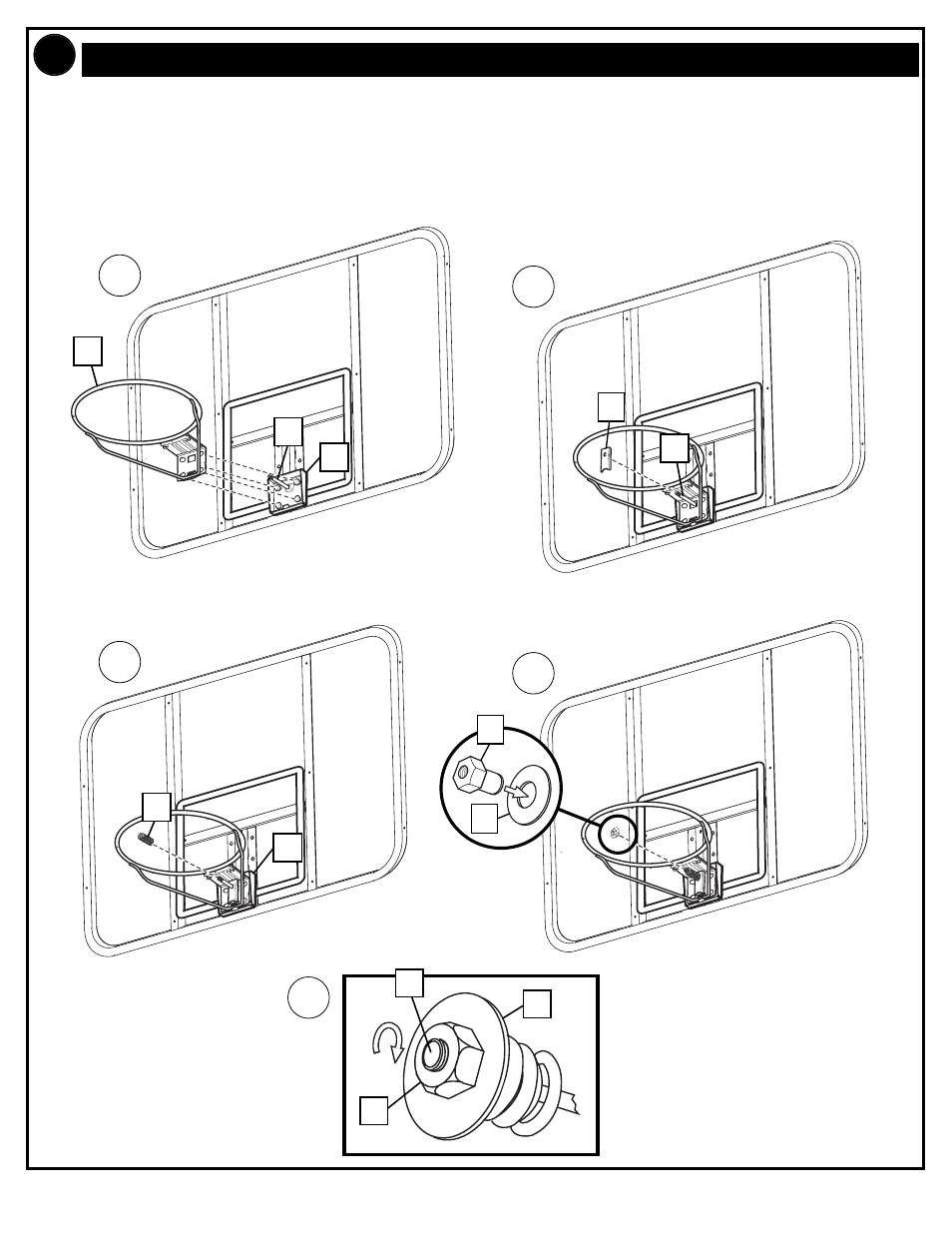

Install Slam Jam Rim to Backboard
A. Fit rim (20) securely into bracket (32) as shown. Allow T-bolt (36) to slip through center hole in rim
(20).
B. Install reinforcement bracket (31) onto T bolt (36) as shown.
C. Install spring (30) onto T bolt (36) as shown.
D. Install special nut (40) and washer (38) onto T bolt (36).
E. Tighten nut (40) until flush with end of T bolt (36).
11.
