Huffy M731321 - Manual (Page 12)

12 ID# M731321 11/05

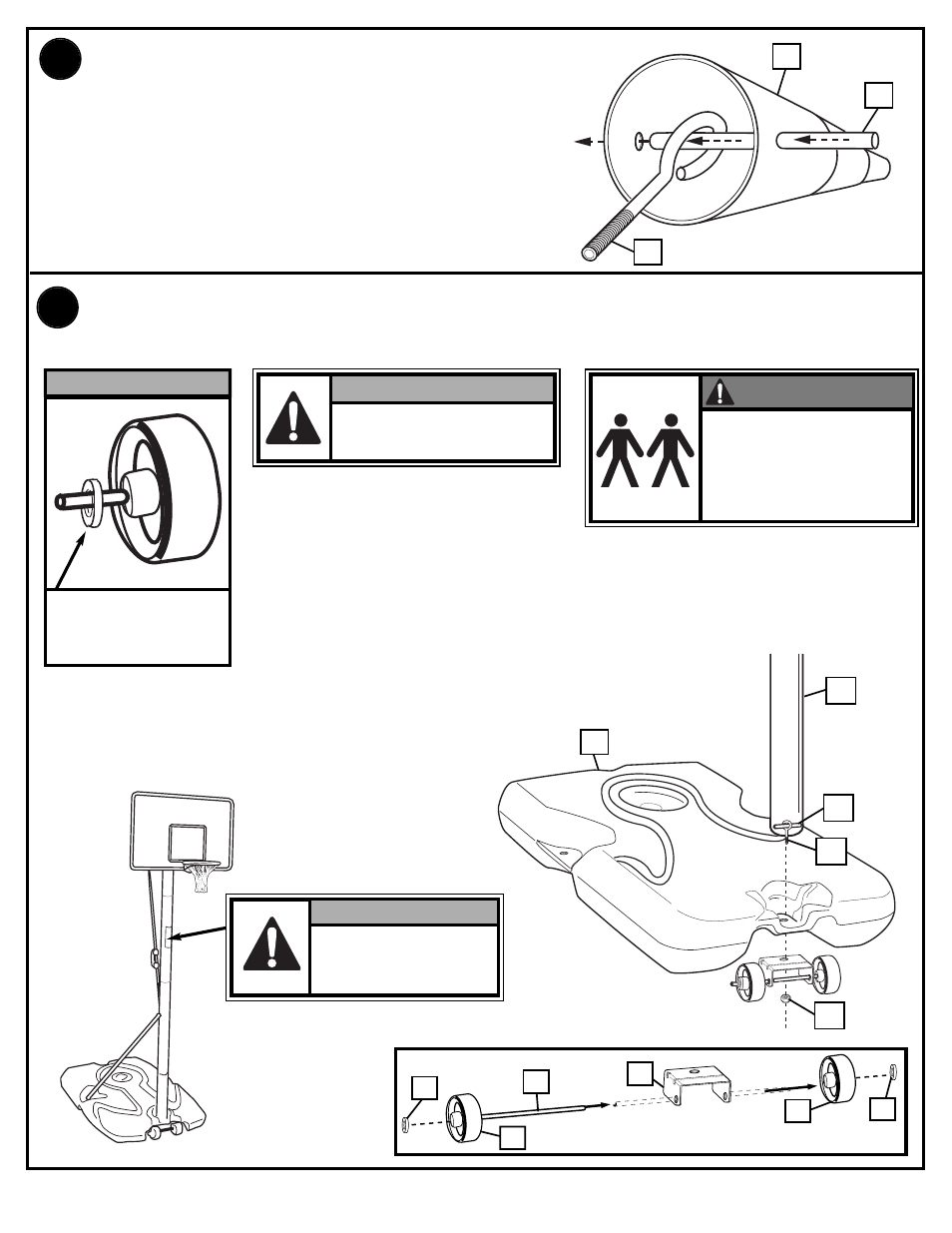

Install wheel axle (2) through wheel carriage (19) and install wheels (3) onto wheel axle (2) with
spacers (17) as shown. Insert pole assembly into tank assembly as shown. Secure bottom pole (6)
section to tank and wheel carriage as shown. A deep socket is recommended.
8
7
6 Install rod (7) through holes in bottom pole section (6)
and eyebolt (8).
2
17
17 3
3
19
5.
4.
9
6
8
7
1
THE SPACER (17) WILL
FIT LOOSELY UNTIL
SECURED INTO THE
CAVITY OF THE BASE.
IMPORTANT!
TWO PEOPLE REQUIRED
FOR THIS PROCEDURE.
FAILURE TO FOLLOW THIS
WARNING COULD RESULT
IN SERIOUS INJURY AND/OR
PROPERTY DAMAGE.
WARNING!
DO NOT OVER
TIGHTEN
IMPORTANT!
IMPORTANT!
The Warning Label
should be facing
towards the front.
