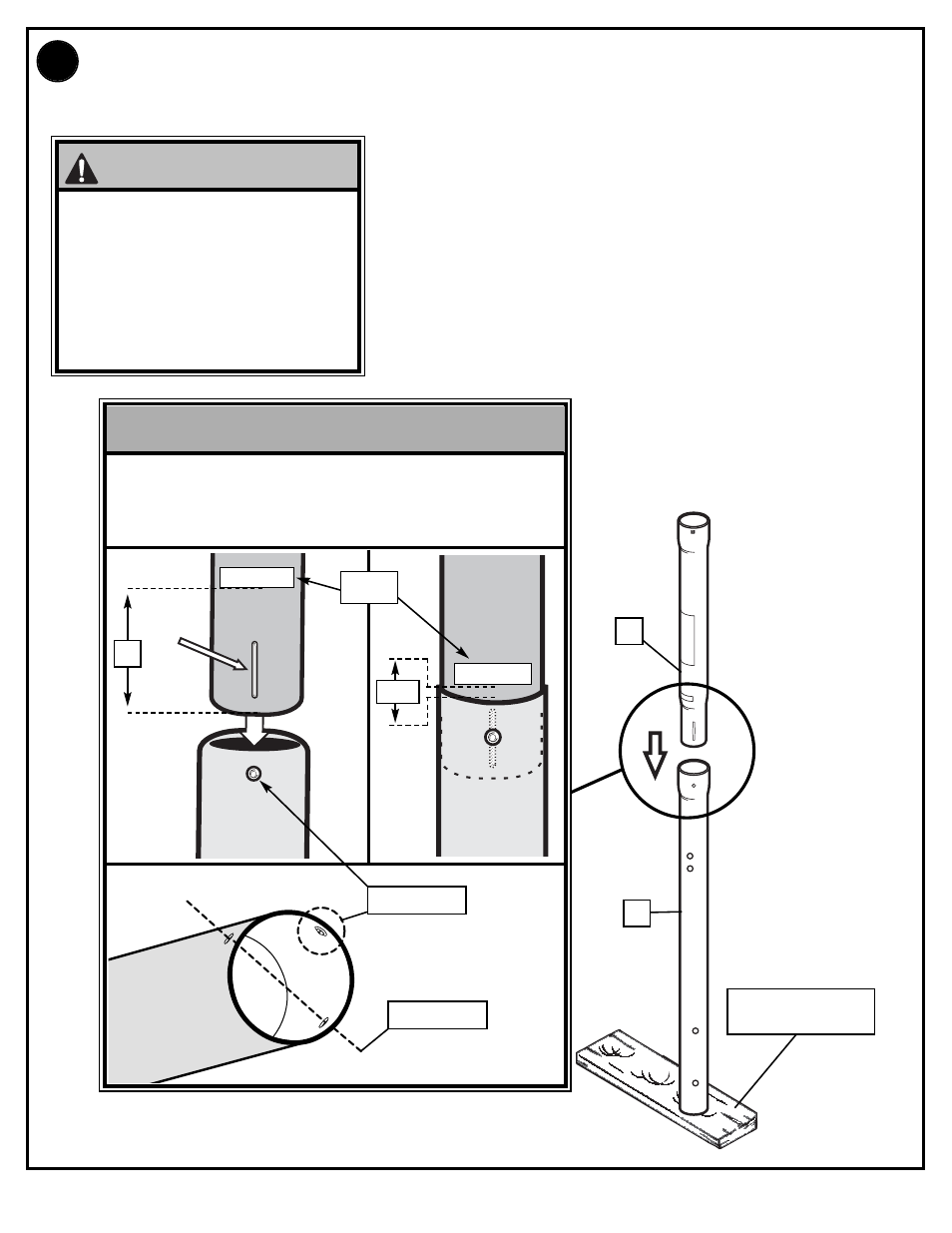

While maintaining alignment, bounce pole top (4) and middle section (5) together as shown until
they no longer move toward identification sticker. Upright assembly.
2.
WOOD SCRAP
(NOT SUPPLIED)
5
4
Align dimple of top pole section (4)
into trough of middle pole section (5)
as shown.
IMPORTANT!
HOLE
DIMPLE
middle pole
THE IDENTIFICATION STICKER IS
LOCATED 5" FROM THE END OF
THE POLE. WHEN PROPERLY
POUNDED TOGETHER, THE POLE
SECTIONS SHOULD HAVE A 3-1/2"
MINIMUM OVERLAP, LEAVING 1-1/2"
BETWEEN THE OVERLAPPING
POLE AND THE IDENTIFICATION
STICKER.
CAUTION!
5"
middle pole
1-1/2"
ID
STICKER
