Using Virtual Media 62
Connecting local Virtual Media
You can connect Virtual Media directly to the console switch using one of the USB ports located on the
console switch. You can have only one CD-type and one mass-storage-type device mapped concurrently.
All USB ports of a local console are assigned to a single KVM session and cannot be mapped
independently.
For more information on Virtual Media, see "Using Virtual Media (on page
58 )."
To launch a local Virtual Media session:

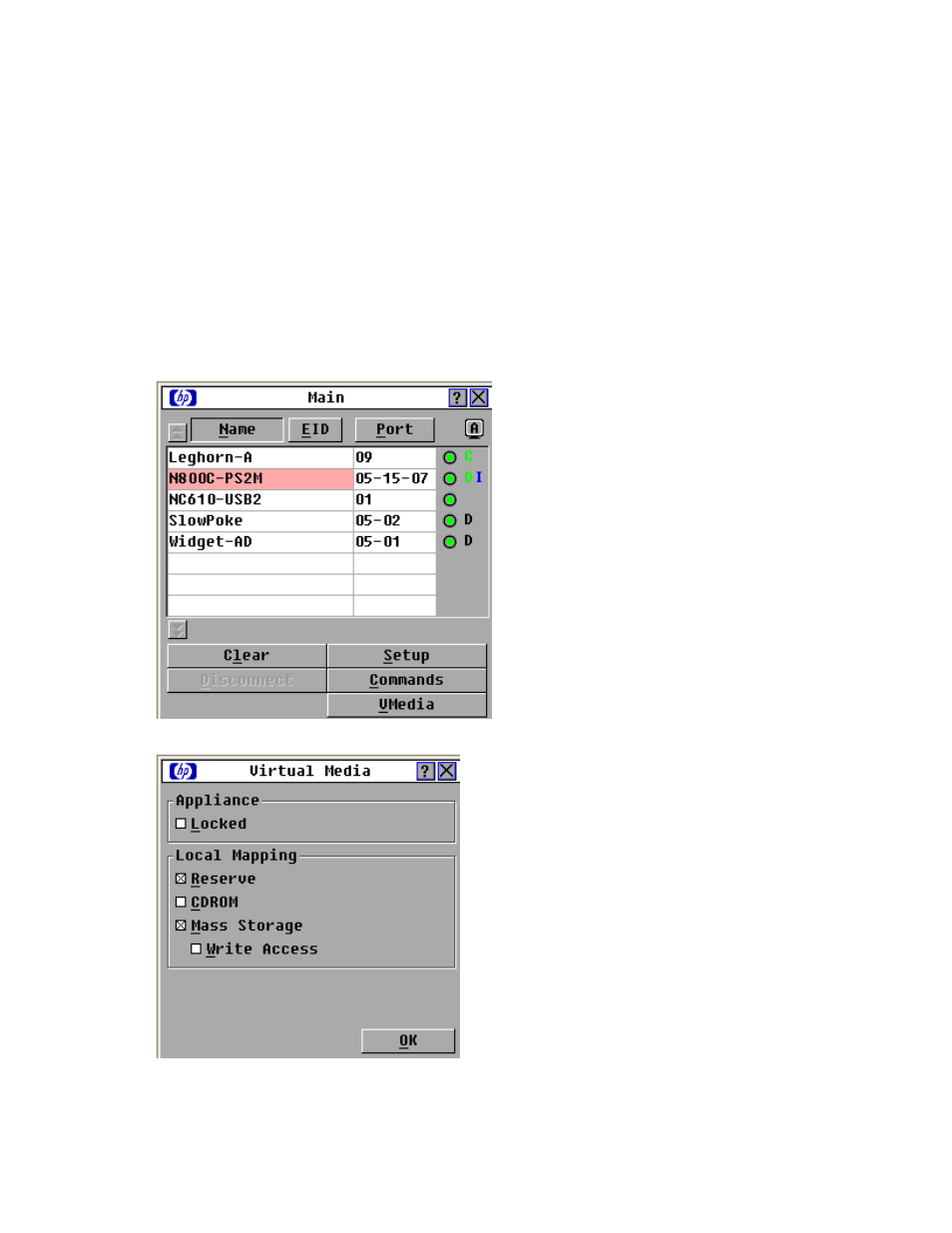

1. From the Main dialog box, establish a KVM connection to the server on which you want to establish
a Virtual Media session.
2. Press Print Scrn to re-open the Main dialog box. The Main dialog box appears.
3. Click VMedia to map a CD or mass storage device. The Virtual Media dialog box appears.
4. Select the Virtual Media options:
