Component identification 59
Item Description
13 DIMM slots (Processor 2 memory banks C and D)
14 HP Smart Array E200i cache module (under hard drive cage)
15 System board thumbscrew
The symbols correspond to the symbols located on the interconnect bays. For more information, see the
HP ProLiant BL465c Server Blade Installation Instructions that ship with the server blade.
Mezzanine connector definitions
Item PCIe
Mezzanine connector 1 x4, Type I mezzanine card only
Mezzanine connector 2 x8, Type 1 or II mezzanine card
A PCIe x4 mezzanine connector supports x8 cards at up to x4 speeds. A PCIe x8 mezzanine connector supports x16
cards at up to x8 speeds.

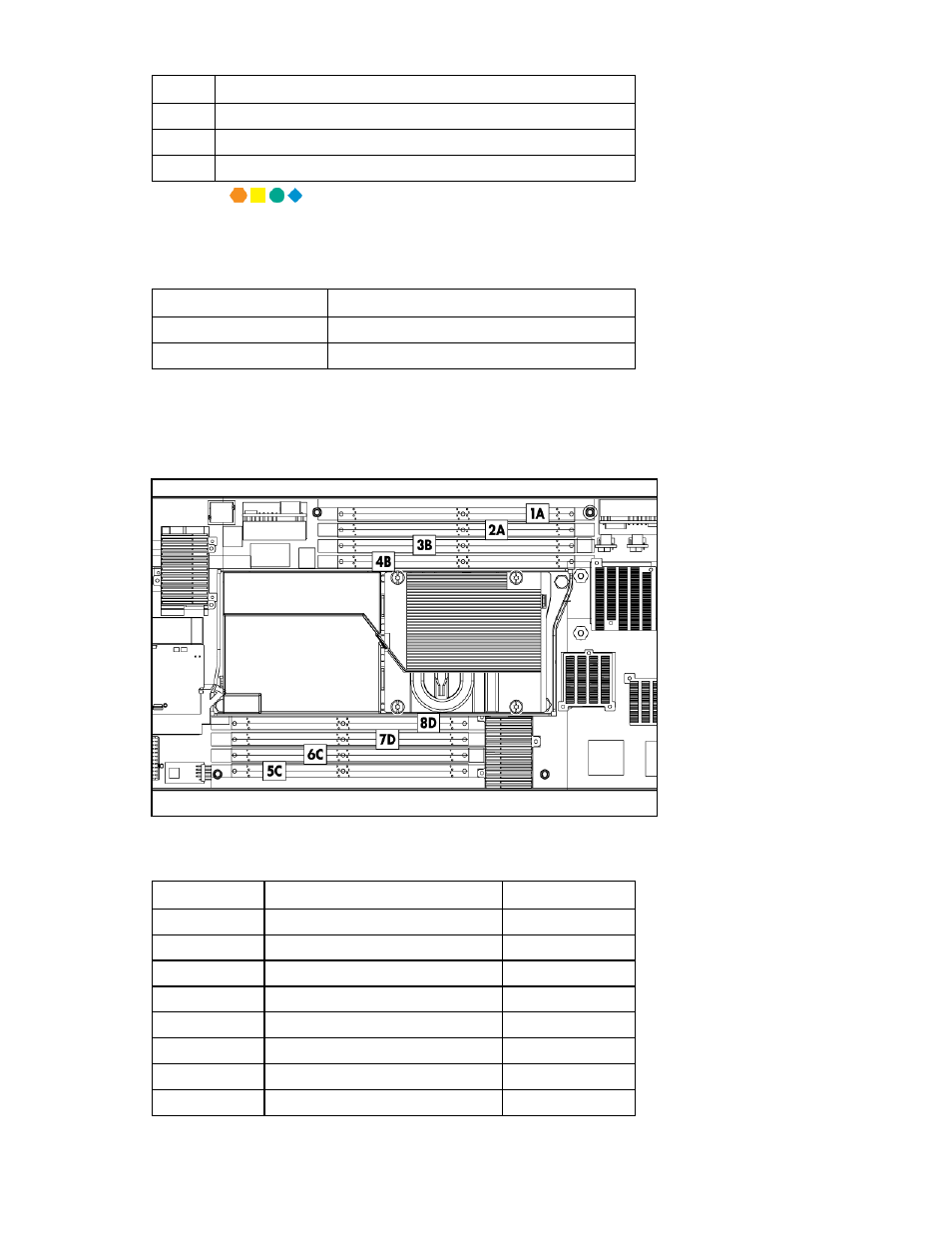

DIMM slot numbering
System maintenance switch
Position Function Default
1* iLO 2 security override Off
2 Configuration lock Off
3 Reserved Off
4 Reserved Off
5* Password disabled Off
6* Reset configuration Off
7 Reserved Off
8 Reserved Off
