Component identification 58
Online/activity
LED (green)
Fault/UID LED
(amber/blue)
Interpretation
Flashing irregularly Amber, flashing
regularly (1 Hz)
The drive is active, but a predictive failure alert has been
received for this drive. Replace the drive as soon as possible.
Flashing irregularly Off The drive is active, and it is operating normally.
Off Steadily amber A critical fault condition has been identified for this drive, and
the controller has placed it offline. Replace the drive as soon as
possible.
Off Amber, flashing
regularly (1 Hz)
A predictive failure alert has been received for this drive.
Replace the drive as soon as possible.
Off Off The drive is offline, a spare, or not configured as part of an
array.

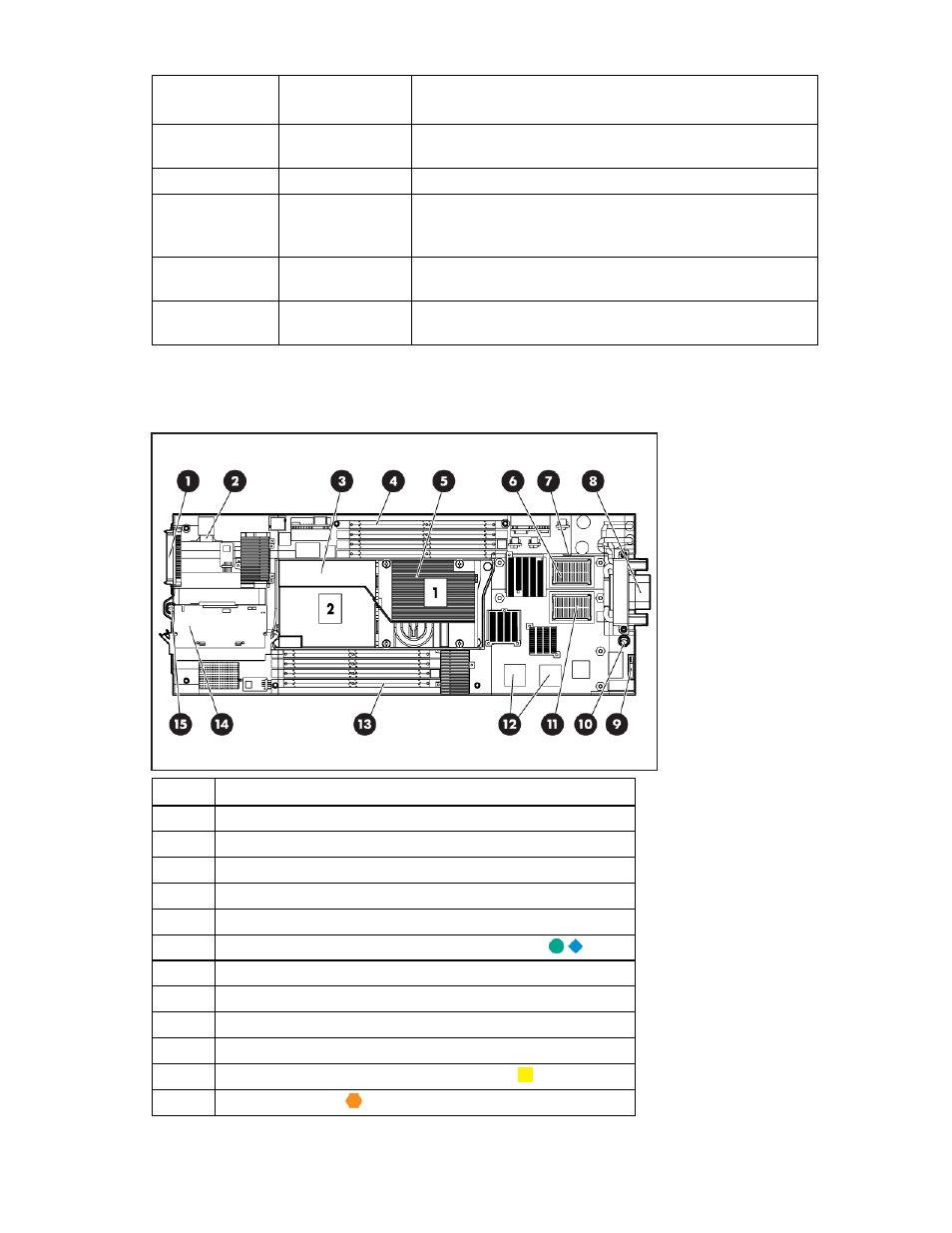

System board components
Item Description
1 Bezel LED connector
2 Internal USB connector (under hard drive cage)
3 Processor socket 2
4 DIMM slots (Processor 1 memory banks A and B)
5 Processor socket 1 (populated)
6 Mezzanine connector 2 (Type I or Type II mezzanine)
7 System maintenance switch (SW1)
8 Enclosure connector
9 Battery
10
System board thumbscrew
11 Mezzanine connector 1 (Type I mezzanine only)
12 Embedded NICs (2)
