Chapter 3 Installation
16
2. Install the two screws that hold the tall, left-hand bracket to the face of the
NetServer chassis (see Figure 3-9).
3. Install the two screws that hold the short, right-hand bracket to the face of
the NetServer chassis (see Figure 3-9).
Recessed Brackets

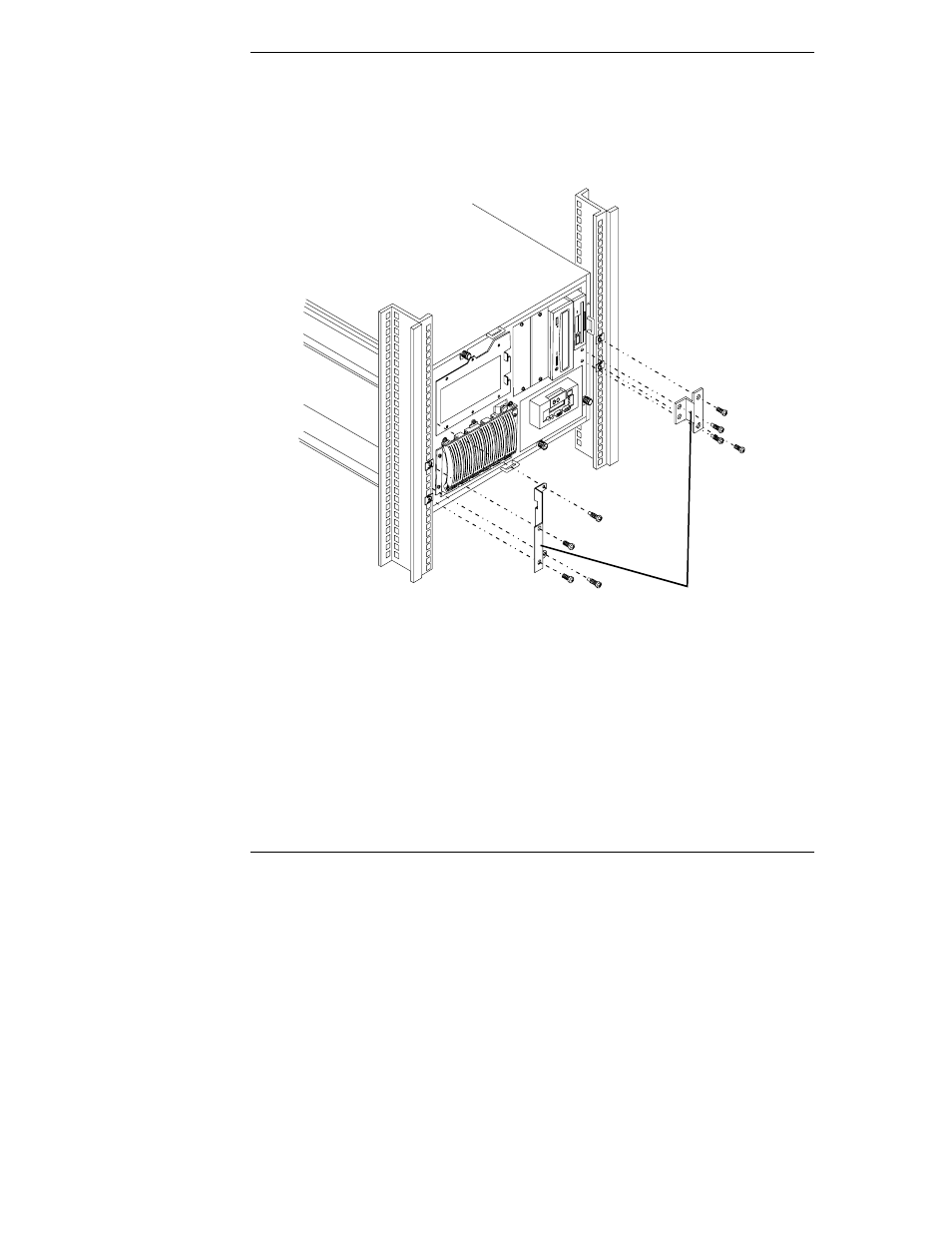

Figure 3-9. Installing the Recessed Mounting Brackets
4. Install two screws into the two holes in the left-hand recessed bracket and
into the two rack nuts (previously installed) on the left column (see
Figure 3-9), and tighten.
5. Install two screws into the two holes in the right-hand recessed bracket
and into the two rack nuts (previously installed) on the right column (see
Figure 3-9), and tighten.
