Installing the recessed mounting brackets – HP LH 3r User Manual
Page 18
Chapter 3
Installation
14
5. Remove the two screws from each of the four handles and remove them
(see Figure 3-7). Keep these handles and screws for later use, in case you
need to remove the NetServer and ship it.

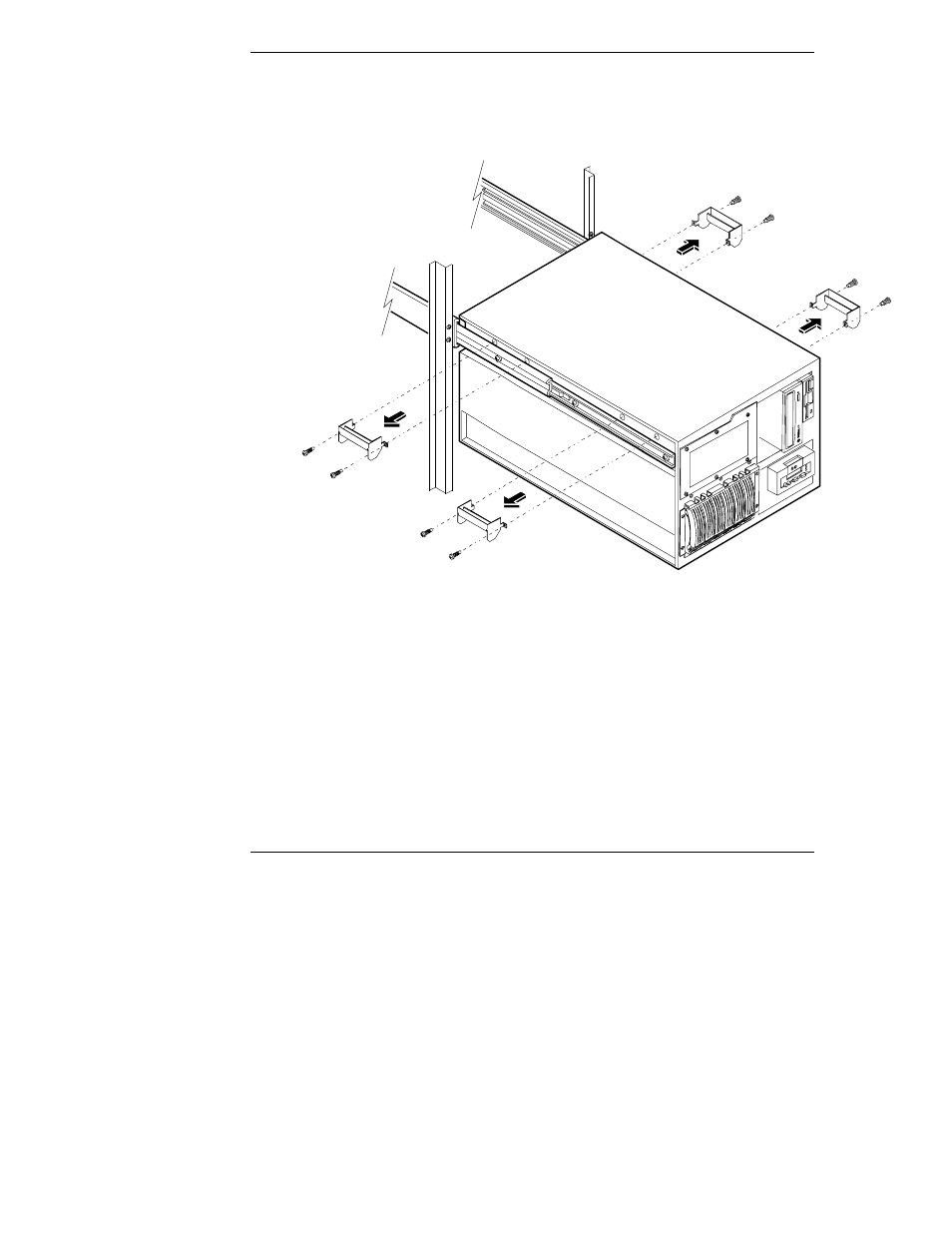

Figure 3-7. Remove Mounting Handles
6. Reinstall power supply modules and hard disk modules removed earlier.
Installing the Recessed Mounting Brackets
The NetServer is held in place (inside the rack enclosure) by two recessed
brackets. These are attached to the face of the NetServer chassis and the two front
rack columns.
