Chapter 3
Installation
10
Mounting the Slides
1. Orient each slide so that the front of the slide attaches to the front column
and the rear attaches to the rear column. This ensures that once installed,
the slides will extend correctly, toward the front of the rack (see Figure 3-3).
NOTE
The slides do not come apart; they are one piece.

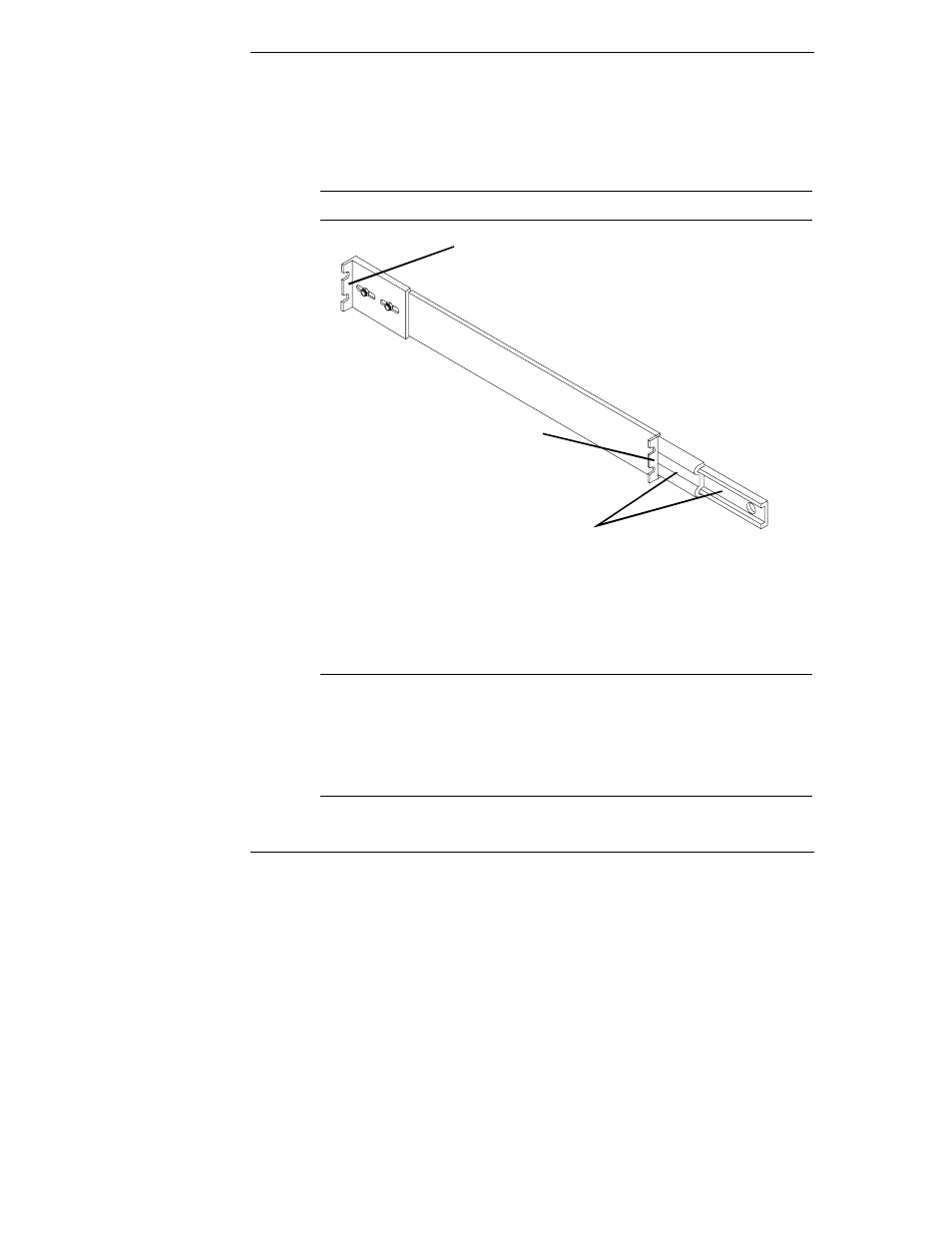

Rear Flange
Front Flange
Extendible Members
Figure 3-3. Slide Components and Orientation
2. Place the mounting flange of the slide between the inside of the column
and the bar nut (see Figure 3-4). Do this at the front and rear of the slide.
3. Press the slide firmly against the columns, lift up against the screws, and
tighten all four screws.
NOTE
It is very important to lift up on the slides prior to tightening
the screws. Tightening the screws without lifting up on the
slides will result in interference between the NetServer and
other equipment in the rack; you may not be able to slide the
NetServer into the rack enclosure after completing the
installation.
4. Repeat for the other slide.
